Home /Products/Variable Frequency Drives VFD/Danfoss 132F0061 Frequency Converter VLT® Micro Drive FC-51(P22K) 22 KW / 30 HP, Three phase 380 - 480 VAC

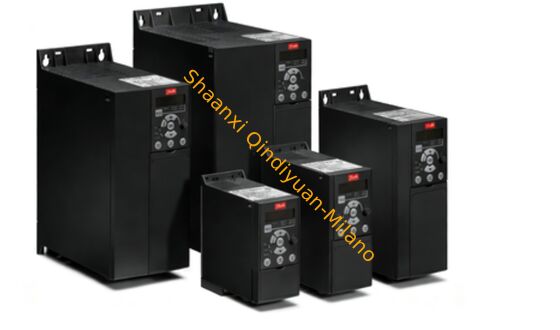

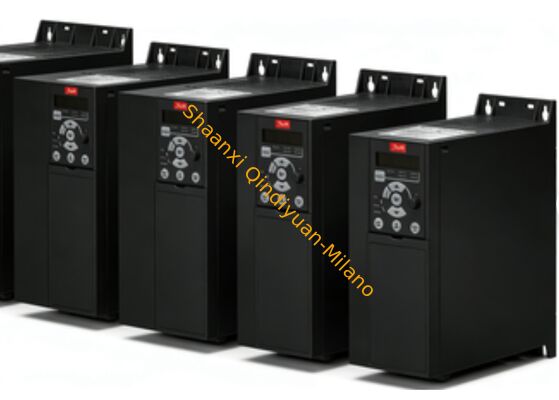

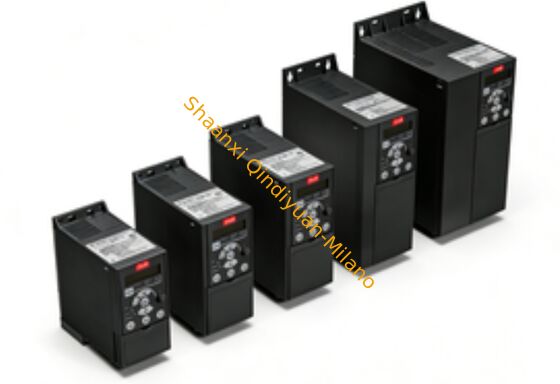

Danfoss 132F0061 Frequency Converter VLT® Micro Drive FC-51(P22K) 22 KW / 30 HP, Three phase 380 - 480 VAC

1
MOQ
Negotiable
Price
Danfoss 132F0061 Frequency Converter VLT® Micro Drive FC-51(P22K) 22 KW / 30 HP, Three phase 380 - 480 VAC
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Danfoss VLT Micro Drive FC-51

,

30 HP frequency converter

,

three phase VFD 480V
Basic Infomation
Place of Origin: China
Brand Name: Danfoss
Model Number: 132F0061
Document: AD397545239678en-000101.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
Danfoss 132F0061 Frequency Converter VLT® Micro Drive FC-51(P22K) 22 KW / 30 HP, Three phase 380 - 480 VAC
Gross Weight: 9.8 Kilogram
Net Weight: 9.5 Kilogram
Volume: 36.3 Liter
EAN: 5702427554474
Technical Specifications
Specification Value
Product Group FC- - VLT® Micro Drive FC-
Micro Drive Series 051 - 51
Power Rating P22K - (P22K) 22 KW / 30 HP
Phase T - Three phase
Mains Voltage 4 - 380 - 480 VAC
Enclosure E20 - (E20) IP20 / Chassis
RFI Filter H3 - (H3) RFI Class A1/B (C1)
Brake - Safe Stop B - Brake chopper
LCP X - No Local Control Panel
Coating PCB C - Coated PCB
Mains Option X - No Mains Option
Adaptation A X - Standard Cable Entries
Adaptation B X - No adaptation
Software Release SXXX - Latest release standard software
Frame Size M5 - M5-FRAME
Product Identification
Typecode Part 1: FC-051P22KT4E20H3BXCXXXSXXX
Model Code: FC-051P22KT4E20H3BXCXXXSXXX
DrivePro Category: Exchange Unit
Compliance & Sourcing
ECCN EU: Y901
ECCN US: 3A999.a
