Home /Products/Variable Frequency Drives VFD/Danfoss 131B8936 Frequency converter Three phase, 380 - 480 VAC, IP55 / Type 12 RFI Filter

Danfoss 131B8936 Frequency converter Three phase, 380 - 480 VAC, IP55 / Type 12 RFI Filter

1
MOQ
Negotiable
Price
Danfoss 131B8936 Frequency converter Three phase, 380 - 480 VAC, IP55 / Type 12 RFI Filter
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Danfoss 131B8936 frequency converter

,

Three phase VFD with RFI filter

,

IP55 rated variable frequency drive
Basic Infomation
Place of Origin: CHINA
Brand Name: Danfoss
Model Number: 131B8936
Document: AB415350026824en-000101.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description

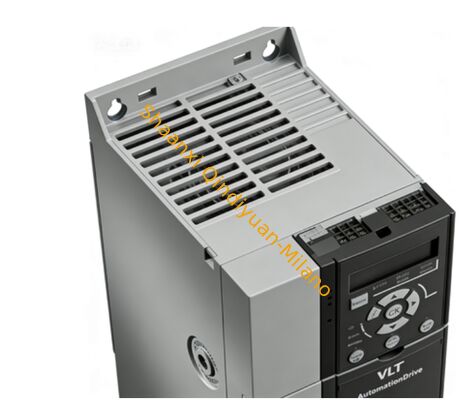

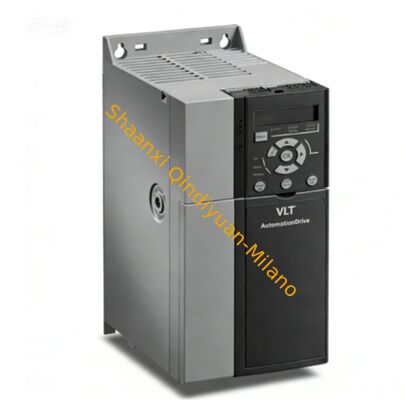

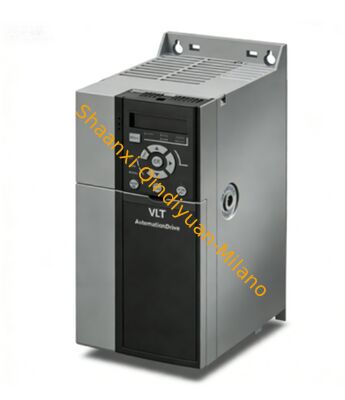

The Danfoss 131B8936 is a robust three-phase frequency converter designed for industrial applications. With a power rating of 4.0 KW (5.0 HP) and operating voltage of 380-480 VAC, this VLT® AQUA Drive features IP55/Type 12 enclosure protection and includes an RFI filter for electromagnetic compatibility.
General Specifications
Gross Weight
11.206 Kilogram
Net Weight
10.59 Kilogram
Volume
39.798 Liter
EAN
5702427379169
Technical Parameters
Core Specifications
Parameter Value
Product Group VLT® AQUA Drive FC-
Series 202
Power Rating 4.0 KW / 5.0 HP
Phase Three phase
Mains Voltage 380 - 480 VAC
Enclosure IP55 / Type 12
RFI Filter RFI Filter
Frame Size A5
Electrical Characteristics
Parameter Normal Overload (NO) Heavy Overload (HO)
Power (KW) 4 4
kVA 6.93
Power Loss (W) 124 124
Continuous Current (A) 10 / 8.2 10 / 8.2
Intermittent Current (A) 11 / 9.02 15 / 12.3
Physical Dimensions
Dimension Value (mm)
Height 420.0
Width 242.0
Depth 200.0
Depth with Option A/B 200.0
Standard Features
Feature Specification
Brake - Safe Stop No brake chopper
LCP Graphical Local Control Panel
Coating PCB Not coated PCB
Software Release Latest release standard software
Software Language Pack Standard Language Pack
Product Identification
Typecode Part 1
FC-202P4K0T4E55H2XGX
Typecode Part 2
XXXSXXXXAXBXCXXXXDX
ECCN EU
Y901
ECCN US
3A999.a
Tag:

Compact Frequency Inverter

Vector Frequency Inverter

Variable Frequency Drive VFD
