Home /Products/Variable Frequency Drives VFD/ABB ACS880-01-246A-3 LV AC industrial wall-mounted single drive, IEC: Pn 132 kW, 246 A, 400 V

ABB ACS880-01-246A-3 LV AC industrial wall-mounted single drive, IEC: Pn 132 kW, 246 A, 400 V

1
MOQ
Negotiable
Price
ABB ACS880-01-246A-3 LV AC industrial wall-mounted single drive, IEC: Pn 132 kW, 246 A, 400 V
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

ABB ACS880 industrial VFD drive

,

wall-mounted single drive 132 kW

,

400V variable frequency drive with warranty
Basic Infomation
Place of Origin: CHINA
Brand Name: ABB
Model Number: ACS880-01-246A-3
Document: acs880 pdf.pdf
Payment & Shipping Terms
Packaging Details: PIECES
Delivery Time: 5-8DAYS
Payment Terms: T/T
Product Description

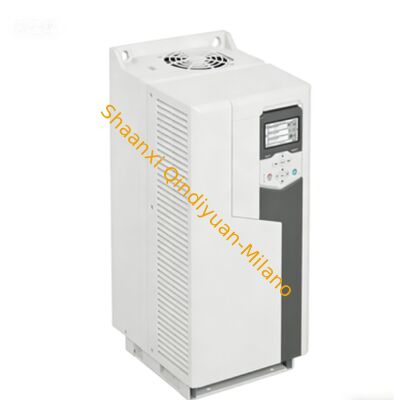

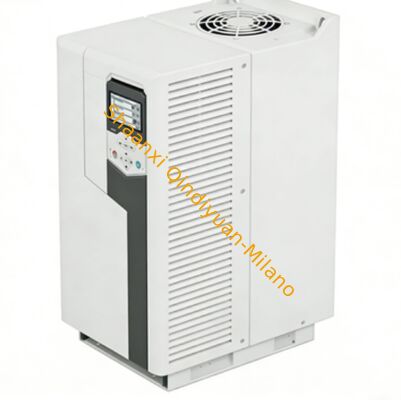

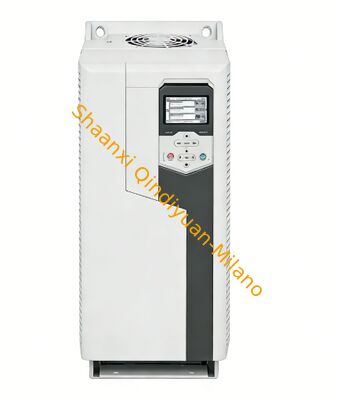

ABB ACS880-01-246A-3 Industrial Drive
LV AC industrial wall-mounted single drive with rated power of 132 kW, 246 A, 400 V
Product Specifications
General Information
Custom Made:
Yes
Minimum Order Quantity:
1 piece
Sales Unit:
Piece
Dimensions
Net Weight:
68.0 kg (149.914 lb)
Net Dimensions (L×H×W):
386 × 965 × 300 mm (15.197 × 37.992 × 11.811 in)
Package Dimensions (L×H×W):
1145 × 654 × 485 mm (45.08 × 25.75 × 19.09 in)
Package Units:
1 case
Technical Specifications
Number of Phases:
3-phase
Protection Rating:
IP21
NEMA Enclosure Type:
Type1
Maximum Operating Height:
4000 m
Operating Humidity:
5...95% RH
Sound Level:
68 dB(A)
Frequency Range:
47.5...63 Hz
Frame Size:
R8
Input Voltage:
380...415 V
Mounting Type:
Wall-mounted
Maximum Temperature:
40 °C
Efficiency Data (IEC 61800-9-2)
Operating Point
Frequency / Current		 Absolute Loss Relative Loss Efficiency
0 Hz / 25%767 W0.4%92.4%
0 Hz / 50%1105 W0.6%94.2%
0 Hz / 100%1952 W1.1%94.7%
50 Hz / 25%826 W0.5%95.9%
50 Hz / 50%1208 W0.7%96.8%
50 Hz / 100%2281 W1.3%97.0%
90 Hz / 50%1432 W0.8%97.9%
90 Hz / 100%3026 W1.8%97.8%
Communication & I/O
Communication Protocols:
CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIsafe, PROFIBUS, PROFINET IO, Other Bus Systems
Hardware Interfaces:
RS-485 (1), USB (1), Other (4)
Analog Inputs/Outputs:
2 / 2
Digital Inputs/Outputs:
6 / 2
Power Specifications
Output Current (Normal Use):
246 A
Output Current (Light Overload):
234 A
Output Current (Heavy Duty):
206 A
Output Power (Normal Use):
132 kW
Output Power (Light Overload):
132 kW
Output Power (Heavy Duty):
110 kW
Power Consumption (@Pcons):
3026 W
Apparent Output Power:
170 kVA
Efficiency Level:
IE2
Standby Loss:
52 W
Included Components
Control unit, PC connection
Battery Information
Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g
Tag:

Compact Frequency Inverter

Vector Frequency Inverter

Variable Frequency Drive VFD
