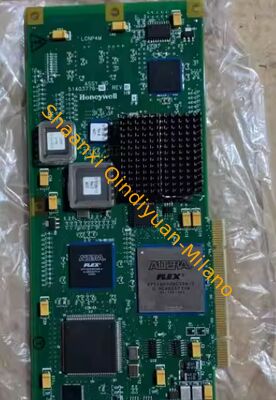

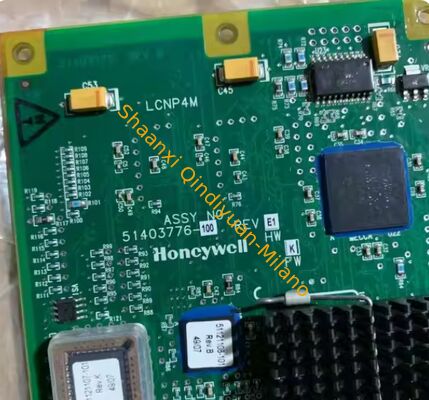

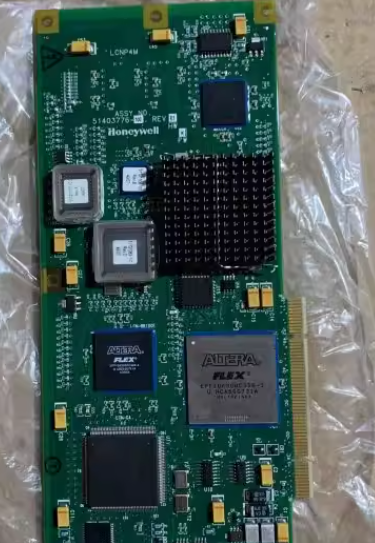

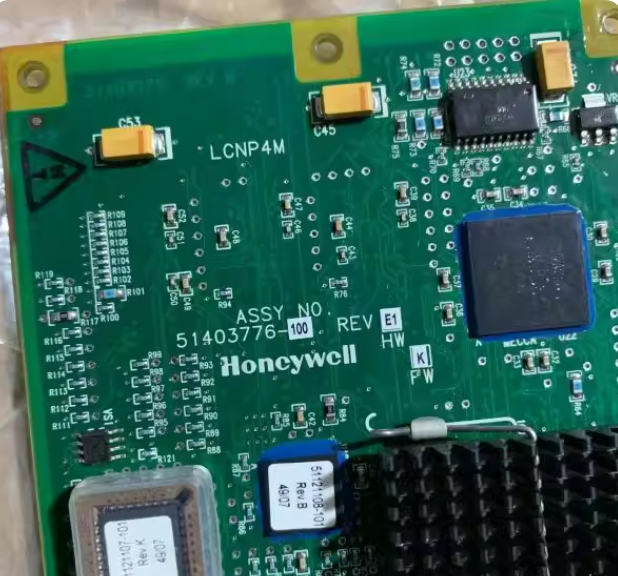

16 Channel Analog Input Communication Card Module Honeywell 51403776-100

1 pcs
MOQ
Negotiable
Price
16 Channel Analog Input Communication Card Module Honeywell 51403776-100
Features Gallery Product Description Chat Now
Features
Specifications
Supportedindustries: Oil & Gas, Chemical, Power Generation, Manufacturing
Securityfeatures: Role-based Access Control, Encryption
Architecture: Distributed, Modular
Datalogging: Comprehensive Data Historian And Logging
Redundancy: Yes, Supports Redundant Controllers And Communication Paths
Integrationcapability: Integrates With SCADA, PLC, And MES Systems
Function: Automated Control Of Industrial Processes
Realtimeprocessing: Yes, Real-time Data Acquisition And Control
Userinterface: Graphical Human-Machine Interface (HMI)
Maintenance: Remote Diagnostics And Predictive Maintenance Support
Scalability: High, Supports Expansion
Communicationprotocol: Supports Multiple Protocols (e.g., Ethernet/IP, Modbus, Profibus)
Alarmmanagement: Advanced Alarm And Event Management
Controltype: Closed-loop Control
Productname: Distributed Control System (DCS)
Highlight:

16 Channel Communication Card

,

Communication Card Module

,

51403776-100
Basic Infomation
Brand Name: Honeywell
Certification: Brand new original
Model Number: 51403776-100
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description
51403776-100 Honeywell Communication Card Module
Core Technical Specifications
Model 51403776-100
Manufacturer Honeywell
Type 16-Channel Analog Input Module (AI)
Applicable Systems Experion® PKS C300 Controller
Input Channels 16 Independent 4–20mA (Active/Passive)
Protocol Supports HART
Accuracy ±0.1% (Full Scale)
Isolation ≥500V DC (Channel-to-Channel/Channel-to-Ground)
Update Cycle Fastest 100ms (Configurable)
Communication I/O Link → C300 → FTE Network
Operating Temperature 0°C～+60°C
Mounting C300 I/O Rack, Hot-Swap
Protection IP20 (Control Room Environment)
Key Features and Benefits
  • High-Density Integration: 16 channels per slot, optimizing rack space utilization
  • High-Precision Acquisition: ±0.1% full-scale accuracy, compatible with Advanced Process Control (APC)
  • Native HART Support: Directly reads transmitter diagnostic information without multiplexers
  • Superior Anti-Interference: Channel-level isolation suppresses common-mode interference and ground loop noise
  • High Availability: Supports hot-swapping and online diagnostics with FTE redundant networks
Typical Industrial Applications
  • Refining/Chemical: Tower bottom temperature, feed flow rate, and pressure acquisition
  • Power Generation: Boiler drum water level monitoring and denitrification system parameters
  • Pharmaceutical/Food: Level control of fermenters, reactors, and storage tanks
  • Oil & Gas: Pressure/flow monitoring of LNG receiving stations and long-distance pipelines
Compatibility and Replacements
Compatible Base: 51403760-100 (IOTA Base)
Same Series Output: 51403780-100 (16-channel AO)
Replacement/Compatibility: 51403777-100 (8-channel high-voltage AI)
Installation and Maintenance Guidelines
Critical Installation Notes:
• Requires dedicated IOTA docking station (e.g., 51403760-100)
• Power off recommended for initial installation
• Hot-swapping requires setting to Maintenance Mode first
• Channel status (open circuit/over-range) can be diagnosed online using Experion PKS engineer station
