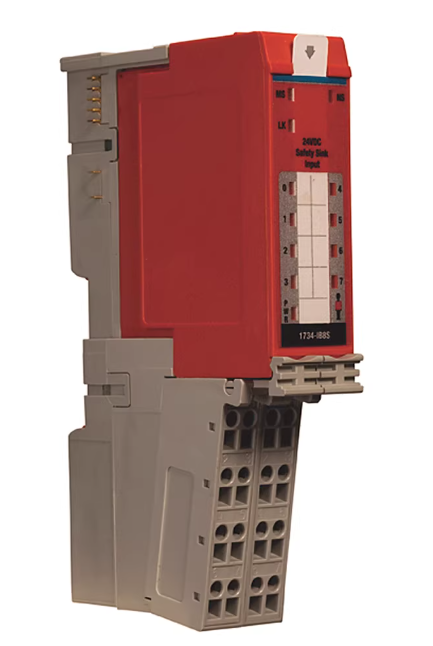

Allen Bradley AB 1734-IB8S POINT Guard I/O Safety Digital Input Module

1PCS
MOQ
Negotiable
Price
Allen Bradley AB 1734-IB8S POINT Guard I/O Safety Digital Input Module
Features Gallery Product Description Chat Now
Features
Specifications
ScanTime: Typically 1ms To 10ms
Color: Normal
Display: Optional LCD Or LED Indicators
Model: CP1L-M40DR-A
Points: 40 (24DI+16DO)
Supply Voltage Type: AC
NumberOfI/OPoints: From A Few To Several Thousand
PowerSupply: 24V DC Or 110/220V AC
ProcessorType: Microprocessor-based
Output Method: Transistor
ProgrammingLanguage: Ladder Logic, Function Block, Structured Text
MountingType: DIN Rail Or Panel Mount
InputType: Digital And Analog
Actual Price: Negotiabled
MemoryCapacity: Typically 1KB To 1MB
Highlight:

AB 1734-IB8S

,

Allen Bradley 1734-IB8S

,

Safety Digital Input Module
Basic Infomation
Place of Origin: USA
Brand Name: Allen-Bradley(AB)
Model Number: 1734-IB8S
Document: 1734-IB8S.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 20PCS 1WEEK
Product Description
Technical Parameters
Parameter Value
Model Number 1734-IB8S
Product Name Allen-Bradley POINT Guard I/O Safety Digital Input Module
Product Series POINT Guard I/O
Product Type Safety Digital Input Module
Input Channels 8 (single or dual-channel safety configuration)
Input Type Current Sinking (PNP)
Nominal Input Voltage 24 V DC
Operating Voltage Range 19.2 V DC to 28.8 V DC
Input Current (ON State) Typical: 4 mA @ 24 V DC; Min: 3.3 mA; Max: 5 mA
Input Current (OFF State) Max: 1.3 mA
Input Impedance Approx. 6 kΩ @ 24 V DC
Response Time ON to OFF: Max 16.2 ms; OFF to ON: Adjustable 0-126 ms (6 ms increments)
Input Filter Time OFF to ON: 0-126 ms (6 ms increments); ON to OFF: 0-126 ms (6 ms increments)
Test Outputs 4 pulse current sourcing outputs (for short circuit detection)
Safety Ratings SIL 3, Performance Level e (PL e), Category 4 (dual-channel mode); SIL 2, PL d, Category 2 (single-channel mode)
Isolation Continuous: 50 V DC between field side and system; Tested: 500 V AC for 60 seconds
POINTBus Current Max: 175 mA
Power Bus Current (No Load) Max: 25 mA
Power Dissipation Max: 3.0 W
Module Dimensions (HxWxD) 77 mm × 25 mm × 55 mm (3.03 in × 0.98 in × 2.17 in) (without terminal block)
Weight Approx. 62.4 g (2.2 oz)
Mounting 35 mm DIN Rail (EN 50022 compliant)
Terminal Blocks Compatible 1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS, 1734-TOP3, 1734-TOP3S
Operating Temperature -20°C to 55°C (-4°F to 131°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Relative Humidity 5% to 95% (non-condensing)
LED Indicators 1 yellow lock status, 1 green/yellow power status, 8 I/O channel status
Certifications UL 508, CSA C22.2 No. 142, IEC 61131-2, TUV General Safety, IECEx Scheme
Backplane Compatibility POINT I/O Backplane (1734-AENTR/1734-AENT with firmware 9.0 or later)
Compatible Controllers GuardLogix, SmartGuard 600, Compact GuardLogix, GuardPLC
Mission Time 20 years
