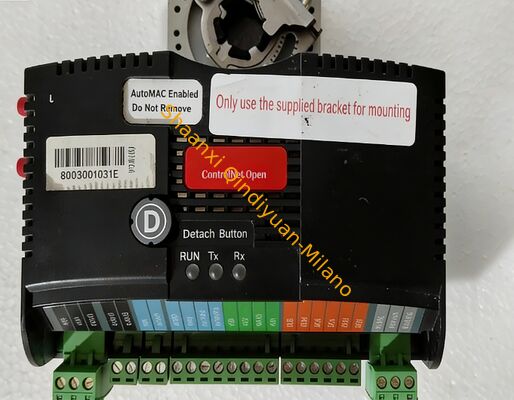

Honeywell CPO-VAV2A DCS Input Module With 32 Bit Technology

1 pcs
MOQ
Negotiable
Price
Honeywell CPO-VAV2A DCS Input Module With 32 Bit Technology
Features Gallery Product Description Chat Now
Features
Specifications
Security: Role-based Access Control And Cybersecurity Features
Architecture: Distributed With Multiple Controllers And Operator Stations
Customization: Configurable Control Strategies And Logic Programming
Userinterface: Graphical Human-Machine Interface (HMI)
Datalogging: Historical Data Storage And Trending Capabilities
Function: Automated Control Of Industrial Processes
Realtimecontrol: Provides Real-time Process Monitoring And Control
Reliability: High Availability With Redundancy Features
Communicationprotocol: Supports Multiple Protocols Such As Modbus, Profibus, Ethernet/IP
Industryapplications: Used In Oil & Gas, Chemical, Power Generation, Water Treatment
Maintenance: Remote Diagnostics And Predictive Maintenance Support
Scalability: Supports Small To Large-scale Industrial Plants
Alarmmanagement: Advanced Alarm Detection And Notification System
Productname: Distributed Control System (DCS)
Integration: Integrates With PLCs, SCADA, And Other Automation Systems
Highlight:

Honeywell CPO-VAV2A

,

DCS Input Module

,

Input Module 32 Bit
Basic Infomation
Brand Name: Honeywell
Certification: Brand new original
Model Number: CPO-VAV2A
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description

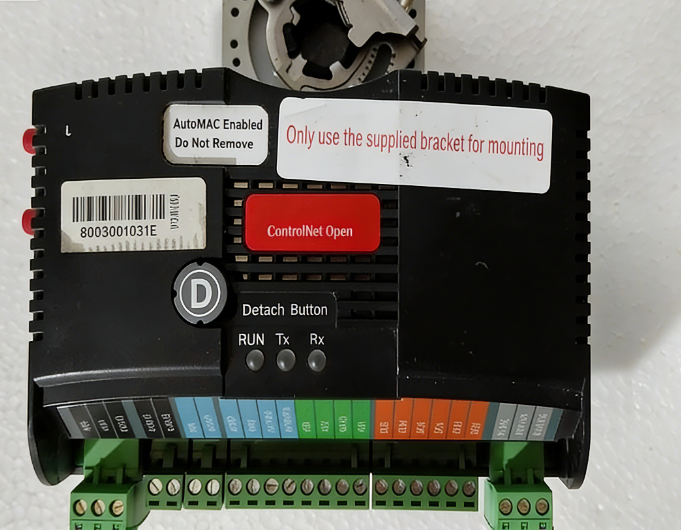

Honeywell CPO-VAV2A Input Module
The CPO-VAV2A-US firmware is a native BACnet series controller based on the B-AAC BACnet protocol. It utilizes 32-bit technology for superior performance and features a direct-coupled damper actuator with clutch mechanism. Supporting standard VAV applications and custom programming, this controller includes Sylk communication capabilities and a built-in real-time clock. It connects to BACnet MS-TP channels of the ComfortPoint Open Plant Controller and integrates seamlessly with ComfortPoint Open Manager and Enterprise Buildings Integrator (EBI).
Features and Benefits
  • Freely Programmable Native BACnet Controller - Fully programmable BACnet controller for flexible system integration
  • Comprehensive Onboard I/O - Features 4 universal inputs, 3 analog outputs, and 6 digital outputs (2 reserved for internal actuators) with integrated airflow sensor
  • Sylk® Communication Port - Two-wire polarity-insensitive bus interface for connecting Sylk® compatible devices

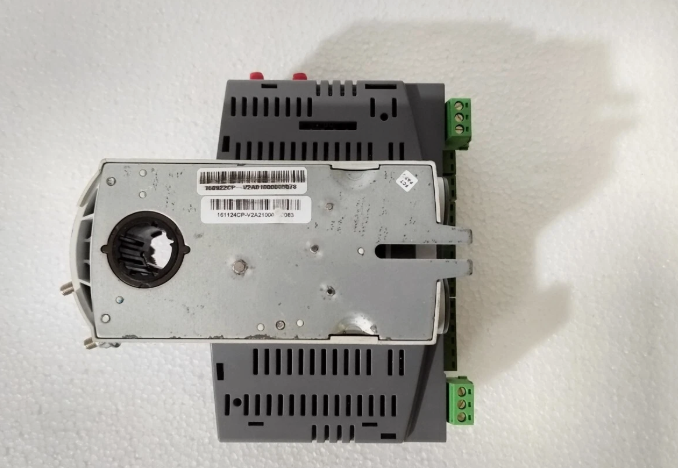

  • Integrated Actuator - 60 Series actuator with 5 Nm torque, 95-degree stroke, and 110/90 second timing (50/60 Hz). Includes clutch mechanism for manual damper operation without power or tools. Supports round (8-16mm) and square (6-13mm) shafts with maximum 35 dBA noise level
  • VAV Application Support - Pre-loaded VAV applications available via ComfortPoint Open Studio with customizable standby point programming
  • Programming and Balancing - Programmable through ComfortPoint Open Studio with online balancing via ComfortPoint Open Online for BACnet MSTP device discovery
  • Simplified Installation - Built-in BACnet router eliminates need for additional routing hardware. Compatible with CPO-PC-6A, CP-IPC, and CP-Core BACnet router systems
Certifications and Compliance
CE Certified - LVD Directive 2006/95/EC (EN 60730-1, EN 60730-2-14)
CE Certified - EMC Directive 2004/108/EC (EN 60730-1, EN 60730-2-9, EN 60730-2-14)
BTL Listed
UL 916 Compliant
FCC Part 15, Sub-Part B, Class B
ICES-003 Certified
UL2043 Compliant - Ventilation duct standards (no additional enclosure required)
UUKL Smoke Control Applications
