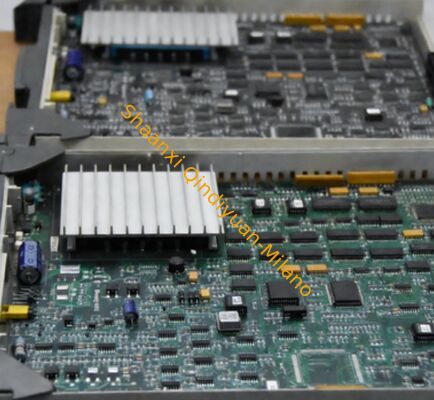

Honeywell CC-PCNT02 Controller Module With Gigabit Ethernet

1 pcs
MOQ
Negotiable
Price
Honeywell CC-PCNT02 Controller Module With Gigabit Ethernet
Features Gallery Product Description Chat Now
Features
Specifications
Reliability: Redundant Components For High Availability
Applicationindustries: Oil & Gas, Chemical, Power Generation, Water Treatment, Manufacturing
Integrationcapability: Integrates With SCADA, MES, ERP Systems
Function: Automated Control Of Industrial Processes
Maintenance: Remote Diagnostics And Online Maintenance
Dataacquisition: Continuous Data Collection From Sensors And Devices
Securityfeatures: Role-based Access Control, Encryption, Audit Trails
Productname: Distributed Control System (DCS)
Communicationprotocol: Supports Multiple Protocols Such As Ethernet/IP, Modbus, Profibus
Programminglanguage: Supports IEC 61131-3 Languages (Ladder Logic, Function Block, Etc.)
Realtimecontrol: Yes, Provides Real-time Process Control
Architecture: Distributed, Modular
Scalability: High, Supports Expansion From Small To Large Systems
Userinterface: Graphical Human-Machine Interface (HMI)
Alarmmanagement: Advanced Alarm Detection And Notification
Highlight:

CC-PCNT02

,

Honeywell Controller Module

,

Controller Module Gigabit Ethernet
Basic Infomation
Brand Name: Honeywell
Certification: Brand new original
Model Number: CC‑PCNT02
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000
Product Description
CC-PCNT02 Honeywell Controller Module
Basic Information
Brand Honeywell
Model CC-PCNT02
Part Number 51454551-275
Type C300 Controller Enhanced Processor (CPU)
Compatible System Experion PKS C300 Controller Platform
Product Status In Production (Active), Mainstream Supply
Power Supply 24 VDC Rack Backplane Power Supply (24 VDC @ 320 mA)
Installation C300 Controller Rack, Rack Mount
Dimensions 19.1 * 18.8 * 6.5 cm (W * H * D)
Weight Approx. 0.45 kg
Core Technical Specifications
Hardware Specifications
Processor 32-bit PowerPC architecture, 1.2 GHz (100% performance improvement over CC-PCNT01)
Memory SDRAM: 256 MB (ECC error checking, 4% improvement over CC-PCNT01)
Flash: 32 MB (Program/Configuration storage, 4x faster than CC-PCNT01)
Power Consumption ≤ 22 W
Built-in Battery Lithium battery, standard battery life 144 hours (6 days), ensuring data integrity even in power outages
Protection Conformal coating, adaptable to harsh industrial environments
Environment and Reliability
Operating Temperature 0℃ ～ +60℃
Storage Temperature -40℃ ～ +85℃
Humidity 5%–95% (non-condensing)
Explosion-proof Certification Class I, Div. 2; CE, UL, FCC Class A
MTBF Industrial-grade high-reliability design, meeting long-term continuous operation requirements
Redundancy Supports 1:1 hot standby redundancy, failover time < 50 ms
Communication Interface (Dual Redundancy Design)
Ethernet Dual redundant 10/100/1000 Mbps Gigabit Ethernet (FTE fault-tolerant Ethernet)
ControlNet Dual redundant ControlNet ports for remote connection I/O (RIOM-A)
I/O Link Dual I/O Link buses, connecting to local C-series I/O modules
EIM Support Supports Enhanced Integrated Module (EIM), extending advanced communication and functions
Protocol Compatibility Modbus TCP/IP, OPC UA, Profinet, HART, Foundation Fieldbus, etc.
Core Functions and Features
High-Performance Deterministic Control
Based on the Control Execution Environment (CEE) engine, millisecond-level control response
  • Supports complex algorithms such as PID, cascading, logic interlocking, batch control (ISA S88), and model predictive control (MPC)
  • Built-in Profit®Loop advanced control algorithm, improving control accuracy and stability
  • Supports custom algorithm modules (CAB) to meet special process requirements
  • Control loop capacity increased by 50%+ compared to CC-PCNT01, capable of managing large-scale I/O points
High-Reliability Redundancy Architecture
1:1 hot standby redundancy, availability > 99.999%, ensuring uninterrupted production
  • All communication links (Ethernet, ControlNet) are dual-redundant; single-point failures do not affect the system
  • Module status LEDs (running, communication, fault, redundancy) provide intuitive monitoring of system status
  • Supports hot-swapping; online module replacement does not affect operation, facilitating maintenance
Advanced Communication and Integration
Gigabit Ethernet + FTE fault-tolerant technology; network switching time is approximately 1 second (traditional dual-network requires 20-30 seconds)
  • Compatible with local I/O (CIOM-A) and remote I/O (RIOM-A), allowing for flexible expansion
  • Supports GPS clock synchronization, ensuring unified time across the plant
  • Seamlessly integrates with Experion PKS software (Control Builder) for efficient configuration and debugging
  • Can be networked with older C200 systems (TK-PRS021) to protect existing investments
Diagnostics and Maintenance
  • Comprehensive online diagnostics: real-time monitoring of CPU, memory, communication links, I/O modules, and battery status
  • Self-diagnosis and alarms for rapid problem location
  • Configuration files can be backed up and restored online, simplifying system maintenance
