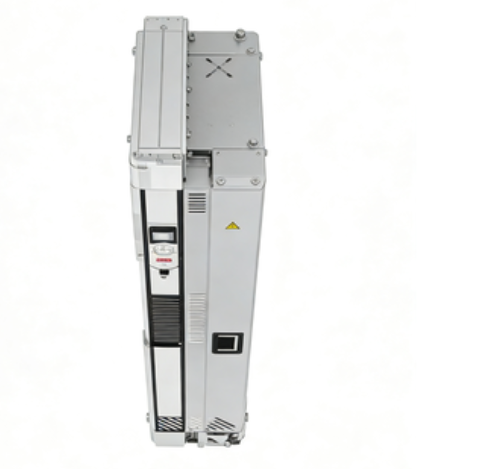

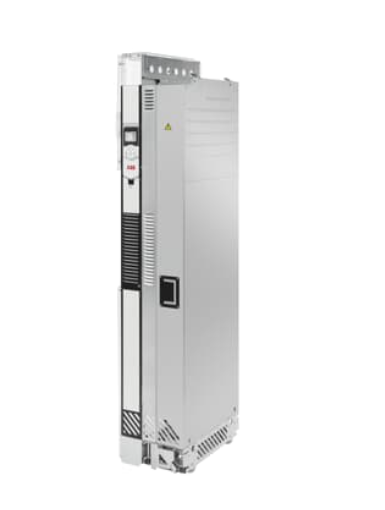

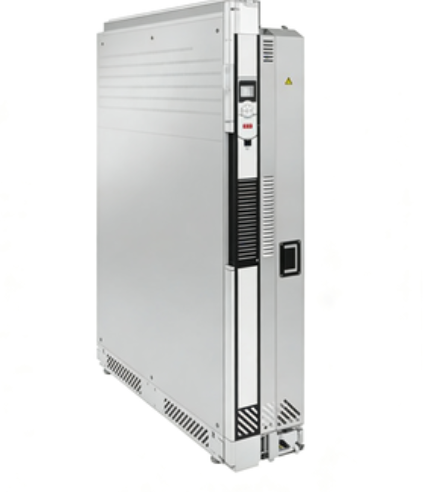

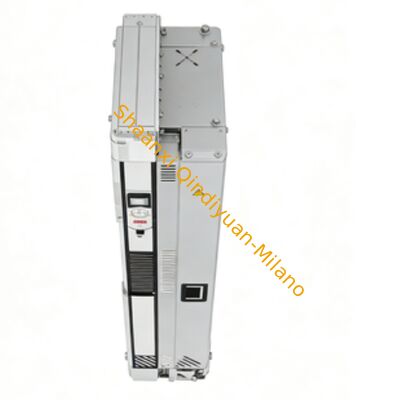

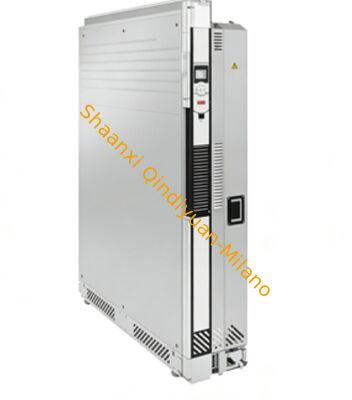

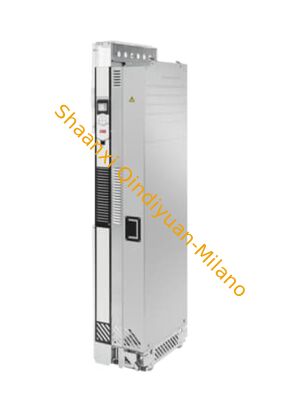

ABB ACS880-07-0293A-3 Panel Mounted Single Drive Frequency Converter 160kW/293A

1
MOQ
Negotiable
Price
ABB ACS880-07-0293A-3 Panel Mounted Single Drive Frequency Converter 160kW/293A
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

ABB ACS880-07-0293A-3

,

Single Drive Frequency Converter

,

Panel Mounted Frequency Converter
Basic Infomation
Place of Origin: china
Brand Name: ABB
Model Number: ACS880-07-0293A-3
Document: acs880 pdf.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
ABB ACS880-07-0293A-3 Frequency Converter
Panel-mounted single-drive frequency converter 160kW/293A
Ordering Information
Customs Tariff Number: 85044087
HS Code: 850440
Invoice Description: ACS880-07-0293A-3 PN: 160 kW, IN: 293 A
Made To Order: Yes
Minimum Order Quantity: 1 piece
Selling Unit: piece
Dimensions & Weight
Product Dimensions
Net Weight: 265 kg (584 lb)
Depth/Length: 673 mm (26.496 in)
Height: 2145 mm (84.449 in)
Width: 430 mm (16.929 in)
Package Dimensions
Depth/Length: 1100 mm (43.307 in)
Height: 2385 mm (93.898 in)
Width: 1144 mm (45.039 in)
Technical Specifications
Electrical Characteristics
Number of Phases: 3-phase
Input Voltage: 380 ... 415 V
Frequency: 48 ... 63 Hz
Power Factor: 0.98
Frame Size: R8
Output Performance
Output Power (Normal Use): 160 kW
Output Power (Light-Overload): 160 kW
Output Power (Heavy-Duty): 132 kW
Output Current (Normal Use): 293 A
Output Current (Light-Overload): 278 A
Output Current (Heavy-Duty): 246 A
Apparent Power Output: 203 kV·A
Environmental Ratings
Degree of Protection: IP22
Enclosure Type NEMA: Type1
Altitude: 1000 m
Operating Humidity: 5 ... 95% RH
Operating Temperature: 0 ... 40 °C
Sound Level: 65 dB(A)
Efficiency Data
Frequency / Current Absolute Loss Efficiency Relative Loss
0/25 %1090 W91.0 %0.5 %
0/50 %1447 W93.6 %0.7 %
0/100 %2303 W94.8 %1.1 %
50/25 %1168 W95.2 %0.6 %
50/50 %1572 W96.6 %0.8 %
50/100 %2767 W96.9 %1.4 %
90/50 %1885 W97.7 %0.9 %
90/100 %3783 W97.6 %1.9 %
Communication & Interfaces
Communication Protocols:
  • CAN
  • DeviceNet
  • EtherNet/IP
  • MODBUS
  • Other Bus Systems
  • PROFIsafe
  • PROFIBUS
  • PROFINET IO
  • TCP/IP
Hardware Interfaces:
RS-485: 1
USB: 1
Analog Inputs: 2
Analog Outputs: 2
Digital In/Outputs: 7 / 5
Included Components
  • Control unit
  • PC connection
Power Management
Standby Loss: 112 W
Battery: Lithium Coin, CR2032, 2pcs, 3V, 220mAh, 6g
Ecodesign Information: Energy efficiency data is not provided for this cabinet-built drive. Cabinet-built drives, with already conform modules, are excluded from the scope of the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.e).
