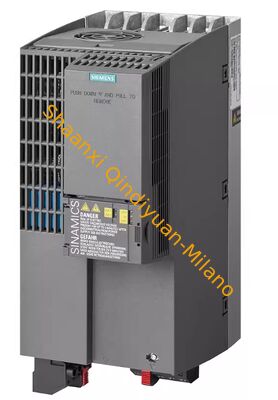

Compact AC Variable Frequency Drive 6SL3210-1KE21-7UF1 Siemens SINAMICS G120C

1PCS
MOQ
Negotiable
Price
Compact AC Variable Frequency Drive 6SL3210-1KE21-7UF1 Siemens SINAMICS G120C
Features Gallery Product Description Chat Now
Features
Specifications
Points: 40 (24DI+16DO)
Condition: New Original With Sealed
Memory_Size: 50 KB
Manufacturer: Siemens
Model: S7-1200
Weight: 0.72 KG
Output Method: Transistor
Point: 14 (8DI+6DO)
Output Points: 20
Input Points: 100-2
Input_Voltage: 24V DC
CPU_Type: Microprocessor-based
Number_of_Inputs: 16
Mpu Points: 12 (8DI + 4DO)
Power Supply Voltage: 100 – 240VAC.
Highlight:

Compact AC Variable Frequency Drive

,

6SL3210-1KE21-7UF1

,

Siemens SINAMICS G120C
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6SL3210-1KE21-7UF1
Document: 6SL3210-1KE21-7UF1_datashee...en.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 20PCS 1WEEK
Product Description
Product Specifications
General Information
Product TypeSINAMICS G120C Compact AC Variable Frequency Drive
Order Number6SL3210-1KE21-7UF1
Product SeriesSINAMICS G120C (CU240E-2 PN-2 DP integrated)
Product StatusCurrent Product
Cooling TypeAir cooling with integrated fan
Integrated Control UnitCU240E-2 PN-2 DP
Input Specifications
Input Voltage3AC 380-480 V ±10%/-20%
Input Frequency47-63 Hz
Input Connection3-phase with protective conductor
Output Specifications
Rated Output Power (Low Overload - LO)7.5 kW (10 hp)
Rated Output Power (High Overload - HO)5.5 kW (7.5 hp)
Rated Output Current (LO)21.5 A
Rated Output Current (HO)16.5 A
Output Voltage0-0.97 × Uline (3-phase)
Output Frequency Range0-550 Hz
Control ModesSensorless Vector Control (SLVC), V/f Control, Vector Control (with encoder)
Overload Capability (LO)
150% of rated current3 seconds
110% of rated current57 seconds
100% of rated current240 seconds
Overload Capability (HO)
200% of rated current3 seconds
150% of rated current57 seconds
100% of rated current240 seconds
I/O Interface
Digital Inputs (DI)6 (24V DC)
Digital Outputs (DO)2 (24V DC, resistive load)
Analog Inputs (AI)1 (0-10V / 0-20mA)
Analog Outputs (AO)1 (0-20mA)
Motor Temperature Sensor Input1 (PTC, KTY, ThermoClick compatible, accuracy ±5°C)
Safety Functions
Safe Torque Off (STO)Integrated (SIL 2, PL d)
Safety RatingSIL 2 (EN 61508), PL d (EN ISO 13849-1)
Communication Interfaces
Fieldbus InterfacesPROFINET (integrated), EtherNet/IP (integrated), PROFIBUS DP (optional via adapter)
Protocol SupportPROFIdrive, Modbus RTU, USS
Electrical Characteristics
Power Factor (cos φ)0.95
Efficiency>97% at rated load
Power LossApprox. 0.24 kW
Sound Pressure Level (1m distance)63 dB
Dimensions
Width100 mm (3.94 in)
Height196 mm (7.72 in)
Depth203 mm (7.99 in)
WeightApprox. 2.3 kg (5.07 lb)
Ambient Conditions
Operating Temperature-10°C to 40°C (14°F to 104°F)
Storage Temperature-25°C to 55°C (-13°F to 131°F)
Max Altitude2000 m (6562 ft) above sea level
Relative Humidity (non-condensing)5% to 95% (25°C)
Cooling Air Requirement0.009 m³/s (0.318 ft³/s)
Protection ClassIP20 (UL OPEN TYPE)
Standards Approvals
CE MarkYes
cULus CertificationYes
c-tick CertificationYes
RoHS ComplianceYes
EMC Filter ClassUnfiltered (external filter optional)
Additional Features
Integrated Brake ChopperYes (for braking resistor connection)
Energy Saving ModeYes (automatic flux reduction)
DC Injection BrakingYes
Automatic RestartYes
Parameter Copy FunctionYes (via BOP-2 or SD card)
