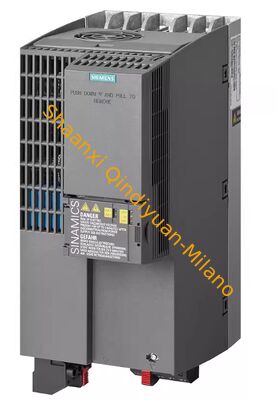

Siemens 6SL3210-1KE14-3UF2 SINAMICS G120C Compact Converter Chassis Mount, IP20 Protection Active (PM300)

1pcs
MOQ
Negotiable
Price
Siemens 6SL3210-1KE14-3UF2 SINAMICS G120C Compact Converter Chassis Mount, IP20 Protection Active (PM300)
Features Gallery Product Description Chat Now
Features
Specifications
ProgrammingLanguage: Ladder Logic, Function Block, Structured Text
InputType: Digital And Analog
Output Method: Relay
MemoryCapacity: Typically 16KB To 1MB
ExpansionCapability: Modular Expansion Supported
Output Typt: Relay
Display: Optional LCD Or LED Indicators
Part No: MMS 6210
Color: Normal
MountingType: DIN Rail Or Panel Mount
Supply Voltage Type: AC
Weight: 0.5KG
ProcessorType: Microprocessor-based
Condition: New Original With Sealed
Model: FX3G-60MT/ES-A
Highlight:

Siemens SINAMICS G120C VFD

,

Compact converter chassis mount

,

Variable frequency drive IP20 protection
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6SL3210-1KE14-3UF2
Document: 6SL3210-1KE14-3UF2_datashee...en.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 20pcs 1week
Product Description
Siemens SINAMICS G120C Compact Converter
Order Number6SL3210-1KE14-3UF2
Product StatusActive (PM300)
Construction TypeChassis Mount, IP20 Protection
Net Weight1.2 kg (2.65 lb)
Country of OriginGreat Britain
Frame SizeFSAA
Dimensions (H×W×D)173×73×160 mm
Electrical Specifications
Input Specifications
Input Voltage3AC 380-480V
Input Voltage Tolerance+10%/-20%
Input Frequency47-63 Hz
Output Specifications
Low Overload (LO) Power Rating1.5 kW (2.0 hp)
Low Overload (LO) Output Current4.1 A
High Overload (HO) Power Rating1.1 kW (1.5 hp)
High Overload (HO) Output Current3.1 A
Output Voltage0...0.97 × Uline (variable frequency)
Output Frequency Range0...650 Hz (Vector Control), 0...599 Hz (V/f Control)
Overload Capability
LO Overload 1150% for 3 seconds
LO Overload 2110% for 57 seconds
LO Overload 3100% continuously (240 seconds)
HO Overload 1200% for 3 seconds
HO Overload 2150% for 57 seconds
HO Overload 3100% continuously (240 seconds)
Control & Interface Features
Control Modes
  • Vector Control
  • V/f Control
  • Servo Control (basic)
I/O Interface
Digital Inputs (DI)6 x 24V DC
Digital Outputs (DO)2 x 24V DC
Analog Inputs (AI)1 x 0-10V or 4-20mA
Analog Outputs (AO)1 x 0-10V or 4-20mA
Motor Temperature Input1 x PTC/NTC (Mot_t)
Communication
Fieldbus ProtocolPROFINET-PN (integrated)
Other Protocols SupportedPROFIBUS DP (via optional module)
Safety & Compliance
Safety Features
Safety FeatureSafe Torque Off (STO) integrated
Safety RatingsSIL 2 (EN 61508), PL d (EN ISO 13849-1)
Compliance Standards
RoHS ComplianceYes (since 01.07.2006)
WEEE ComplianceYes (2012/19/EU)
REACH ComplianceYes (with information obligation for certain substances)
Additional Features & Accessories
Integrated Functions
  • Linear V/f
  • Quadratic V/f
  • Flying Start
  • DC Injection Braking
Optional Accessories
  • SD Card (512MB)
  • Line Reactor
  • Output Reactor
  • Circuit Breaker
  • Braking Chopper (external)
  • EMC Filter (external)
Technical Specifications
Switching Frequency4 kHz - 12 kHz (adjustable)
Cooling SystemForced Air Cooling (internal fan)
EMC FilterUnfiltered (external filter optional)
EAN: 4042948668856 | UPC: 804766193903
