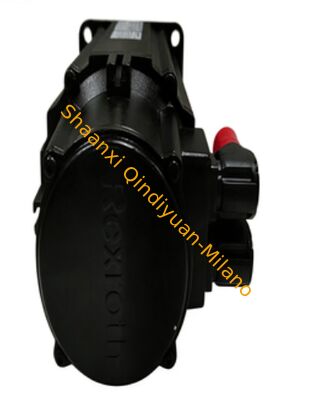

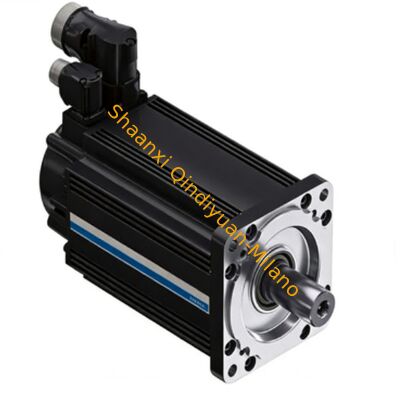

QSK075E IndraDyn S Series Servo Motor with 17 Nm Rated Torque, 4200 rpm Speed, and IP65 Protection

1 pcs
MOQ
Negotiable
Price
QSK075E IndraDyn S Series Servo Motor with 17 Nm Rated Torque, 4200 rpm Speed, and IP65 Protection
Features Gallery Product Description Chat Now
Features
Specifications
Resistance: 10.0±10% Ω/phase
Dimension: 40mm X 19mm X 43mm
Color: Black
Sample: Charged Sampled Available
Weight: 1.2 Kg
Warranty: 12 Months
Use: Industrial
Pressure: High Pressure, High Pressure
Condition: Original
Bus: PCI/ISA Bus, PICMG Compliant
Environmental Temperature: 0~+40 ℃
Mounting Type: Flange Mount
Motor Weight: 2.36 Kg
Thermal Time Constant: 150s
Models: GYB/GYG/GYS
Highlight:

17 Nm Rated Torque Servo Motor

,

4200 rpm Rated Speed Servo Motor

,

IP65 Protection Servo Motor
Basic Infomation
Brand Name: Rexroth
Certification: Brand new original
Model Number: QSK075E-0300-NN-M5-UG0-NNNN
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description
QSK075E-0300-NN-M5-UG0-NNNN Servo Motor
Core Positioning and Specifications
Series: IndraDyn S (QSK, MTX micro dedicated)
Frame: QSK075 (Flange: 140mm)
Body Length: E (Longest body) → Maximum Torque Output
Cooling Method: Natural Air Cooling (N)
Protection Rating: IP65 (Standard)
Encoder: M5 (Multi-turn Absolute Value) → No Zeroing Required, Precise Positioning
Compatible Drive: IndraDrive Cs (HCS01) Series
Key Electrical Parameters
Parameter Value
Rated Torque 17 Nm
Maximum Torque 66 Nm (4x Overload)
Rated Speed 4200 rpm
Maximum Speed 4200 rpm
Rated Power Approx. 7.5 kW
Rated Current 12.7 A
Maximum Current 52.7 A
Moment of Inertia 0.0035 kg·m²
Stator Resistance 0.32 Ω
Back EMF Constant 0.71 V/(krpm)
Torque Constant 1.35 Nm/A
Mechanical and Environmental Parameters
Flange Size: 140 mm (Standard Mount)
Shaft Diameter: 22 mm (Smooth Shaft, No Keyway)
Shaft Extension Length: 50 mm
Mounting Method: B5 (Flange Mount)
Weight: Approx. 18 kg
Operating Temperature: 0°C ～ +40°C
Storage Temperature: -20°C ～ +85°C
Maximum Altitude: 1000 m
Vibration/Shock: 5.8 g / 15 g (Compliant with Industry Standards)
Complete Model Code Analysis
QSK075E-0300-NN-M5-UG0-NNNN
QSK: Series (MTX micro dedicated servo motor)
075: Frame Size (Flange 140mm)
E: Body Length (E = Longest, Maximum Torque)
0300: Stator Code (Determines Power/Speed)
NN: Shaft End Options (N = Smooth Shaft; K = Keyway; S = Brake)
M5: Encoder (M5 = Multi-turn Absolute; S5 = Single-turn Absolute)
UG0: Connector (U = Power + Encoder; G = Plug; O = Standard)
NNNN: Special Options (N = None; B = Brake; H = High Temperature)
Core Advantages
  • High Torque Density: E-segment body provides 17Nm rated / 66Nm peak torque, strong heavy-duty capacity
  • Zero-free Positioning: Standard M5 multi-turn absolute encoder, positioning upon startup, no need for zeroing
  • High Dynamic Response: Low inertia design, suitable for frequent starts and stops, rapid positioning
  • High Protection: IP65, adaptable to harsh industrial environments
  • System Compatibility: Specifically designed for MTX Micro-optimization, good compatibility, and convenient debugging
Typical Application Scenarios
  • Heavy-duty CNC machine tools: Heavy-duty feed axes of gantry milling machines, vertical machining centers, horizontal machining centers, and grinding machines
  • Large-scale automated production lines: Heavy-duty material handling, stamping, injection molding, and packaging equipment
  • Industrial robots: Heavy-duty manipulators, palletizing robots, and welding robots
  • Specialized equipment: Presses, metallurgical equipment, and heavy-duty positioning platforms
