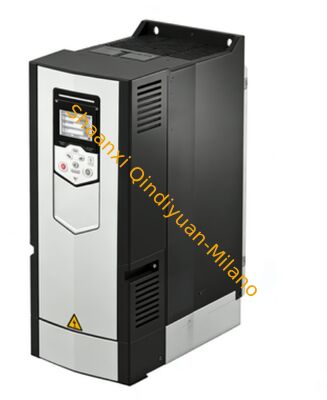

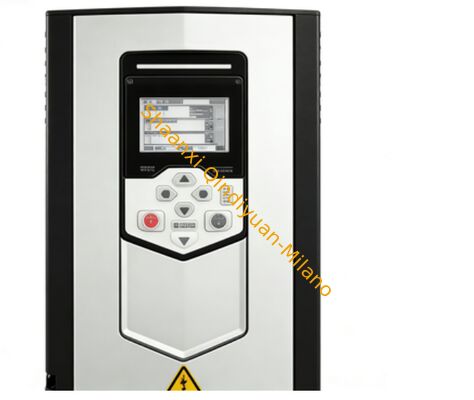

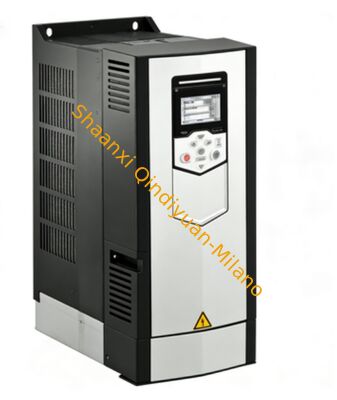

ABB ACS880-01-246A-3

LV AC Industrial Wall-Mounted Single Drive (132 kW, 400V Class)

1. Product Overview

2. Key Advantages & Core Features

• Industry-leading DTC Motor Control


  Native Direct Torque Control eliminates separate encoder feedback for most applications; ultra-fast torque response (<2 ms), stable low-speed torque output, compatible with all mainstream AC motor types including IE4 high-efficiency PM motors.
• Dual Overload Rating Design


  Supports Normal Duty (ND: 132 kW / 246 A continuous), Light Overload (LD: 132 kW / 234 A) and Heavy Duty (HD: 110 kW / 206 A), freely switched for variable torque / constant torque loads.
• Integrated Built-in Hardware


  Standard internal line choke to suppress grid harmonics; integrated EMC filter (EMC Class C2); STO (Safe Torque Off) safety function as factory standard, TÜV-certified functional safety; coated circuit boards for dust/humidity resistance.
• Rich Standard I/O & Expandable Communication


  Onboard 6 digital inputs, 2 digital outputs, 2 analog inputs, 2 analog outputs; native RS485/USB interface, expandable via optional adapters for PROFINET, PROFIBUS, EtherNet/IP, Modbus TCP, CANopen and PROFIsafe.
• Compact Wall-mounted R8 Frame Structure


  IP21 standard front protection (NEMA Type 1), direct wall installation without extra cabinet; pluggable control unit and removable memory card for one-click parameter backup & equipment replacement.
• Full Lifecycle Digital Management


  Supports Drive Composer PC commissioning tool and ABB Ability cloud monitoring; built-in runtime fault recording, energy consumption statistics and predictive maintenance alarm functions.
• Global Compliance & Wide Environmental Adaptability


  CE, UL/cUL, RoHS, UKCA certified; stable operation at altitude up to 1000 m without derating, operating temperature range -10°C ~ +40°C.

3. Full Technical Specifications

4. Application Industries & Typical Scenarios

Main Industrial Sectors

1. Water & Wastewater Treatment


   Large water supply pumps, sewage blowers, circulation pump groups, booster pump stations, offering significant energy saving via variable speed regulation.
2. Mining & Bulk Material Handling


   Heavy belt conveyors, stacker-reclaimers, underground ventilation fans, centrifugal thickeners, stable torque control under frequent start-stop heavy loads.
3. Oil, Gas & Chemical Plants


   Process compressors, agitators, extraction pumps, cooling tower fans, reliable operation under fluctuating grid voltage.
4. Cement & Building Materials


   Raw material mixers, kiln exhaust fans, clinker conveyors, vertical mill auxiliary drives, withstand dusty industrial environments.
5. Food & Beverage / Packaging Machinery


   Large extruders, winding/unwinding equipment, high-power filling line main drives, precise speed synchronization control.
6. Marine & Port Logistics


   Harbor crane hoists, ship auxiliary pumps, tunnel ventilation fans, meets marine anti-vibration and EMC standards.

Warehouse Storage Reference

5. Compliance Statement
