QSK061B-0300-NN-M5-UG0-NNNN 3000 rpm IP65 Protection Compact Design AC Servo Motor

1 pcs
MOQ
Negotiable
Price
QSK061B-0300-NN-M5-UG0-NNNN 3000 rpm IP65 Protection Compact Design AC Servo Motor
Features Gallery Product Description Chat Now
Features
Specifications
Heat Resistance Level: F Level
Application: DIY Experiment
Protection: IP65
Width: 600
Payment: TT
Gear Ratio: 1/45.569
Rated Torque: 1.59N.m
Factory Price: Yes
Chip: Pwm Dc Motor Speed Controller
Protection Level: IP67
Local Service Location: None
Shaft Diameter: 8 Mm
Rated Current: 5A
Weight: 1.2 Kg
Warranty: 12 Months
Highlight:

3000 rpm Servo Motor

,

IP65 Protection AC Servo Motor

,

Compact Design Synchronous Servo Motor
Basic Infomation
Brand Name: Rexroth
Certification: Brand new original
Model Number: QSK061B-0300-NN-M5-UG0-NNNN
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description

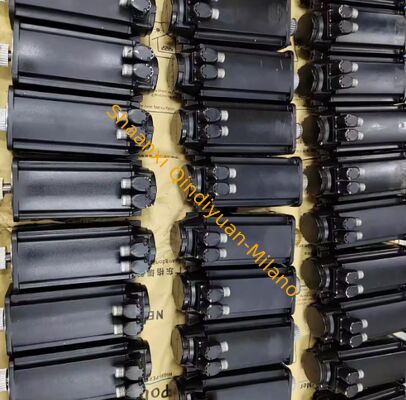

QSK061B-0300-NN-M5-UG0-NNNN Servo Motor
Product Code Breakdown
QSK - Servo Motor Series Code
061 - Frame Size (fixed flange and shaft diameter)
B - Motor Length Class (B for short frame, C for longer frame)
0300 - Winding Code (rated speed 3000 rpm)
NN - Standard Design / No Special Customization
M5 - Encoder Interface and Type (multi-turn absolute encoder, Hiperface compatible)
UG0 - Brake Configuration (no electromagnetic brake)
NNNN - No additional special options
Technical Specifications
Parameter Specification
Speed Rated 3000 rpm with short-term overspeed capability
Torque Approximately 8 N·m (slightly lower than QSK061C frame)
Electrical Three-phase AC servo, F insulation class, IP65 protection
Encoder Multi-turn absolute, no zeroing required after power-on
Cooling Natural cooling (fan or water cooling accessories available)
Shaft End Keyway, standard seal, direct connection to couplings/gearboxes
Mounting IEC standard flange for easy replacement
Design Features
  • No brake configuration (UG0) - suitable for applications not requiring position retention after power failure
  • Absolute encoder maintains position after power failure for improved system startup efficiency
  • Compact design ideal for automated production lines with limited space
  • Rotatable cable interface reduces on-site wiring difficulty
  • Vibration-resistant and interference-resistant design for industrial electromagnetic environments
Typical Applications
  • Machine Tools: Feed axes and spindles for CNC machining centers, lathes, and grinding machines
  • Automated Production Lines: High-speed handling robots, labeling machines, packaging machinery, and electronic equipment assembly
  • Printing & Papermaking: Roll paper force control and printing roller synchronous drive
  • Plastics Machinery: Injection and mold closing servo systems for injection molding machines
Installation & Maintenance Guidelines

Must be used with servo drive of the same brand and series to ensure encoder interface and power parameter compatibility.

IP65 protection rating suitable for outdoor or humid workshops - cable joints require additional sealing.

Regular lubrication and bearing inspection according to manual to prevent premature wear under high-speed, high-temperature conditions.

Confirm warranty period and source when purchasing replacement bearings.
