Home /Products/Variable Frequency Drives VFD/Siemens 6ES7288-1SR20-0AA1 SIMATIC S7-200 SMART CPU SR20, AC/DC/relay, onboard I/O: 12 DI 24 V DC; 8 DQ relay 2A;

Siemens 6ES7288-1SR20-0AA1 SIMATIC S7-200 SMART CPU SR20, AC/DC/relay, onboard I/O: 12 DI 24 V DC; 8 DQ relay 2A;

1pcs
MOQ
Negotiable
Price
Siemens 6ES7288-1SR20-0AA1 SIMATIC S7-200 SMART CPU SR20, AC/DC/relay, onboard I/O: 12 DI 24 V DC; 8 DQ relay 2A;
Features Gallery Product Description Chat Now
Features
Specifications
Operating_Temperature_Range: -20°C To 60°C
Part No: 750-667/000-003
Output Points: 16DO
Input_Voltage: 24V DC
Input Points: 16DI
Color: Normal
Power Supply Voltage: AC240-360V.
Output Typt: Relay
Power_Consumption: 5 W
Condition: New Original With Sealed
Mounting_Type: DIN Rail
Weight: 0.43 KG
Points: 40 (24DI+16DO)
Number_of_Outputs: 10
Memory_Size: 50 KB
Highlight:

Siemens S7-200 SMART CPU SR20 PLC

,

SIMATIC S7-200 relay output PLC

,

Siemens PLC with onboard I/O
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6ES7288-1SR20-0AA1
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 20PCS 1week
Product Description

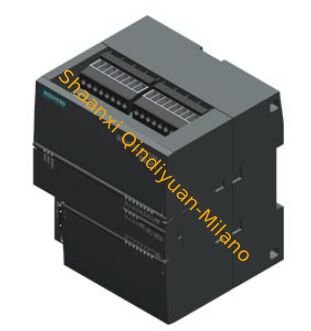

Siemens 6ES7288-1SR20-0AA1 SIMATIC S7-200 SMART CPU SR20
AC/DC/relay programmable logic controller with onboard I/O: 12 digital inputs 24V DC; 8 digital outputs relay 2A
Product Overview
The SIMATIC S7-200 SMART CPU SR20 is a compact, high-performance programmable logic controller designed for industrial automation applications. Featuring robust construction and versatile connectivity options, this controller provides reliable operation in demanding manufacturing environments.
Key Features
  • 12 digital inputs (24V DC) and 8 relay outputs (2A each)
  • AC/DC power supply (85-264V AC, 77-138V DC)
  • 20 KB program/data memory capacity
  • PROFINET Ethernet and dual RS485 communication interfaces
  • Expandable with up to 6 I/O modules
  • Compact DIN rail mounting design
  • IP20 protection rating for industrial environments
Technical Specifications
Parameter Specification
Order Number 6ES7288-1SR20-0AA1
Product Series SIMATIC S7-200 SMART
CPU Type Standard CPU SR20 AC/DC/Relay
Power Supply AC 85-264 V AC (47-63 Hz), 77 to 138 V DC
Program/Data Memory 20 KB
Digital Inputs 12 x 24 V DC (7 mA per input)
Digital Outputs 8 x Relay (2 A each)
Communication Interfaces 1 x PROFINET Ethernet (10/100 Mbps), 2 x RS485 (Modbus RTU, PPI protocol)
Expansion Capability Up to 6 I/O modules
Dimensions (W x H x D) 90 mm x 100 mm x 81 mm
Weight Approx. 367 grams
Power Dissipation 14 W
IP Protection Class IP20
Operating Temperature 0°C to 55°C (horizontal installation)
Storage/Transport Temperature -40°C to 70°C
Relative Humidity Max. 95% at 25°C (non-condensing)
Mounting Type DIN rail mounting (35 mm standard)
Certifications CE marked
Environmental Specifications
Installation Altitude -1,000 m to +2,000 m above sea level
Atmospheric Pressure (Operation) 660 hPa to 1080 hPa
Atmospheric Pressure (Storage/Transport) 660 hPa to 1080 hPa
Free Fall Resistance Max. 0.3 m, five times in product package
