Home /Products/Servo Systems/3000 rpm High Torque Density IP65 Protection Synchronous Servo Motor for CNC and Robotics

3000 rpm High Torque Density IP65 Protection Synchronous Servo Motor for CNC and Robotics

1 pcs
MOQ
Negotiable
Price
3000 rpm High Torque Density IP65 Protection Synchronous Servo Motor for CNC and Robotics
Features Gallery Product Description Chat Now
Features
Specifications
Thickness: 22 Mm-30 Mm（
Lead Time: Approx 7 Days Normally
Sample: Charged Sampled Available
Dimension: 32 X 11.5 X 24 Mm
Maximum Speed: 8000 Rpm
Geometric Displacement: 410.9 Cm³ (25.07 In³)
Stock: Rich
Rated Time: Continuous
Maximum Current: 10A
Hollow Shaft Diameter: Ø140 Mm - Ø340 Mm
Connection: 4-wire
Application: Robotics, CNC Machines
Power: 200W
Motor: Stepper Motor
Keywords: Mounting Bracket
Highlight:

3000 rpm Servo Motor

,

IP65 Protection Synchronous Servo Motor

,

High Torque Density IndraDyn S Series Servo Motor
Basic Infomation
Brand Name: Rexroth
Certification: Brand new original
Model Number: MSK070E-0300-NN-M1-UG1-NNNN
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description

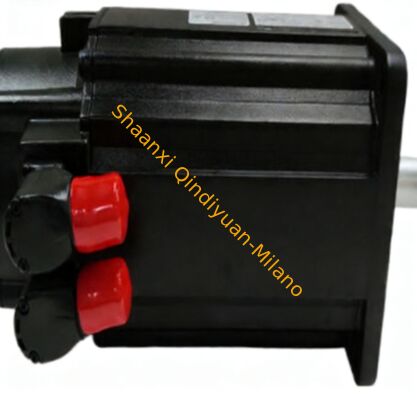

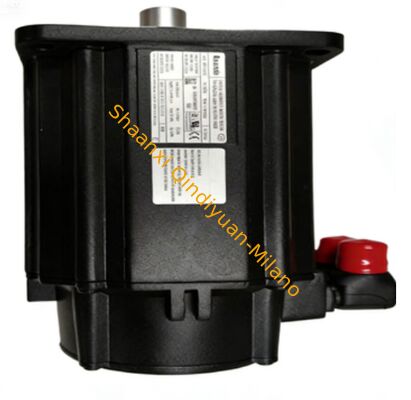

MSK070E-0300-NN-M1-UG1-NNNN Servo Motor
Technical Specifications
Parameter Value Description
Maximum Speed 3000 min⁻¹ Corresponds to "0300" in model number
Continuous Torque 25.0 Nm Rated stall torque (100K)
Maximum Torque 65.0 Nm Peak torque (2.6× continuous torque)
Rated Power 7.8 kW Calculated at 3000 rpm
Continuous Current 16.7 A Rated operating current (100K)
Maximum Current 49.3 A Peak current
Winding Inductance 3.9 mH 3900 μH
Moment of Inertia 0.006 kg·m² Rotor inertia
Weight 17.8 kg Basic version without brake
Protection Rating IP65 Dustproof and water-resistant
Thermal Rating 155℃ (F Class) EN 60034-1 standard
Cooling Method Natural Cooling Fanless operation
Encoder M1 Standard Multi-turn absolute value, Hiperface interface
Model Number Breakdown
MSK - IndraDyn S Series Synchronous Servo Motor
070 - Frame size (70mm diameter)
E - Frame length (longest version, high torque)
0300 - Maximum speed 3000 RPM
NN - No holding brake, no oil seal
M1 - Standard multi-turn absolute encoder (Hiperface)
UG1 - No built-in brake
NNNN - No additional options
Key Features
  • Ultra-high torque density: Compact size with high torque output for space-constrained applications
  • High-precision positioning: Multi-turn absolute encoder with power-off position memory
  • High dynamic response: Low inertia for rapid acceleration and deceleration
  • Robust protection: IP65 rating for demanding industrial environments
  • Strong compatibility: Works with IndraDrive series drives and multiple bus systems
  • Flexible installation: 240° rotatable encoder connector for easy wiring
Typical Applications
CNC Machine Tools
Industrial Robots
Automated Assembly Lines
Packaging Machinery
Printing Machinery
Textile Machinery
Injection Molding Machines
Die Casting Machines
Hydraulic Servo Systems
