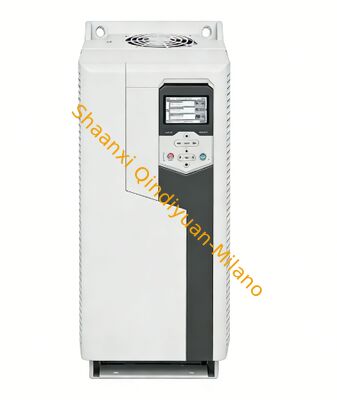

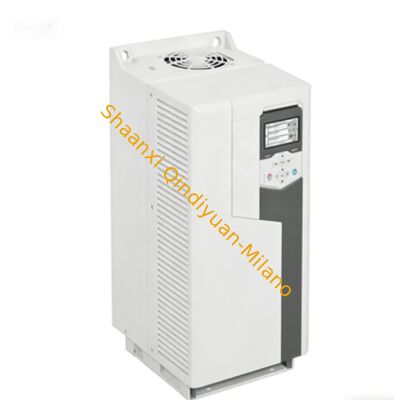

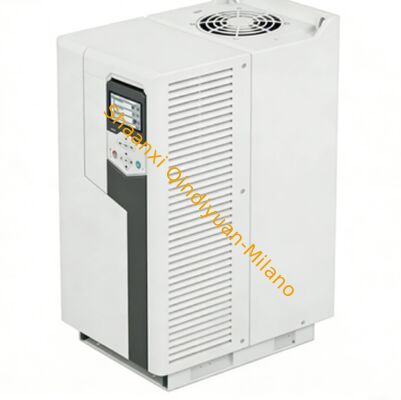

ABB ACS580-01-145A-4 LV AC Drive
General purpose wall-mounted drive, IEC: Pn 75 kW, 145 A, 400 V
Product Specifications
Electrical Characteristics
Output Power (Normal Use):
75 kW
Output Current (Normal Use):
145 A
Input Voltage:
380-480 V
Frequency:
47.5-63 Hz
Number of Phases:
3-phase
Efficiency Level:
IE2
Apparent Power Output:
100 kV·A
Power Consumption:
1960 W
Standby Loss:
36 W
Current & Power Ratings
| Application Type |
Output Current |
Output Power |
| Normal Use |
145 A |
75 kW |
| Light-Overload Use |
138 A |
75 kW |
| Heavy-Duty Use |
105 A |
55 kW |
Environmental Specifications
Operating Temperature:
-15°C to 40°C
Operating Humidity:
5-95% RH
Altitude:
1000 m
Sound Level:
67 dB(A)
Degree of Protection:
IP21
Enclosure Type NEMA:
Type1
Communication & Interfaces
Supported Protocols: CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, TCP/IP, Other Bus Systems
Hardware Interfaces:
- RS-485: 1
- USB: 1
- Other: 2
- Parallel: 2
- Analog Inputs: 2
- Analog Outputs: 2
- Digital In/Outputs: 6 / 3
Physical Dimensions
Net Weight:
49.5 kg (109.1 lb)
Dimensions (H*W*D):
727 * 252 * 369 mm (28.622 * 9.921 * 14.528 in)
Package Dimensions:
578 * 325 * 870 mm (22.76 * 12.80 * 34.25 in)
Efficiency Data (IEC 61800-9-2)
Operating Point
Frequency / Current |
Absolute
Loss |
Efficiency |
Relative
Loss |
| 0/25% |
505 W |
91.5% |
0.5% |
| 0/50% |
692 W |
93.8% |
0.7% |
| 0/100% |
1238 W |
94.4% |
1.2% |
| 50/25% |
557 W |
95.3% |
0.6% |
| 50/50% |
791 W |
96.5% |
0.8% |
| 50/100% |
1470 W |
96.7% |
1.5% |
| 90/50% |
946 W |
97.7% |
0.9% |
| 90/100% |
1960 W |
97.5% |
2.0% |
Ordering Information
Customs Tariff Number:
85044087
HS Code:
850440
Made To Order:
Yes
Minimum Order Quantity:
1 piece
Mounting Type:
Wall-mounted
Includes:
Control unit, PC connection
