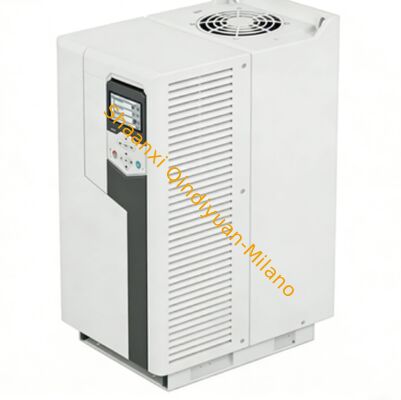

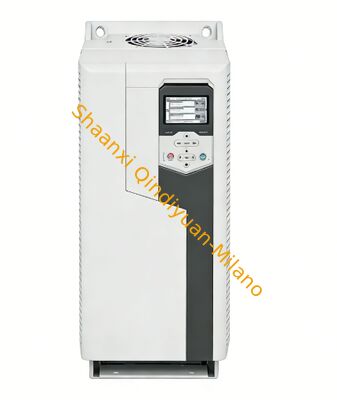

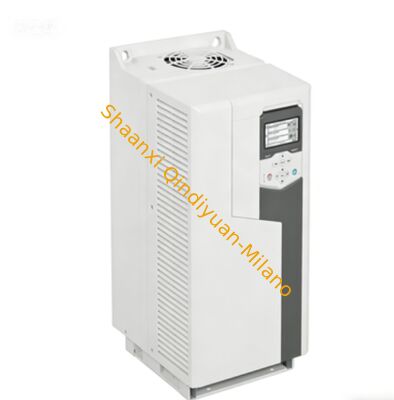

ABB ACS580-01-046A-4 LV AC General Purpose Wall Mounted Drive IEC Pn 22 KW 45A 400 V

1
MOQ
Negotiable
Price
ABB ACS580-01-046A-4 LV AC General Purpose Wall Mounted Drive IEC Pn 22 KW 45A 400 V
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

ABB ACS580 Wall Mounted VFD

,

22 kW variable frequency drive

,

ABB ACS580-01-046A-4
Basic Infomation
Place of Origin: CHINA
Brand Name: ABB
Model Number: ACS580-01-046A-4
Document: 2pdf.pdf
Payment & Shipping Terms
Packaging Details: PIECES
Delivery Time: 5-8DAYS
Payment Terms: T/T
Product Description
ABB ACS580-01-046A-4 LV AC Drive

General purpose wall-mounted drive with 22 kW output power, 45 A current rating, and 400 V operation. IEC compliant for industrial applications.

Ordering Information
Customs Tariff Number: 85044087
HS Code: 850440
Invoice Description: ACS580-01-046A-4 PN: 22 kW, IN: 45 A
Made To Order: Yes
Minimum Order Quantity: 1 piece
Selling Unit: piece
Dimensions & Weight
Net Weight: 11.8 kg (26.015 lb)
Net Dimensions: 203 * 490 * 229 mm (W*H*D)
Package Dimensions: 290 * 325 * 679 mm (W*H*D)
Package Units: 1 carton
Technical Specifications
Number of Phases: 3-phase
Degree of Protection: IP21
Enclosure Type: NEMA Type1
Altitude: 1000 m
Operating Humidity: 5 ... 95% RH
Sound Level: 76 dB(A)
Frequency Range: 47.5 ... 63 Hz
Frame Size: R3
Input Voltage: 380 ... 480 V
Mounting Type: Wall-mounted
Efficiency Level: IE2
Standby Loss: 16 W
Communication & Interfaces
Communication Protocols: CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, TCP/IP
RS-485: 1
USB: 1
Other Interfaces: 2
Parallel Interfaces: 2
Analog Inputs: 2
Analog Outputs: 2
Digital In/Outputs: 6 / 3
Power Performance
Output Current (Normal Use): 45 A
Output Current (Light-Overload): 42.8 A
Output Current (Heavy-Duty): 37.7 A
Output Power (Normal Use): 22 kW
Output Power (Light-Overload): 22.0 kW
Output Power (Heavy-Duty): 18.5 kW
Power Consumption: 672 W
Apparent Power Output: 31 kV·A
Drive Unit Efficiency (IEC 61800-9-2)
Operating Point
Frequency / Current		 Absolute
Loss		 Efficiency Relative
Loss
0/25 % 200 W 89.2 % 0.6 %
0/50 % 260 W 92.5 % 0.8 %
0/100 % 459 W 93.3 % 1.5 %
50/25 % 216 W 94.1 % 0.7 %
50/50 % 290 W 95.8 % 0.9 %
50/100 % 534 W 96.1 % 1.7 %
90/50 % 328 W 97.3 % 1.1 %
90/100 % 672 W 97.3 % 2.2 %
Environmental Ratings
Operating Temperature: -15 °C to +40 °C
Battery Information
Battery Type: Lithium Coin, CR2032
Capacity: 220 mAh, 3 V
Quantity: 1 piece, 3 g
Included Components
  • Control unit
  • PC connection
