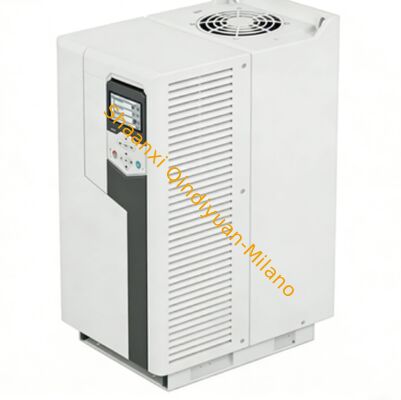

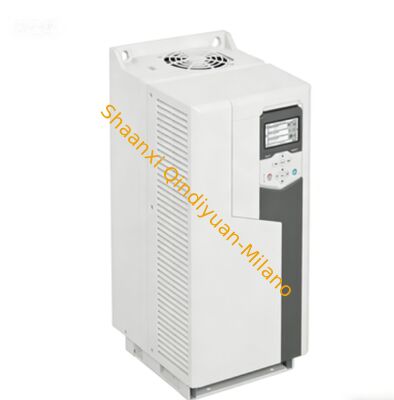

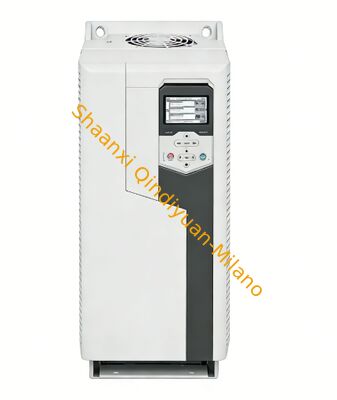

ABB ACS580-01-073A-4 LV AC Drive
General purpose wall-mounted drive with 37 kW output power, 73 A current rating, and 400 V operation for industrial applications.
Product Overview
The ACS580-01 is plug-in ready to control compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications. Ideal for light industries including food and beverage, plastic, textile, material handling, and agriculture.
Key Specifications
Output Power: 37 kW
Output Current: 73 A
Input Voltage: 380-480 V
Phases: 3-phase
Protection Rating: IP21
Mounting: Wall-mounted
Efficiency: IE2
Frame Size: R4
Product Identification
| Global Commercial Alias | ACS580-01-073A-4 |
|---|
| Product ID | 3AUA0000080499 |
|---|
| EAN | 6438177305552 |
|---|
| Customs Tariff Number | 85044087 |
|---|
Technical Features
All essential features are built-in as standard, simplifying drive selection and eliminating the need for additional hardware. Versatile settings menu and assistants enable fast setup, commissioning, use, and maintenance.
Communication Protocols
CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, TCP/IP, Other Bus Systems
Input/Output Configuration
Analog Inputs: 2
Analog Outputs: 2
Digital I/O: 6 inputs / 3 outputs
Hardware Interfaces: RS-485, USB, Parallel
Performance Data
Output Current Ratings
| Application Type | Current Rating | Power Rating |
|---|
| Normal Use | 73 A | 37 kW |
| Light Overload | 68 A | 37 kW |
| Heavy Duty | 61 A | 30.0 kW |
Efficiency Data (IEC61800-9-2)
| Operating Point | Absolute Loss | Efficiency | Relative Loss |
|---|
| 0/25% | 295 W | 90.1% | 0.6% |
| 0/50% | 392 W | 93.0% | 0.8% |
| 0/100% | 726 W | 93.4% | 1.4% |
| 50/25% | 324 W | 94.5% | 0.6% |
| 50/50% | 454 W | 96.0% | 0.9% |
| 50/100% | 866 W | 96.1% | 1.7% |
| 90/50% | 527 W | 97.4% | 1.0% |
| 90/100% | 1120 W | 97.2% | 2.2% |
Physical Dimensions
Product Dimensions
Net Weight: 20 kg (44.092 lb)
Depth: 257 mm (10.118 in)
Height: 636 mm (25.039 in)
Width: 203 mm (7.992 in)
Package Dimensions
Package Depth: 794 mm (31.260 in)
Package Height: 358 mm (14.094 in)
Package Width: 278 mm (10.945 in)
Packaging: 1 carton
Environmental Specifications
Operating Temperature: Minimum -15°C
Operating Humidity: 5-95% RH
Altitude: 4000 m
Sound Level: 70 dB(A)
Ordering Information
Made To Order: Yes
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Selling Unit: piece
