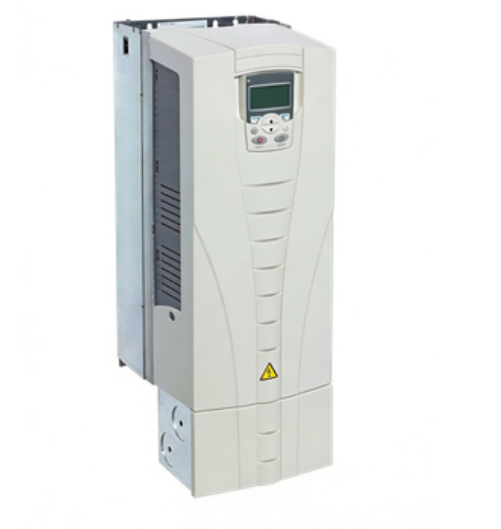

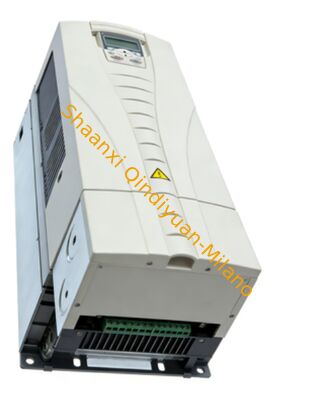

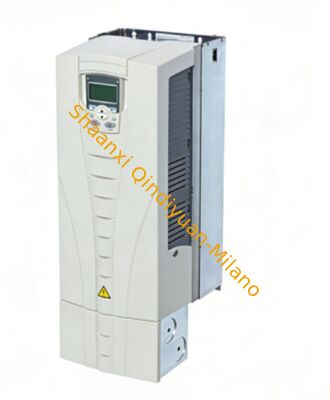

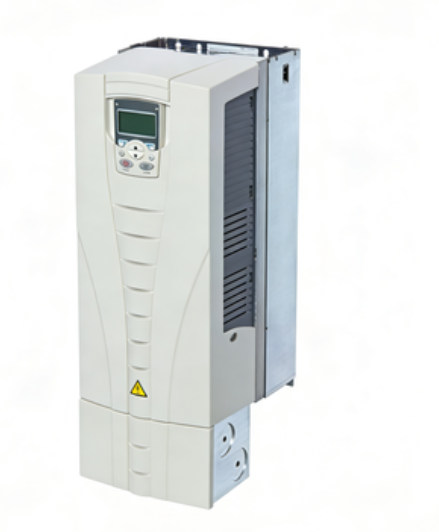

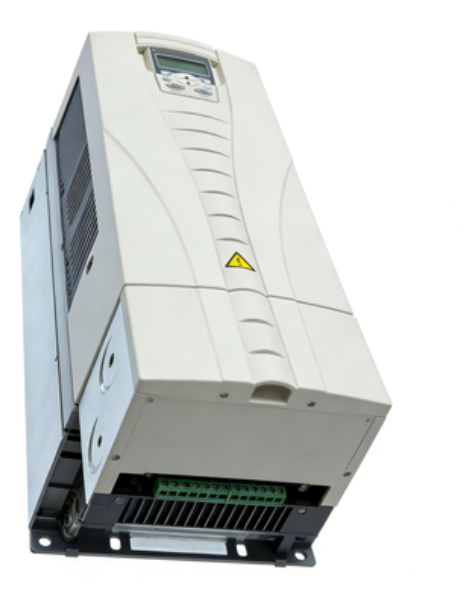

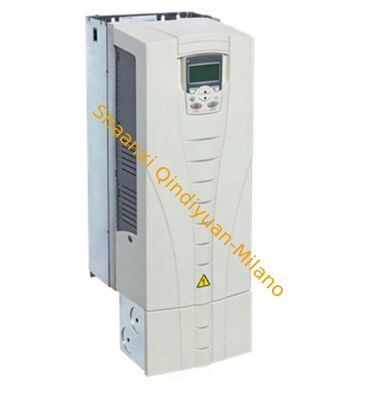

ABB ACS580-01-089A-4 LV AC General Purpose Drive
Wall-mounted AC drive with 45 kW output power, 89 A output current, and 400 V operating voltage. Designed for industrial applications with comprehensive communication protocols and robust performance characteristics.
Ordering Information
Customs Tariff Number: 850440
HS Code: 850440 - Electrical transformers, static converters
Invoice Description: ACS580-01-089A-4 PN: 45 kW, IN: 89 A
Made To Order: Yes
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Selling Unit: piece
Physical Dimensions
Product Dimensions
Net Weight: 22 kg (48.502 lb)
Depth/Length: 257 mm (10.118 in)
Height: 636 mm (25.039 in)
Width: 203 mm (7.992 in)
Package Dimensions
Package Depth/Length: 794 mm (31.260 in)
Package Height: 358 mm (14.094 in)
Package Width: 278 mm (10.945 in)
Package Units: 1 carton
Technical Specifications
Number of Phases: 3-phase
Degree of Protection: IP21
Enclosure Type NEMA: Type1
Altitude: 4000 m
Operating Humidity: 5 ... 95% RH
Sound Level: 70 dB(A)
Frequency Range: 47.5 ... 63 Hz
Frame Size: R4
Input Voltage: 380 ... 480 V
Mounting Type: Wall-mounted
Communication & Interfaces
Communication Protocols: CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, TCP/IP
RS-485: 1
USB: 1
Other Interfaces: 2
Parallel Interfaces: 2
Analog Inputs: 2
Analog Outputs: 2
Digital In/Outputs: 6 / 3
Includes: Control unit, PC connection
Power Performance
Output Current (Normal Use): 89 A
Output Current (Light-Overload): 83 A
Output Current (Heavy-Duty): 72 A
Output Power (Normal Use): 45 kW
Output Power (Light-Overload): 45 kW
Output Power (Heavy-Duty): 37 kW
Power Consumption: 1028 W
Apparent Power Output: 62 kV·A
Efficiency Level: IE2
Standby Loss: 21 W
Complete Drive Module Efficiency (61800-9-2)
Operating Point
Frequency / Current |
Absolute
Loss |
Efficiency |
Relative
Loss |
| 0/25 % | 292 W | 92.0 % | 0.5 % |
| 0/50 % | 413 W | 94.0 % | 0.7 % |
| 0/100 % | 783 W | 94.2 % | 1.3 % |
| 50/25 % | 319 W | 95.6 % | 0.5 % |
| 50/50 % | 468 W | 96.6 % | 0.8 % |
| 50/100 % | 901 W | 96.7 % | 1.5 % |
| 90/50 % | 518 W | 97.9 % | 0.8 % |
| 90/100 % | 1059 W | 97.8 % | 1.7 % |
Environmental Ratings
Maximum Temperature: 40 °C
Minimum Temperature: -15 °C
Battery Information
Battery Type: Lithium Coin, CR2032
Capacity: 220 mAh, 3 V
Quantity: 1 piece, 3 g
