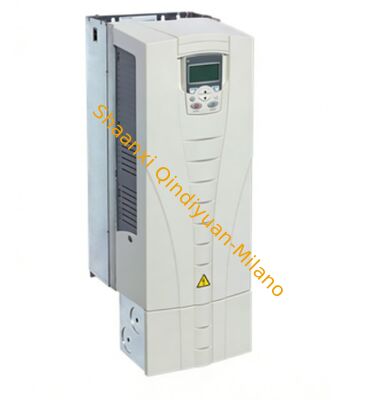

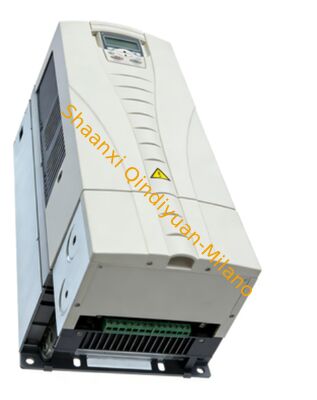

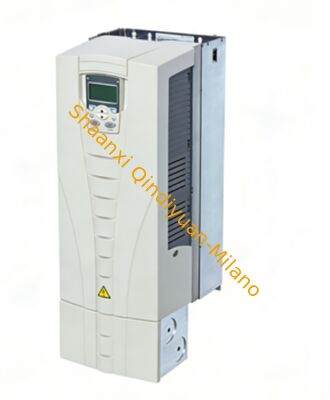

ABB ACS580-01-293A-4 LV AC General Purpose Wall Mounted Drive IEC Pn 160KW 293A

1
MOQ
Negotiable
Price
ABB ACS580-01-293A-4 LV AC General Purpose Wall Mounted Drive IEC Pn 160KW 293A
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

ABB ACS580-01 VFD drive 160 kW

,

wall mounted variable frequency drive 293A

,

ABB ACS580-01-293A-4
Basic Infomation
Place of Origin: CHINA
Brand Name: ABB
Model Number: ACS580-01-293A-4
Document: 2pdf.pdf
Payment & Shipping Terms
Packaging Details: PIECES
Delivery Time: 5-8DAYS
Payment Terms: T/T
Product Description
ABB ACS580-01-293A-4 General Purpose Drive
Low Voltage AC general purpose wall-mounted drive, IEC rated: Power 160 kW, Current 293 A
Product Information
Customs Tariff Code: 85044087
HS Code: 850440
Invoice Description: ACS580-01-293A-4 PN:160kW, IN:293A
Made to Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Quote Only: No
Sales Unit: piece
Dimensions & Weight
Net Weight: 86 kg
Depth: 393 mm
Height: 965 mm
Width: 300 mm
Packaging Level 1: 0 carton
Technical Specifications
Number of Phases: 3-phase
Protection Rating: IP21
NEMA Enclosure Type: Type1
Frequency Range: 47.5 ... 63 Hz
Frame Size: R8
Input Voltage: 380 … 480 V
Mounting Type: Wall-mounted
Efficiency Level: IE2
Output Current Ratings
Normal Use (In): 293 A
Light Overload Use (ILD): 278 A
Heavy-Duty Use (IHD): 246 A
Output Power Ratings
Normal Use (Pn): 160 kW
Light Overload Use (PLD): 160 kW
Heavy-Duty Use (PHD): 132 kW
Drive Module Efficiency (IEC 61800-9-2)
Operating Point
Frequency / Current		 Absolute Loss Relative Loss Efficiency
0 / 25 %981 W0.5 %91.8 %
0 / 50 %1382 W0.7 %93.9 %
0 / 100 %2541 W1.3 %94.3 %
50 / 25 %1088 W0.5 %95.5 %
50 / 50 %1582 W0.8 %96.5 %
50 / 100 %3032 W1.5 %96.6 %
90 / 50 %1907 W0.9 %97.7 %
90 / 100 %4071 W2.0 %97.5 %
