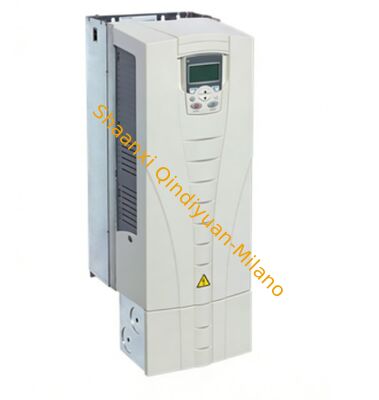

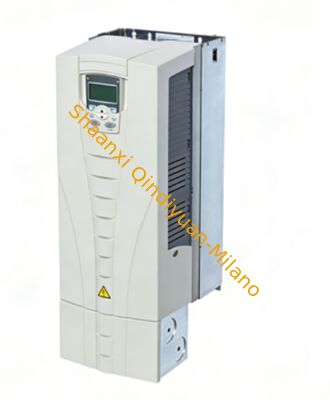

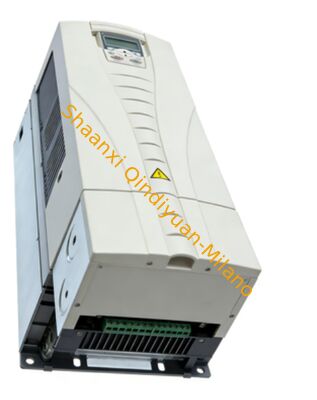

ABB ACS580-01-169A-4 LV AC General Purpose Wall Mounted Drive IEC Pn 90 KW 169 A

1
MOQ
Negotiable
Price
ABB ACS580-01-169A-4 LV AC General Purpose Wall Mounted Drive IEC Pn 90 KW 169 A
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

ACS580-01-169A-4

,

general purpose variable frequency drive

,

90 kW IEC compliant VFD
Basic Infomation
Place of Origin: China
Brand Name: ABB
Model Number: ACS580-01-169A-4
Document: 2pdf.pdf
Payment & Shipping Terms
Packaging Details: PIECES
Delivery Time: 5-8DAYS
Payment Terms: T/T
Product Description
Product Overview
Product: ABB ACS580-01-169A-4 LV AC General Purpose Wall-Mounted Drive
Power Rating: 90 kW, 169 A
Standard: IEC
Ordering Information
Customs Tariff Number: 85044
HS Code: 850440
Invoice Description: ACS580-01-169A-4 PN:90kW, IN:169A
Made to Order: No
Minimum Order Quantity: 1 piece
Multiple Order: 1 piece
Quote Only: No
Sales Unit: piece
Dimensions & Weight
Net Weight: 54 kg
Net Depth/Length: 370 mm
Net Height: 880 mm
Net Width: 284 mm
Package Depth/Length: 600 mm
Package Height: 970 mm
Package Width: 380 mm
Package Units: 0 carton
Technical Specifications
Phase: 3-phase
Protection Degree: IP21
NEMA Enclosure Type: Type1
Frequency (f): 47.5 ... 63 Hz
Frame Size: R7
Input Voltage (Uin): 380 … 480 V
Mounting Type: Wall-mounted
Efficiency Level: IE2
Output Current Ratings
Normal Use (In): 169 A
Light Overload Use (ILD): 161 A
Heavy Duty Use (IHD): 145 A
Output Power Ratings
Normal Use (Pn): 90 kW
Light Overload Use (PLD): 90 kW
Heavy Duty Use (PHD): 75 kW
Drive Module Efficiency (IEC 61800-9-2)
Operating Point
Frequency / Current		 Absolute
Loss		 Relative
Loss		 Efficiency
0 / 25 % 556 W 0.5 % 92.0 %
0 / 50 % 754 W 0.6 % 94.2 %
0 / 100 % 1317 W 1.1 % 94.8 %
50 / 25 % 611 W 0.5 % 95.6 %
50 / 50 % 860 W 0.7 % 96.7 %
50 / 100 % 1547 W 1.3 % 97.0 %
90 / 50 % 1013 W 0.9 % 97.8 %
90 / 100 % 2021 W 1.7 % 97.8 %
