Home /Products/Variable Frequency Drives VFD/Allen-Bradley 22B-D2P3N104 Power Flex 40 AC Drive Power Flex 40 AC Drive

Allen-Bradley 22B-D2P3N104 Power Flex 40 AC Drive Power Flex 40 AC Drive

1PCS
MOQ
Negotiable
Price
Allen-Bradley 22B-D2P3N104 Power Flex 40 AC Drive Power Flex 40 AC Drive
Features Gallery Product Description Chat Now
Features
Specifications
Dimensions: Varies By Model, Typically Compact Design
Mounting Type: Wall-mounted, Panel-mounted
Input Voltage: 200-480V AC
Control Method: V/f Control, Vector Control, Sensorless Vector Control
Power Range: 0.5 KW To 500 KW
Ambient Temperature Range: -10°C To 50°C
Protection Features: Overvoltage, Undervoltage, Overload, Short Circuit, Phase Loss
Starting Torque: Up To 150% Rated Torque
Overload Capacity: 150% For 60 Seconds
Cooling Method: Forced Air Cooling
Output Voltage: 0-480V AC
Communication Protocols: Modbus, Profibus, Ethernet/IP, CANopen
Humidity: 0-95% Non-condensing
Starting Current: Reduced Starting Current (Soft Starter Typically 2-3 Times Rated Current)
Frequency Range: 0-400 Hz
Highlight:

Allen-Bradley Power Flex 40 AC Drive

,

Power Flex 40 VFD with warranty

,

Allen-Bradley 22B-D2P3N104 variable frequency drive
Basic Infomation
Place of Origin: USA
Brand Name: Allen-Bradley
Model Number: 22B-D2P3N104
Document: 22B-D2P3N104.pdf
Payment & Shipping Terms
Delivery Time: 5-7workday
Payment Terms: T/T
Supply Ability: 10PCS 1WEEK
Product Description

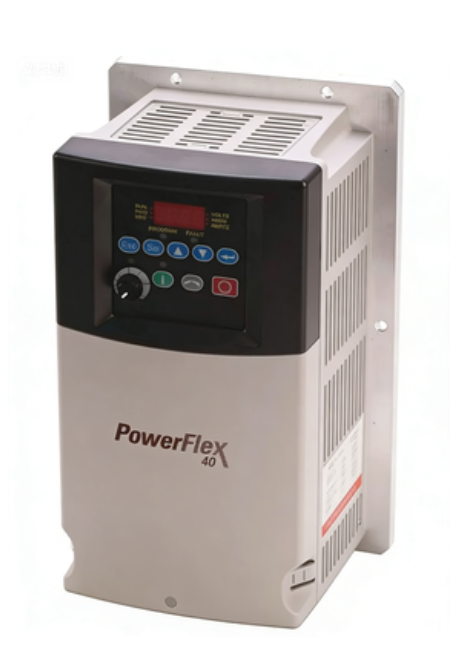

Allen-Bradley 22B-D2P3N104 PowerFlex 40 AC Drive
Product Overview
Parameter Value
Model Number 22B-D2P3N104
Product Name PowerFlex 40 AC Drive
Product Series PowerFlex 40
Product Type PowerFlex 40 AC Drive
Manufacturer Allen-Bradley / Rockwell Automation
General Information
Lifecycle Status Discontinued (June 30, 2025)
Replacement Product 25B-D2P3N104
Frame Size B
Enclosure Rating IP20 (NEMA/UL Type Open)
Mounting Options DIN rail or panel mount
Control Interface Fixed keypad with LED display
Communication Port RS485 (Modbus RTU)
Filter Status No CE-compliant filter
Electrical Specifications
Input Voltage 380-480 VAC (3-phase)
Input Voltage Range 342-528 VAC (±10%)
Input Frequency 50-60 Hz
Output Voltage 0-460 VAC (3-phase)
Output Power 0.75 kW (1 HP)
Output Current 2.3 A
Power Factor 0.98
Frequency Range 0-240 Hz
Overload Protection 150% of rated current for 60 seconds
Control Features
Control Modes V/f control, sensorless vector control
Built-in Functions PID controller, relay pre-charge, removable MOV
PWM Frequency Adjustable Yes (for quiet operation)
Source Control Yes (for wiring flexibility)
Digital Inputs 1 (for start/stop, etc.)
Digital Outputs 1 (relay output)
Environmental Specifications
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Relative Humidity 5% to 95% (non-condensing)
Vibration Resistance IEC 60068-2-6
Shock Resistance IEC 60068-2-27
Physical Characteristics
Dimensions (H×W×D) 21.3 cm × 13.6 cm × 10 cm (8.4×5.4×3.9 in)
Weight 3 kg (6.6 lbs)
Standards and Certifications
Safety UL 508, CSA C22.2 No. 14
EMC CE, C-Tick, CCC, GOST, KC
Applications
  • Fans
  • Pumps
  • Conveyors
  • Material handling systems
  • General industrial automation
Note: This product has been discontinued and will reach end-of-life on June 30, 2025. Replacement model: 25B-D2P3N104.
