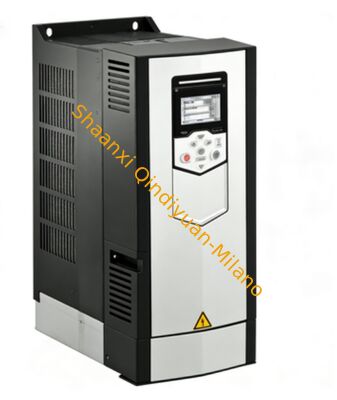

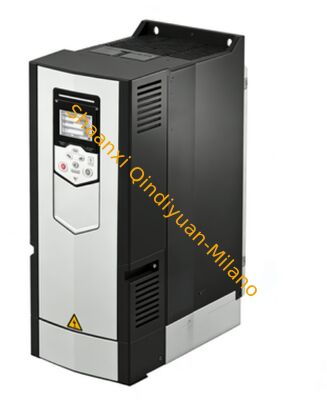

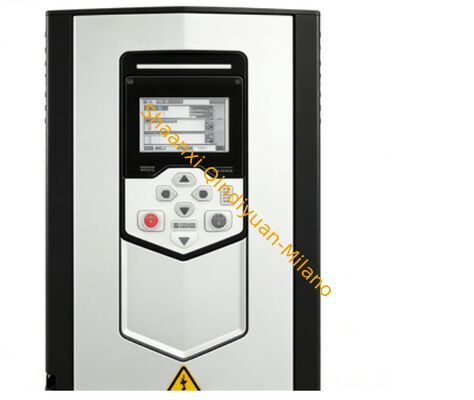

ABB ACS880-01-061A-3 Industrial Drive
LV AC industrial wall-mounted single drive, IEC: Pn 30 kW, 61 A, 400 V
Product Identification
Global Commercial Alias: ACS880-01-061A-3
Product ID: 3AUA0000108021
ABB Type Designation: ACS880-01-061A-3
EAN: 6438177388432
Drive Overview
The ACS880-01 drives are engineered for specific industrial applications including oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. These versatile drives control diverse applications such as cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, pumps and fans.
Delivered in one compact package for straightforward installation and commissioning, the ACS880-01 can be wall-mounted as standard or cabinet-installed as an option. With enclosure classes up to IP55, it suits most environments and installations. Essential built-in features include harmonic filtering choke, with optional brake chopper, EMC filter, communication protocol adapter, functional safety, external output filters and I/O extension modules.
Technical Specifications
Electrical Characteristics
| Parameter |
Normal Use |
Light Overload |
Heavy Duty |
| Output Power |
30 kW |
30 kW |
22 kW |
| Output Current |
61 A |
58 A |
45 A |
Power & Efficiency
Input Voltage: 380 ... 415 V
Frequency: 47.5 ... 63 Hz
Power Consumption: 818 W
Apparent Power Output: 42 kV·A
Efficiency Level: IE2
Standby Loss: 28 W
Environmental Ratings
Degree of Protection: IP21
Enclosure Type NEMA: Type1
Altitude: 4000 m
Operating Humidity: 5 ... 95% RH
Temperature Rating: Maximum 40 °C
Sound Level: 64 dB(A)
Communication & Interfaces
Supported Protocols:
- CAN
- DeviceNet
- EtherNet/IP
- MODBUS
- Other Bus Systems
- PROFIsafe
- PROFIBUS
- PROFINET IO
Hardware Interfaces:
RS-485: 1
USB: 1
Other: 4
Analog Inputs: 2
Analog Outputs: 2
Digital In/Outputs: 6 / 2
Physical Dimensions
Product Dimensions
Height: 580 mm (22.835 in)
Width: 203 mm (7.992 in)
Depth: 274 mm (10.787 in)
Net Weight: 18.6 kg (41.006 lb)
Packaging
Height: 329 mm (12.953 in)
Width: 290 mm (11.417 in)
Depth: 691 mm (27.205 in)
Units: 1 carton
Ordering Information
Customs Tariff Number: 85044087
HS Code: 850440
Invoice Description: ACS880-01-061A-3 PN: 30 kW, IN: 61 A
Made To Order: Yes
Minimum Order Quantity: 1 piece
Selling Unit: piece
Included Components
- Control unit
- PC connection
- Lithium Coin Battery (CR2032, 220 mAh, 3 V, 2 pcs)
