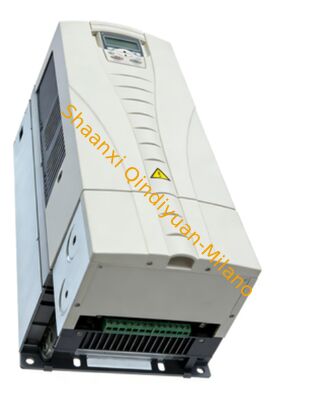

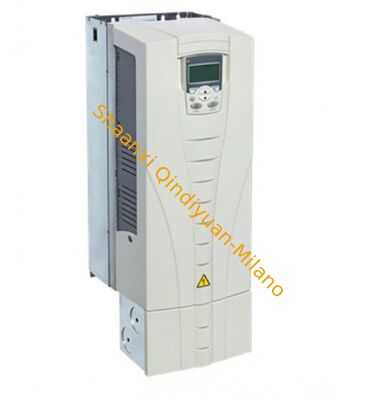

ABB ACS510-01-046A-4 46A,380V,for flange mounting, not including mounting set

1
MOQ
Negotiable
Price
ABB ACS510-01-046A-4 46A,380V,for flange mounting, not including mounting set
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

ABB ACS510 VFD 46A 380V

,

flange mount variable frequency drive

,

industrial VFD drive with warranty
Basic Infomation
Place of Origin: CHINA
Brand Name: ABB
Model Number: ACS510-01-046A-4
Document: Technical_guide_No_7_3AFE64...es.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
Product Overview
Model: ABB ACS510-01-046A-4
Description: 46A, 380V, for flange mounting, not including mounting set
Ordering Information
Customs Tariff Number: 85044099
HS Code: 850440
Invoice Description: ACS510-01-046A-4+C135, 46A, 380V, for flange mounting, not including mounting set
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Quote Only: No
Selling Unit: piece
Dimensions & Weight
Net Weight: 22.5 kg
Depth/Length: 306 mm
Height: 723 mm
Width: 257 mm
Package Units: 0 carton
Technical Specifications
Number of Phases: 3-phase
Degree of Protection: IP21
Enclosure Type NEMA: Type1
Frequency: 47.5 ... 63 Hz
Input Voltage: 380 … 500 V
Mounting Type: Wall-mounted
Output Current: 46 A
Output Power: 22 kW
Efficiency Level: IE2
Drive Module Efficiency (IEC 61800-9-2)
Operating Point
Frequency / Current		 Absolute
Loss		 Relative
Loss		 Efficiency
0 / 25 % 213 W 0.7 % 88.8 %
0 / 50 % 281 W 0.9 % 92.1 %
0 / 100 % 514 W 1.6 % 92.7 %
50 / 25 % 240 W 0.8 % 93.6 %
50 / 50 % 345 W 1.1 % 95.2 %
50 / 100 % 685 W 2.1 % 95.2 %
90 / 50 % 441 W 1.4 % 96.5 %
90 / 100 % 971 W 3 % 96.2 %
Environmental & Classifications
WEEE Category: Product Not in WEEE Scope
UNSPSC: 39122001
