Home /Products/Valve Positioners/Honeywell V5011S2S025 Bidirectional Linear Control Valve With Low Leakage Rate

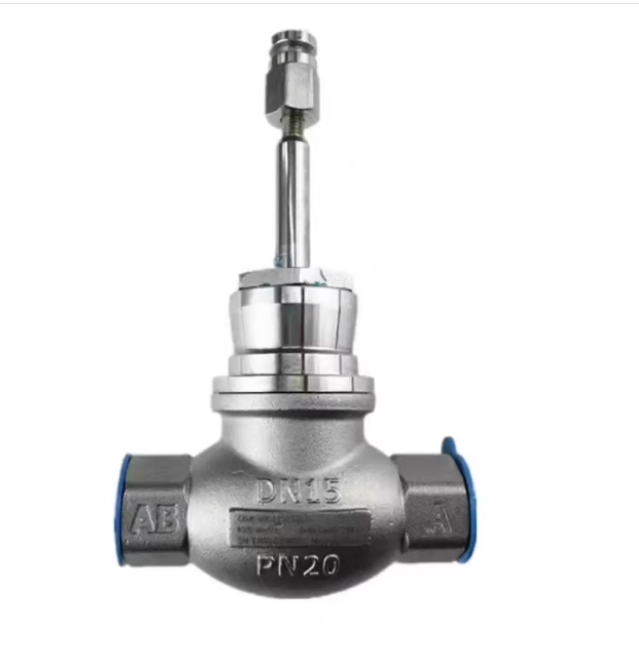

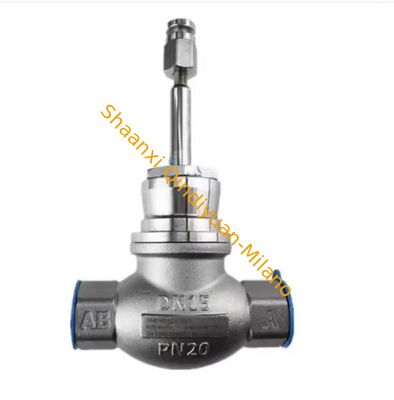

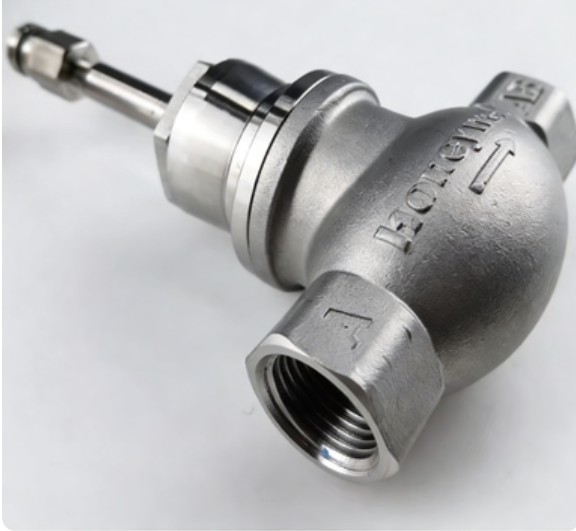

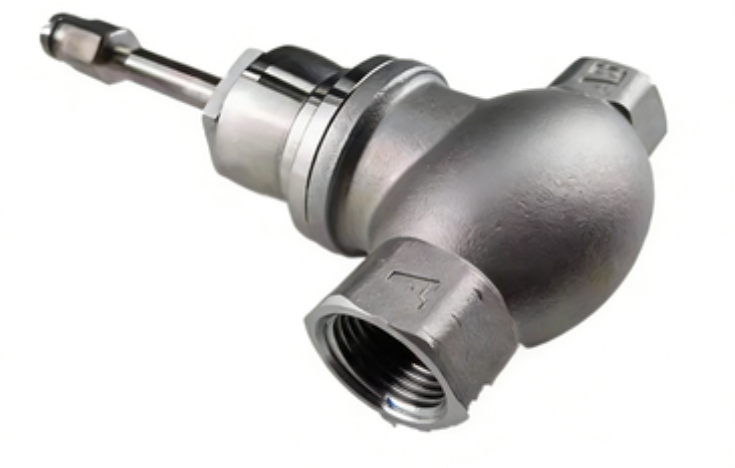

Honeywell V5011S2S025 Bidirectional Linear Control Valve With Low Leakage Rate

1 pcs
MOQ
Negotiable
Price
Honeywell V5011S2S025 Bidirectional Linear Control Valve With Low Leakage Rate
Features Gallery Product Description Chat Now
Features
Specifications
Power_Consumption: 5W
Number_of_Outputs: 10
Application: Spinning Machine, Conveyer Belt
Number_of_Inputs: 14
Expansion_Modules_Supported: True
Point: 14 (8DI+6DO)
Actual Value: Negotiabled Price
Operating_Temperature_Range: -20°C To 60°C
Manufacturer: Siemens
Part No: CL-02DS
Output Points: 16DO
Mounting_Type: DIN Rail
Input Points: 100-2
Actual Price: Negotiabled
CPU_Type: Microprocessor-based
Highlight:

V5011S2S025 Linear Control Valve

,

Bidirectional Linear Control Valve

,

Honeywell V5011S2S025
Basic Infomation
Brand Name: Honeywell
Certification: Brand new original
Model Number: V5011S2S025
Payment & Shipping Terms
Delivery Time: 5-7 DAYS
Payment Terms: T/T
Supply Ability: 1000 PCS
Product Description

The V5011S2W series bidirectional threaded linear valve can be connected to ML74/ML64/ML88 series valve actuators and is widely used in hot and cold water control of HVAC systems. The V5011S2S series bidirectional threaded linear valve can be connected to ML88 series valve actuators and is widely used in steam humidification control. Product

Features and Installation:
  • Low leakage rate
  • Precise stem positioning ensures temperature control
  • Long service life
  • No accessories required, quick installation with actuator
Specifications
Rated Pressure
PN20
Valve Size
DN15 – DN50
Valve Type
Three-way Mixer
Flow Characteristics
Equal Percentage
Leakage Rate
≤0.01% Kvs
Range
50:1
Application Media
Hot and cold water, saturated steam
Medium Temperature
Water: 25~130℃;
Steam: 25~180℃
Medium Flow
DN15/DN20: 10mm;
DN25: 15mm;
DN32/DN50: 20mm
Material Stem Plug
Stainless steel
Contact Thread
(ISO71)
Direction of Action
Stem down for closing
Valve Specifications
Order Number Valve Size Medium Kvs(m3/h) Actuator Closing Pressure (kPa)
        600 N 1800 N
V5011S2S025 DN25 Steam 10 780 (ML8824A0620) 1600 (ML8824A1820)
