MITSUBISHI FR-A840-00380-E2-60 Inverter AC Pn: 11-18.5kW 3x380-500V In max: 38A (15kW 31A)

1
MOQ
Negotiable
Price
MITSUBISHI FR-A840-00380-E2-60 Inverter AC Pn: 11-18.5kW 3x380-500V In max: 38A (15kW 31A)
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

MITSUBISHI FR-A840-00380-E2-60

,

3 phase VFD drive 380-500V

,

industrial AC drive IP20
Basic Infomation
Place of Origin: China
Brand Name: MITSUBISHI
Model Number: FR-A840-00380-E2-60
Document: ib0600626g.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description

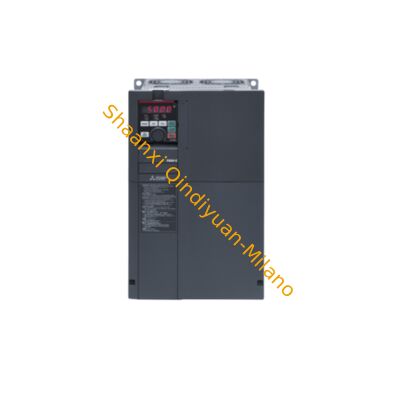

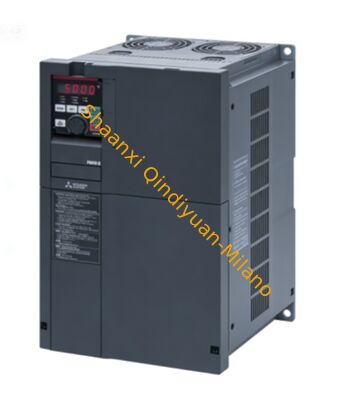

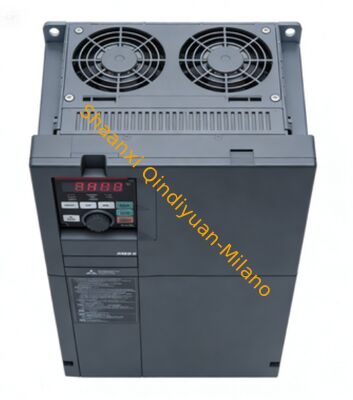

MITSUBISHI FR-A840-00380-E2-60 Inverter

Advanced AC drive inverter with 11-18.5kW power range, 3-phase 380-500V input, and comprehensive control capabilities for industrial applications.

Technical Specifications
ParameterValue
SeriesFR-A SERIES
TypeFR-A800-E INVERTER
Voltage Range380-500V (323-550V permissible)
Current TypeAC
Phases3
Rated Output Current (SLD)38A
Rated Output Current (LD)35A
Rated Output Current (ND)31A
Rated Output Current (HD)23A
Rated Motor Capacity (SLD)18.5kW
Rated Motor Capacity (LD)18.5kW
Rated Motor Capacity (ND)15kW
Rated Motor Capacity (HD)11kW
Control & Performance
Frequency Range: 0.2–590 Hz
Control Methods: VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL
Motor Types: INDUCTION MOTOR, PM MOTOR
Brake Chopper ED: 100%
Regenerative (4Q): NO
Features & Connectivity
Integrated EMC Filter: YES
Safe Torque Off (STO): YES
Integrated DC Choke: NO
Display: FR-DU08 (5 DIGITS LED - 12 SEGMENT)
PLC Function: YES (6K STEPS Program Memory)
I/O Configuration: 12 Digital Inputs, 5 Transistor Outputs, 2 Relay Outputs, 3 Analog Inputs, 2 Analog Outputs
Terminal Type: SPRING CLAMP
Expandable: YES
Communication: RS-485 (Optional), USB (1+1 MINI), Ethernet Port
Built-In Networks: CC-LINK IE FIELD NETWORK BASIC, MODBUS/TCP, SLMP, iQSS
Electrical Characteristics
Leakage Current: 35mA (DELTA) / 2mA (STAR)
Power Loss SLD: 450W
Power Loss LD: 415W
Power Loss ND: 390W
Power Loss HD: 285W
Standby Power: 20W
Certifications & Approvals
CE Compliant UL/cUL Compliant UKCA Compliant ABS BV DNV GL LR NK
EAC: Non-Compliant
Physical Dimensions
DimensionValue
Width220 mm
Height300 mm
Depth190 mm
Weight8.3 kg
Protection & Environmental
Protection Class: IP20
