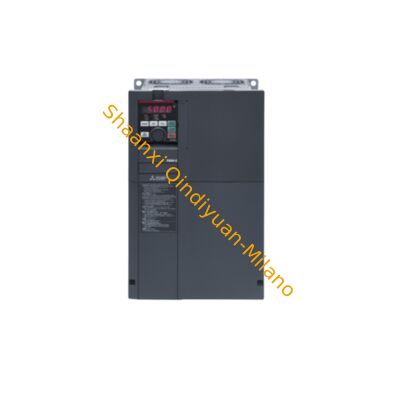

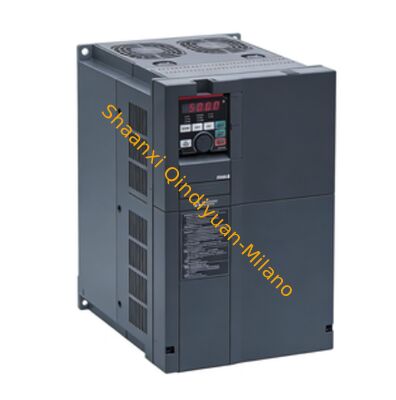

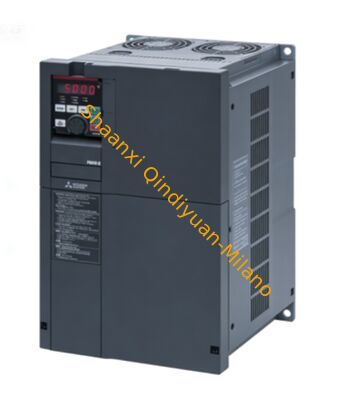

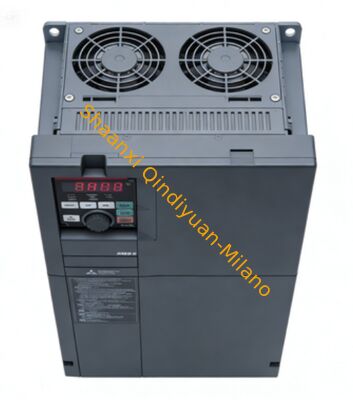

MITSUBISHI FR-F840-00620-2-60 Inverter; Rated Power: 30kW; 3x380-500V;In max: 62A;(30kW; 62A);IP20

1
MOQ
Negotiable
Price
MITSUBISHI FR-F840-00620-2-60 Inverter; Rated Power: 30kW; 3x380-500V;In max: 62A;(30kW; 62A);IP20
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Mitsubishi FR-F840 VFD 30kW

,

380-500V variable frequency drive

,

industrial inverter with IP20
Basic Infomation
Place of Origin: China
Brand Name: MITSUBISHI
Model Number: FR-F840-00620-E2-60
Document: ib0600545f.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
MITSUBISHI FR-F840-00620-2-60 Inverter
Rated Power: 30kW
Voltage Range: 3x380-500V
Maximum Input Current: 62A
Protection Class: IP20
Product Overview

FA-Inverter: Advanced industrial inverter designed for precise motor control and energy efficiency in demanding manufacturing applications.

Technical Specifications
Electrical Characteristics
ParameterValue
Minimum Rated Voltage380V
Minimum Permissible Voltage323V
Maximum Rated Voltage500V
Maximum Permissible Voltage550V
Current TypeAC
Phases3
Output Performance
ParameterSLDLD
Rated Output Current62A57A
Rated Motor Capacity30kW30kW
Control & Operation
ParameterValue
Frequency Range0.2–590 Hz
Control MethodsV/F Control, Soft-PWM/High Frequency PWM, PM Sensorless Vector Control, Magnetic Flux Vector Control
Motor TypesInduction Motor, PM Motor
Integrated EMC FilterYes
Safe Torque Off (STO)Yes
Regenerative (4Q)No
Integrated DC ChokeNo
Interface & Connectivity
ComponentSpecification
DisplayFR-DU08 (5 Digits LED, 12 Segment)
PLC FunctionYes
Program Memory6K Steps
Digital Inputs12
Digital Outputs (Transistor)5
Digital Outputs (Relay)2
Analog Inputs3
Analog Outputs2
IO Terminal TypeSpring Clamp
ExpandableYes
USB Ports1+1 Mini
Ethernet Port1
Built-In NetworksCC-Link IE Field Network Basic, MELSOFT/FA, iQSS, MODBUS/TCP, SLMP, BACNET/IP
Power Characteristics
ParameterValue
Leakage Current35mA (Delta) / 2mA (Star)
Power Loss SLD740W
Power Loss LD675W
Standby Power Consumption20W
Certifications & Compliance
StandardStatus
CECompliant
UL/cULCompliant
EACNon-Compliant
Shipping ApprovalsDNV, ABS
UKCACompliant
Physical Dimensions
DimensionValue
Width250 mm
Height400 mm
Depth190 mm
Weight15 kg
Packaging Materials
MaterialWeight
Cardboard1855 g
Styrofoam482 g
Other Plastic14,476 g
Other Paper0 g
Aluminum0 g
Steel0 g
Wood0 g
Glass0 g
Others0 g
