Home /Products/Variable Frequency Drives VFD/Mitsubishi FR-E840-0230EPB-60 Inverter; Pn:11-15kW;3x380-480V;In max:35A;(11kW;23A);PROFINET;IP20

Mitsubishi FR-E840-0230EPB-60 Inverter; Pn:11-15kW;3x380-480V;In max:35A;(11kW;23A);PROFINET;IP20

1
MOQ
Negotiable
Price
Mitsubishi FR-E840-0230EPB-60 Inverter; Pn:11-15kW;3x380-480V;In max:35A;(11kW;23A);PROFINET;IP20
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Mitsubishi FR-E840 VFD inverter

,

11-15kW PROFINET frequency drive

,

380-480V IP20 motor controller
Basic Infomation
Model Number: FR-E840-0230EPB-60
Document: 000000000000587782_20260202...et.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description

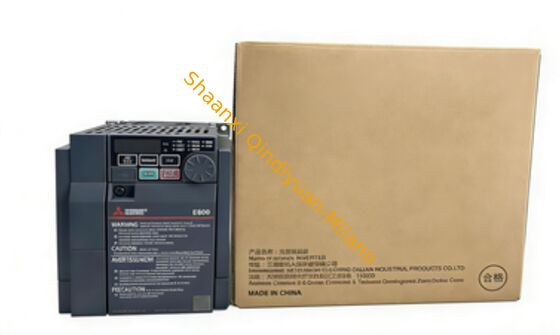

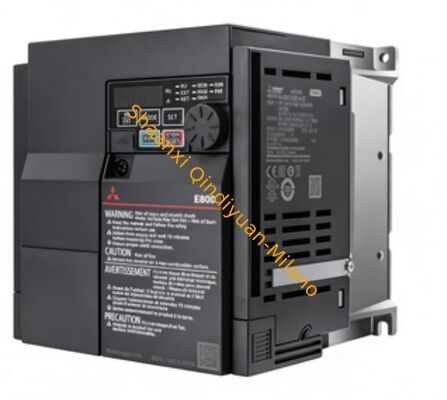

Mitsubishi FR-E840-0230EPB-60 Inverter
Power Rating: 11-15kW
Voltage: 3x380-480V
Maximum Input Current: 35A
Network Protocol: PROFINET
Protection Class: IP20
Technical Specifications
Electrical Characteristics
SeriesFR-E800 SERIES
TypeFR-E800-ETH INVERTER
Minimum Rated Voltage380V
Minimum Permissible Voltage323V
Maximum Rated Voltage480V
Maximum Permissible Voltage528V
Current TypeAC
Phases3
Rated Output Current LD35A
Rated Output Current ND23A
Rated Motor Capacity LD15kW
Rated Motor Capacity ND11kW
Frequency Range0.2–590 Hz
Control & Performance
Control MethodV/F Control, Real Sensorless Vector Control, PM Sensorless Vector Control, Magnetic Flux Vector Control
Motor TypeInduction Motor, PM Motor
Brake Chopper ED100%
Integrated EMC FilterNo
Safe Torque Off (STO)Yes
Regenerative (4Q)No
Integrated DC ChokeNo
Display & Programming
DisplayBuilt-in
Display Type4 Digits LED
PLC FunctionYes
Program Memory2K Steps
Input/Output Configuration
Integrated Digital Inputs2
Digital Outputs (Transistor)0
Digital Outputs (Relay)1
Integrated Analogue Inputs2
Integrated Analogue Outputs0
IO Type of Terminal BlockSpring Clamp
ExpandableYes
Communication Interfaces
RS-485No
USB1 (Mini B)
Ethernet Port2
Built-In NetworkPROFINET, MODBUS/TCP, CC-LINK IE TSN, CC-LINK IE Field Basic
Power & Protection
Leakage Current1.2 mA
Power Loss LD411 W
Power Loss ND240 W
Protection ClassIP20
Certifications & Compliance
CECompliant
UL/cULCompliant
EACCompliant
UKCACompliant
Physical Dimensions
Width220 mm
Height260 mm
Depth190 mm
Weight4.8 kg
Packaging Materials
Cardboard750.00 g
Styrofoam90.00 g
Other Plastic6.77 g
