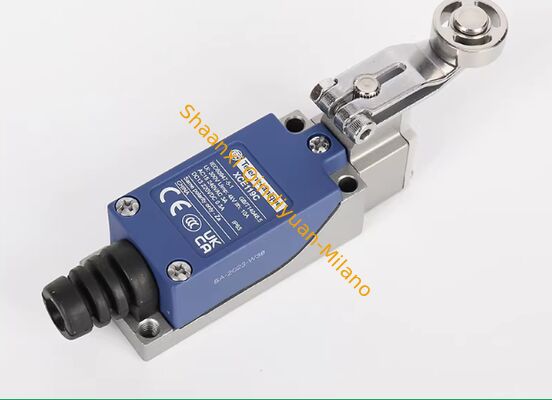

Schneider XCE106C Cat Whisker Type Universal Actuation Limit Switch 1NO 1NC IP65 Spring Return Industrial Travel Switch

1 pcs
MOQ
88 USD
Price
Schneider XCE106C Cat Whisker Type Universal Actuation Limit Switch 1NO 1NC IP65 Spring Return Industrial Travel Switch
Features Gallery Product Description Chat Now
Features
Specifications
Protectionrating: IP65
Mountingtype: Panel/Surface Mount
Body Material: Die-cast Aluminum/Plastic
Weigth: Approx.22g
Installation: Flush / Non-flush
Operating Force: 0.5N To 5N
Certifications: CE, UL, RoHS
Application: Position Detection, Safety Interlock
Ip Grand: IP68
Indicator: LED
Standardscompliance: IEC, UL, CE
Voltage: AC220V
Mechanical Life: 1,000,000 Cycles
Ip Protaction: IP65
Operatingforce: 0.5N To 5N
Electricalrating: Typically 10A At 250VAC
Current Rating: 100mA To 300mA
Mounting Type: Panel/Surface Mount
Operating Temperature: -25°C To 85°C
Standard Cable: 1.1m
Contact Resistance: ＜15mΩ
Protection Rating: IP67 / IP68
Aluminum: Grey And Nature Color
Output Type: PNP / NPN / NO / NC
Switching Frequency: Up To 10kHz
Lever: Stainless Steel 304
Ingressprotection: IP65
Contactor: Silver And Gold
Ambient Temperature: -40℃~70℃; ＜95%RH
Weight: Approx.92g
Insulation Resistance: ＞100MΩ（＜500VDC）
Type: Mechanical/Electrical
Operating Frequency: Max 30 Operations/min
Enclosurerating: IP65
Contactmaterial: Silver Alloy
Switching Current: 5A
Operating Ambient: -5℃~+65℃; ＜95%RH
Highlight:

Schneider Cat Whisker limit switch

,

1NO 1NC industrial travel switch

,

IP65 spring return limit switch
Basic Infomation
Brand Name: Schneider
Model Number: XCE106C
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description
1. Core parameters (accurately adapt to quotation/logistics/customs declaration)
  • Weight: Net weight approximately 0.185 kg; Gross weight of a single unit including packaging approximately 0.22 kg (Batch packaging: 50 units/box approximately 9.194 kg, 800 units/box approximately 155.104 kg)
  • Operating head: Steel roller rocker, robust and wear-resistant structure, spring automatic return, bidirectional side triggering, smooth and precise triggering action [7]
  • Contact configuration: 1NO+1NC (one open and one closed), snap action contact, terminal resistance 25MΩ, reliable contact
  • Electrical specifications: AC-15 240V/3A; DC-13 220V/0.3A, rated current can be adapted to various industrial loads, conforming to IEC 60947-5-1 standard [10]
  • Protection level: IP65 dustproof and waterproof, conforming to IEC Standard 60529, suitable for harsh environments such as workshops and outdoor dusty, humid areas.
  • Environmental adaptability: Operating temperature -25℃~+70℃ (wide temperature range), shock resistance 30gn/11ms, vibration resistance ±3mm (10-55Hz), strong stability.
  • Wiring method: Screw terminal, compatible with 1.5mm² cables, convenient wiring, flexible installation.
  • Certification standards: CE, CCC certified, conforms to GB 14048.5 standard, meets import compliance requirements of many countries.
  • Export instructions: ❌ No built-in battery, no supercapacitor, no lithium battery; ❌ Not a dangerous good, declared as general cargo for export.
2. Product features (sales pitch/details page focus)
  • Material advantages: Steel rollers + metal shell, vibration resistant, corrosion resistant, durable, suitable for demanding industrial environments, mechanical life up to 10,000,000 cycles, electrical life 800,000 cycles.
  • Triggering Advantages: Bidirectional side triggering, sensitive action, precise positioning, automatic spring reset, suitable for high-frequency motion scenarios, and can replace the traditional ME 8104 model.
  • Protection Advantages: IP65 dustproof and waterproof, unaffected by workshop oil, dust, and humidity, wide applicability, and reduced maintenance costs.
  • Universal Compatibility: Widely used in industrial automation scenarios such as machine tools, automated production lines, conveying equipment, lifting machinery, and packaging machinery, with strong compatibility.
  • Compliance Advantages: Original and genuine product, conforms to international industrial standards, complete certifications, no compliance risks for export, stable stock and easy to maintain.
