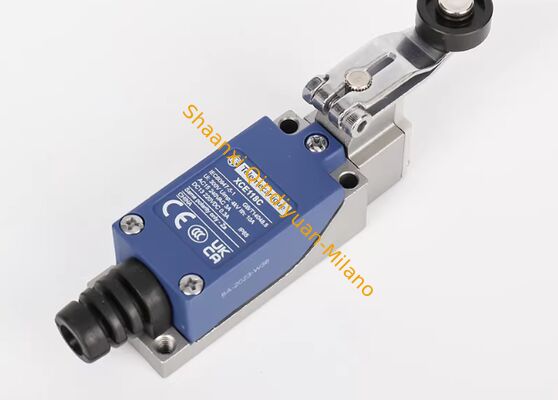

Schneider XCE118C Short Roller Lever Bi‑Directional Limit Switch

Product Overview

Core Advantages

• Short Roller Lever (30 mm): Compact design for tight spaces; thermoplastic roller for smooth actuation.
• Bi‑Directional Operation: Triggers from clockwise/counter‑clockwise lateral approach (2 directions).
• Spring Return: Automatically resets when contact is lost, enabling cyclic operation.
• 1NO + 1NC Contact: Combined normally open/closed for flexible circuit design.
• IP65 Protection: Dust‑tight and splash‑proof for harsh workshop environments.
• Snap Action & High Reliability: Fast, precise switching; 120 cycles/min max operating rate.
• Compact & Durable: Plastic housing + metal components; withstands vibration and impact.
• Easy Installation: Surface‑mount; screw terminals for 6–9 mm cables.

Technical Specifications

Application Industries & Scenarios

Main Application Fields

1. Machine Tools: CNC machines, lathes, milling machines for travel limit and tool positioning.
2. Conveying & Logistics: Belt conveyors, sorting lines, AGVs for end‑stop and anti‑collision.
3. Packaging Machinery: Wrappers, cartoners, labeling machines for position synchronization.
4. Automation Lines: Assembly lines, robotic cells for part presence and stroke control.
5. Elevators & Cranes: Overhead cranes, hoists for safety limit and over‑travel protection.
6. Textile & Printing: Looms, printing presses for roll tension and edge detection.

Image Reference

• Application Photos: Mounted on machine tool slides, conveyor frames, and robotic arms.
• Warehouse Photos: Standard packaging, labeled stock, and quality inspection in industrial warehouses.
