Pepperl+Fuchs NCN4-12GM35-NO Inductive Proximity Sensor

1 pcs
MOQ
Negotiable
Price
Pepperl+Fuchs NCN4-12GM35-NO Inductive Proximity Sensor
Features Gallery Product Description Chat Now
Features
Specifications
Part Type: Sysmac CPM2A
Operatingtemperaturerange: -40°C To 85°C
Sensor Type: Proximity, Temperature, Pressure, Optical, Ultrasonic, Vibration
Weight: 0.64 KG
Memorycapacity: Typically 1KB To 1MB
Powersupply: 12-24V DC
Mountingtype: DIN Rail Or Panel Mount
Communicationprotocol: Modbus, Profibus, Ethernet/IP
Protection Rating: IP65 To IP69K
Application: Automation, Manufacturing, Process Control, Robotics
Operatingtemperature: -40°C To 85°C
Responsetime: 1ms To 100ms
Dimensions: Varies By Model, E.g., 50mm X 20mm X 15mm
Supplycurrent: 10mA To 100mA
Communication Protocol: Modbus, Profibus, CANopen, Ethernet/IP
Highlight:

Pepperl+Fuchs inductive proximity sensor

,

NCN4-12GM35-NO industrial sensor

,

proximity sensor with 35mm range
Basic Infomation
Brand Name: PEPPERL+FUCHS
Model Number: NCN4-12GM35-NO
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 1000 pcs
Product Description

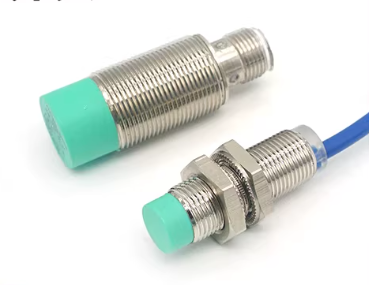

Pepperl+Fuchs NCN4-12GM35-NO Inductive Proximity Sensor
High-performance NAMUR intrinsically safe inductive proximity sensor designed for hazardous area applications with SIL 2 safety certification and explosion-proof capabilities.
Product Overview

This 2-wire NAMUR inductive proximity switch provides reliable non-contact detection in demanding industrial environments with comprehensive safety certifications for Zone 0/1/2 hazardous areas.

Technical Specifications
Parameter Specifications
Product Type Inductive Proximity Switch (NAMUR Intrinsically Safe)
Model NCN4-12GM35-NO
Detection Distance Rated: 4 mm (non-flush)
Ensured: 0~3.24 mm
Actual: 3.6~4.4 mm
Output Type 2-wire NAMUR; Normally Open (NO)
Mounting Method Non-flush
Housing Diameter: 12 mm
Material: Stainless Steel 1.4305 (AISI 303)
Sensing Surface: PBT
Power Supply NAMUR Circuit Voltage: 8.2 V DC
Internal Resistance: ≈ 1 kΩ
Switching Frequency 0~800 Hz
Hysteresis Typical: 5% (1%~10%)
Current Consumption No Target: ≥ 3 mA
Target: ≤ 1 mA
Protection Reverse Polarity Protection, Short Circuit Protection
Status Indication 360° Yellow LED
Protection Rating IP66 / IP67
Operating Temperature -25°C ~ +100°C
Dimensions Diameter: 12 mm, Total Length: 35 mm
Connection Common: M12*1 4-pin connector (-V1) or 2m/10m cable (-2M/-10M)
Safety & Certification
SIL 2 Certification: IEC 61508 compliant with MTTFd=2520 years
Explosion-proof Certification: Suitable for Zone 0/1/2 hazardous areas (requires safety barrier)
Key Features
  • NAMUR intrinsically safe design for hazardous environments
  • Stainless steel housing for corrosion resistance
  • High switching frequency up to 800 Hz
  • 360° status indication with yellow LED
  • IP66/IP67 protection rating for harsh conditions
  • Wide operating temperature range (-25°C to +100°C)
  • Built-in reverse polarity and short circuit protection
