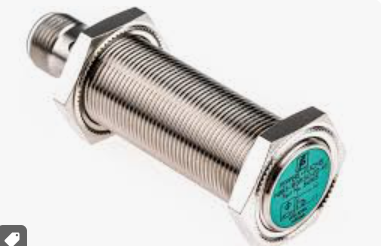

NBB15-30GM50-E0 Pepperl+Fuchs NPN M30 Flush Inductive Proximity Sensor 15mm

The NBB15-30GM50-E0 is a cylindrical inductive proximity sensor developed by Pepperl+Fuchs. Based on electromagnetic induction principle, it detects metal objects without physical contact. It detects workpiece presence, position feedback, travel limit and counting signals for automated machinery. This flush mount model can be fully embedded into metal mounting brackets without sensing distance loss. It outputs NPN switching signal once metal targets enter the 15 mm detection range and transmits signals to PLC or industrial controllers. Non-contact working mode avoids mechanical wear and enables stable long-term continuous operation on automation production lines.

• ✅ Flush mount M30 housing, fully recessable into metal surface, saves installation space and prevents collision damage
• ✅ Rated sensing distance up to 15 mm, stable detection for steel metal targets
• ✅ 3-wire DC NPN Normally Open output, compatible with all mainstream global PLC brands
• ✅ Built-in multi-protection circuit: reverse polarity protection, short-circuit protection, overload protection
• ✅ Nickel-plated brass cylindrical housing, excellent mechanical strength and corrosion resistance
• ✅ Clear yellow LED status indicator for fast on-site fault diagnosis
• ✅ IP67 protection grade, withstands dust, splashing water and cutting fluid
• ✅ Outstanding anti-electromagnetic interference capability, works steadily in workshops with inverters and motors
• ✅ Complies with IEC 60947-5-2 international industrial standard

• Machine tools
• Packaging machinery
• Automotive assembly lines
• Conveying & logistics equipment
• Plastic machinery
• Textile machinery
• Automated warehouse
• Robotics
• Printing machinery

• Conveyor belt metal workpiece counting & presence detection
• Hydraulic cylinder / pneumatic cylinder travel limit monitoring
• Position confirmation for automated fixtures
• Rotational speed detection for gears and rollers
• Sorting and stacking control for intelligent warehouse

• Condition: Brand New & Original
• Stock status: Please send inquiry for availability & lead time
• Warranty: 12 months
• We provide full series Pepperl+Fuchs sensors for one-stop automation sourcing
