Honeywell 40PC100G2A 100PSI Industrial Sensors With Amplified Output IP65 Protection

📋 Product Overview

The Honeywell 40PC100G2A is a vented‑gauge board‑mount pressure sensor belonging to the 40PC series. It measures 0‑100 PSI gas pressure and delivers fully amplified, temperature‑compensated 0.5‑4.5 VDC analog output signal directly to PLC, controller or data acquisition units without extra signal conditioning circuits. Built with monolithic silicon piezoresistive chip, this compact DIP‑6 sensor realizes pressure detection for industrial gas systems, pneumatic equipment and test benches, with IP65 environmental protection for harsh‑site deployment.

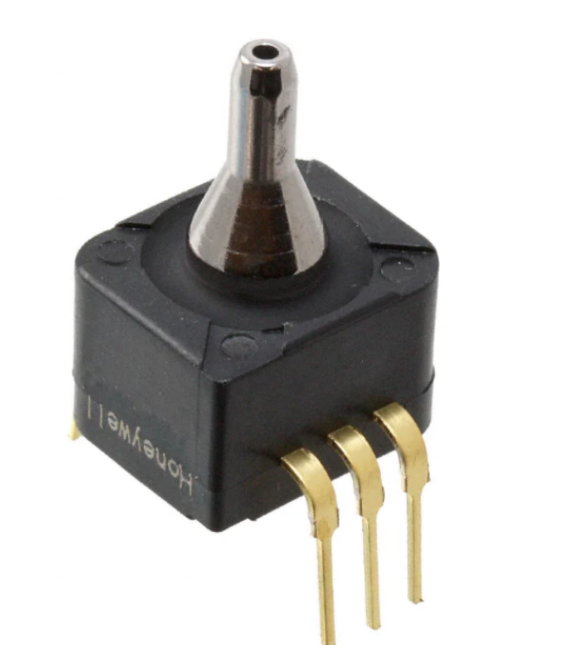

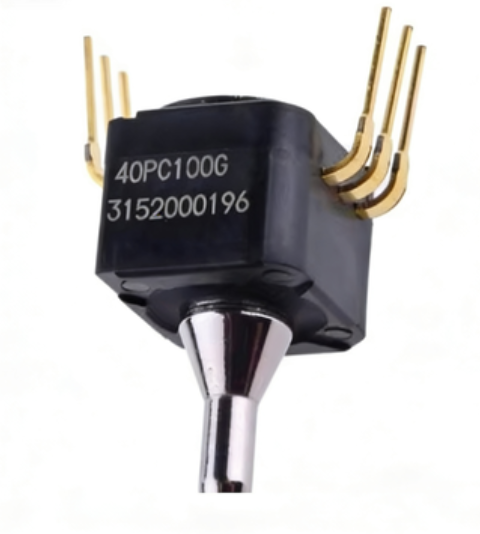

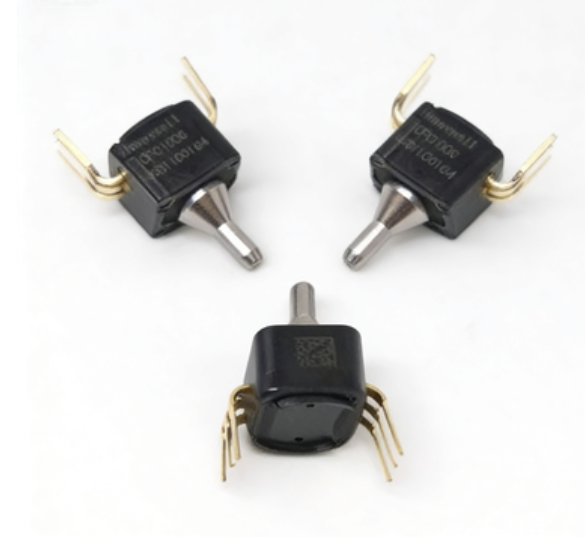

📎 Suggested image:Product physical photo of Honeywell 40PC100G2A

✨ Product Advantages / Core Features

1. Fully Amplified & Temperature‑compensated Output Integrated zero‑span calibration, temperature compensation and signal amplification on single silicon chip; no external signal‑processing circuit required, simplifies system design.
2. Fast Response & High Stability 1 ms rapid response time; typical hysteresis & repeatability: 0.15 %FSS, ensures stable pressure reading under dynamic working condition.
3. Wide Working Temperature Range Operating range:‑45 ℃ ~ +125 ℃, adapts to extreme cold and high‑temperature industrial working environments.
4. Compact 6‑Pin DIP Through‑hole Package Miniature dimension 13.2 ×11.2 ×19.8 mm, fits limited PCB installation space; barbless pressure port supports O‑ring sealing assembly.
5. IP65 Protection Grade & Good Media Compatibility Resists dust and splash water; compatible with multiple dry gases, suitable for general industrial pneumatic media.
6. Low‑power & RoHS‑compliant Max supply current only 10 mA; RoHS compliant, meets global industrial environmental‑protection requirements.

📊 Technical Parameters

🏭 Application Industries & Scenarios

Target Industries ‑Industrial Automation ‑Pneumatic & Hydraulic Equipment ‑Test & Measurement Equipment ‑HVAC & Refrigeration ‑General‑process Monitoring

Typical Application Scenarios

1. Pneumatic system pressure monitoring for automated production lines
2. Gas pressure detection for laboratory test benches
3. Pressure feedback of compressors and air‑handling equipment
4. Industrial equipment condition monitoring & data logging
5. Dry‑medium pressure measurement in general‑process control

Additional Logistics Reference

‑Single unit weight:0.018 kg ‑Property:E‑component with battery‑free, non‑magnetic
