Home /Products/Programmable Logic Controller PLC/Beckhoff C6032 PLC Industrial PLC with Intel Celeron/Pentium/i3/i5/i7, Up to 64 GB DDR4, and TwinCAT 3 Control Software

Beckhoff C6032 PLC Industrial PLC with Intel Celeron/Pentium/i3/i5/i7, Up to 64 GB DDR4, and TwinCAT 3 Control Software

1 pcs
MOQ
Negotiable
Price
Beckhoff C6032 PLC Industrial PLC with Intel Celeron/Pentium/i3/i5/i7, Up to 64 GB DDR4, and TwinCAT 3 Control Software
Features Gallery Product Description Chat Now
Features
Specifications
Mounting_Type: DIN Rail
Part No: MVI56E-MCM
Operating_Temperature_Range: -20°C To 60°C
Operatingtemperaturerange: -20°C To 60°C
Safetyfeatures: Watchdog Timer, Fault Diagnostics
Displaytype: LCD Or LED Indicators
Powersupply: 24V DC Or 110/220V AC
Productname: Programmable Logic Controller
Communicationprotocols: Ethernet/IP, Modbus, Profibus, DeviceNet
Power Supply Voltage: AC240-360V.
Mpu Points: 12 (8DI + 4DO)
Mountingtype: DIN Rail Or Panel Mount
Input Points: 36 Points.
Number_of_Inputs: 14
Safetystandards: IEC 61508, ISO 13849
Color: Normal
Operating_Temperature: -20 To 60 °C
Point: 14 (8DI+6DO)
Operatingtemperature: -20°C To 60°C
Communicationprotocol: Modbus, Ethernet/IP, Profibus
Points: 40 (24DI+16DO)
Number_of_I_O_Points: 24 Inputs / 16 Outputs
Input_Type: Digital And Analog
Manufacturer: Siemens
Memorycapacity: Up To Several MB For Program And Data
Model: S7-1200
Inputtype: Digital And Analog
Weight: 0.5 Kg
Displayinterface: Optional LCD Or LED Indicators
Expansioncapability: Modular Expansion Supported
Actual Value: Negotiabled Price
CPU_Speed: 100 MHz
Processortype: Microprocessor-based
Application: Oil And Gas Factory
Highlight:

Intel Celeron/Pentium/i3/i5/i7 Processor Beckhoff C6032 PLC

,

64 GB DDR4 Memory Programmable Logic Controller

,

EtherCAT
Basic Infomation
Brand Name: Beckhoff
Model Number: C6032
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 1000 pcs
Product Description

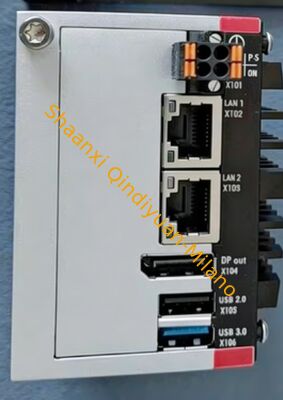

Beckhoff C6032 PLC - Industrial Control Computer
High-performance industrial PLC designed for demanding automation applications with flexible expansion capabilities and robust construction.
Core Hardware Specifications
Processor Options
  • C6032-0060: 6th/7th Generation Intel Celeron/Pentium/i3/i5/i7 (Dual-core to Quad-core)
  • C6032-0070: 8th/9th Generation Intel Celeron/Pentium/i3/i5/i7 (Dual-core to Octa-core)
  • C6032-0080: 11th Generation Intel Celeron 6600HE (2 cores)/i3-11100HE (4 cores)/i5-11400HE (6 cores)/i7-11850HE (8 cores)
  • C6032-0090: 10th/11th Generation Low-Power i3/i5/i7 for low-power, highly integrated scenarios
Memory and Storage
Memory 2 × SODIMM DDR4 slots, supports up to 64 GB (C6032-0080)
Storage 2 × M.2 SSD slots, standard 40 GB, maximum 1280 GB; supports RAID 1 configuration
Physical Dimensions
Dimensions 132 × 133 × 102 mm (W × H × D, without mounting plate)
Weight Approximately 2.1 kg (without mounting plate); 2.35 kg (with mounting plate)
Power and Thermal Management
Power Supply 24 V DC (22-30 V DC wide voltage range), supports external UPS (CU81xx series)
Cooling System Intelligent fan + passive cooling, optimized for industrial environments
Interfaces and Connectivity
Standard Interfaces (C6032-0080)
Ethernet Ports 3 × 2.5Gbps (100/1000/2500BASE-T) + 1 × 1Gbps (100/1000BASE-T), total 4 ports
Display Outputs 2 × DisplayPort (4K@60Hz)
USB Ports 2 × USB 3.2 Gen 2 + 2 × USB 3.2 Gen 1
Other Features Status LEDs (Power / Storage / Running), built-in real-time clock
Expansion Capabilities
PCIe Compact Slots: 2 slots for Beckhoff dedicated modules, enabling flexible system expansion:
  • Additional Ethernet Ports (RJ45)
  • Serial Communication (RS232/422/485)
  • Fieldbus Interfaces (EtherCAT, PROFINET, Modbus, etc.)
  • Digital/Analog I/O, CP-Link4, and specialized industrial protocols
Software and Control Systems
Operating Systems Windows 10/11 IoT Enterprise LTSC, Windows Server 2022, TwinCAT/BSD
Control Software TwinCAT 3 (full-featured PLC, NC, CNC, IoT, HMI capabilities)
Programming Languages IEC 61131-3, C/C++, .NET, Python, and multiple development environments
Environmental Specifications and Certifications
Operating Temperature 0°C to +55°C (some CPUs support up to +60°C)
Storage Temperature -25°C to +85°C
Humidity Range 5% to 95%, non-condensing
Protection Rating IP20
Vibration/Shock Resistance Compliant with EN 60068-2-6 / EN 60068-2-27 standards
Security Features Integrated fTPM 2.0, hardware encryption support
Certifications CE, UL, cULus, ATEX/IECEx for industrial safety compliance
