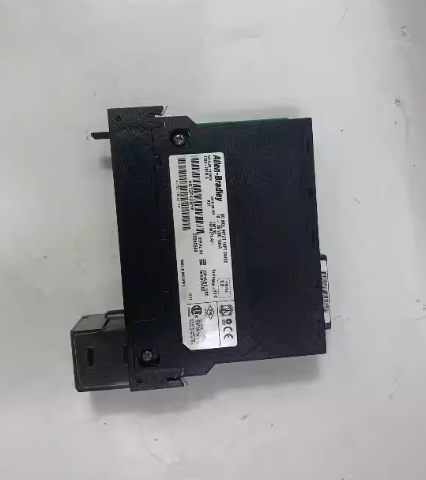

Allen Bradley 1756-IB16I Programmable Logic Controller PLC With 16 Channels

What it does Allen‑Bradley 1756‑IB16I is a ControlLogix series individually isolated digital DC input module for PLC system. It collects 10‑30 VDC on‑off status signals from field sensors, limit switches, push‑buttons and other discrete devices, and transmits digital status data to ControlLogix controller via backplane bus. Each channel features point‑to‑point galvanic isolation to eliminate ground‑loop interference. It serves as signal acquisition front‑end for industrial automation control systems, realizing reliable field digital signal monitoring for manufacturing and process equipment.

• ✅ 16‑Channel Individual Point‑by‑Point Isolation: 250 V continuous isolation between each input channel and backplane, effectively suppress ground‑loop and common‑mode interference, avoid signal distortion from different field ground potentials
• ✅ Adjustable Input Filter: Software‑configurable filter time (0 ms /1 ms /2 ms /9 ms /18 ms) in Studio 5000, filters on‑site electrical noise and contact bounce interference
• ✅ Visual LED Diagnostic Indicators: Separate LEDs for channel input status, module health and communication status, fast on‑site fault location without programming tool
• ✅ Supports Sinking & Sourcing Input Signals: Compatible with mainstream 24 VDC field sensors and switches, flexible field wiring options
• ✅ Removable Terminal Block (RTB): Works with 1756‑TBNH /1756‑TBSH terminal blocks; hot‑swap module without re‑wiring field cables, convenient for maintenance and replacement
• ✅ Change‑of‑State (COS) Event Trigger: Supports event‑driven data upload, reduces backplane communication load, improves system response efficiency
• ✅ Wide Industrial Temperature Adaptation: Stable performance under cabinet installation environment, suitable for heavy‑duty factory conditions
• ✅ Global Industrial Certifications: CE, UL, CSA, ATEX / FM Class I Div.2 approval, applicable for global export projects and hazardous zone installation

Applicable Industries 🏭 Factory Assembly & Production Automation ⚙️ Machine‑tool & Metal‑processing Equipment 🏗️ Material Conveying & Logistics Handling System 🛢️ Oil & Gas, Hazardous‑location Process Control 🚢 Marine & Off‑shore Automation System 🌾 Food & Beverage Processing Line ❄️ HVAC & Water Treatment Control System ⚡ Power Plant Auxiliary Control Cabinet

Typical Application Scenarios

1. Collect switch signals from proximity sensors, photoelectric sensors, limit switches, emergency stop buttons
2. Discrete signal acquisition for ControlLogix PLC local or remote I/O rack
3. Automation projects requiring high anti‑interference performance for field wiring
4. Machine OEM export equipment for worldwide market
5. Retrofit & spare‑part replacement of existing ControlLogix automation systems
