Home /Products/Valve Positioners/Siemens Valve Positioner 6DR5320-0NN00-0AA0 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA/FOUNDATION Fieldbus) 4~20mA / Bus Feedback

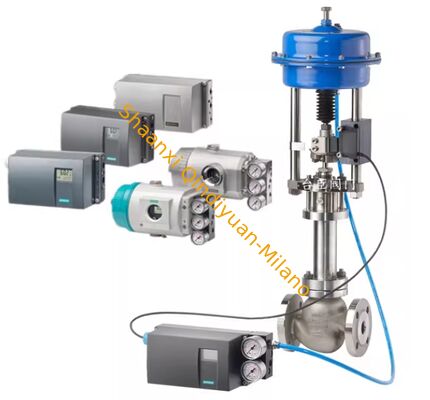

Siemens Valve Positioner 6DR5320-0NN00-0AA0 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA/FOUNDATION Fieldbus) 4~20mA / Bus Feedback

1pcs
MOQ
Negotiable
Price
Siemens Valve Positioner 6DR5320-0NN00-0AA0 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA/FOUNDATION Fieldbus) 4~20mA / Bus Feedback
Features Gallery Product Description Chat Now
Features
Specifications
Material: Aluminum Alloy / Stainless Steel
Applications: Control Valves In Oil & Gas, Chemical, Power Plants, Water Treatment
Input Signal: 4-20 MA / 0-10 V / HART / Fieldbus
Operating Temperature Range: -40°C To 85°C (-40°F To 185°F)
Output Signal: Pneumatic Pressure (3-15 Psi Or 0.2-1.0 Bar)
Type: Electro-pneumatic / Pneumatic / Digital
Communication Protocol: HART / FOUNDATION Fieldbus / PROFIBUS
Control Accuracy: ±1% Of Full Scale
Feedback Signal: Potentiometer / LVDT / Digital Feedback
Response Time: Less Than 1 Second
Ingress Protection: IP65 / IP67
Supply Pressure: 20-30 Psi (1.4-2.0 Bar)
Mounting: Direct Mount On Valve Actuator
Power Supply: 24 V DC / 110-220 V AC (depending On Model)
Highlight:

Siemens valve positioner 24V DC

,

PROFIBUS PA valve positioner

,

4~20mA feedback valve positioner
Basic Infomation
Place of Origin: China
Brand Name: Siemens
Model Number: 6DR5320-0NN00-0AA0
Document: A700000008510566.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20PCS 1WEEK
Product Description
Siemens Valve Positioner 6DR5320-0NN00-0AA0
Supply Voltage: 24V DC (19.2~30V DC)
Input Signal: 4~20mA / Bus (PROFIBUS PA/FOUNDATION Fieldbus)
Output Signal: 4~20mA / Bus Feedback
Actuator Type: Double-Acting
Performance Level: High Performance Bus Type
Product Specifications
Product Series Part Number Supply Voltage Input Signal Output Signal Air Supply Pressure Max Working Pressure Protection Class Ambient Temperature Key Features
Siemens Valve Positioner 6DR5010-0NG00-0AA0 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA 0.4~0.7 MPa 1.0 MPa IP65/IP66/IP67 -40°C~+70°C Basic Type; Single-Acting; Non-Explosion Proof; 2-wire/4-wire Optional
Siemens Valve Positioner 6DR5010-0NN00-0AA0 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA 0.4~0.7 MPa 1.0 MPa IP65/IP66/IP67 -40°C~+70°C Basic Type; Double-Acting; Non-Explosion Proof; 2-wire/4-wire Optional
Siemens Valve Positioner 6DR5010-0EN00-0AA0 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA 0.4~0.7 MPa 1.0 MPa IP65/IP66/IP67 Ex ia IIC T6 Ga / -40°C~+70°C Explosion Proof; Single-Acting; Ex Certified; 2-wire System
Siemens Valve Positioner 6DR5020-0NG00-0AA0 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA) 4~20mA / Bus Feedback 0.4~0.7 MPa 1.0 MPa IP65/IP66/IP67 -40°C~+70°C Bus Type; Single-Acting; PROFIBUS PA; Non-Explosion Proof
Siemens Valve Positioner 6DR5020-0NN00-0AA0 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA) 4~20mA / Bus Feedback 0.4~0.7 MPa 1.0 MPa IP65/IP66/IP67 -40°C~+70°C Bus Type; Double-Acting; PROFIBUS PA; Non-Explosion Proof
Siemens Valve Positioner 6DR5020-0EN00-0AA0 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA) 4~20mA / Bus Feedback 0.4~0.7 MPa 1.0 MPa IP65/IP66/IP67 Ex ia IIC T6 Ga / -40°C~+70°C Bus Type; Single-Acting; PROFIBUS PA; Ex Certified
Siemens Valve Positioner 6DR5310-0NG00-0AA0 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA 0.3~0.7 MPa 1.6 MPa IP65/IP66/IP67 -40°C~+80°C High Performance; Single-Acting; High Precision; Non-Explosion Proof
Siemens Valve Positioner 6DR5310-0NN00-0AA0 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA 0.3~0.7 MPa 1.6 MPa IP65/IP66/IP67 -40°C~+80°C High Performance; Double-Acting; High Precision; Non-Explosion Proof
Siemens Valve Positioner 6DR5310-0EN00-0AA0 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA 0.3~0.7 MPa 1.6 MPa IP65/IP66/IP67 Ex ia IIC T6 Ga / -40°C~+80°C High Performance; Single-Acting; Ex Certified; High Precision
Siemens Valve Positioner 6DR5320-0NG00-0AA0 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA/FOUNDATION Fieldbus) 4~20mA / Bus Feedback 0.3~0.7 MPa 1.6 MPa IP65/IP66/IP67 -40°C~+80°C High Performance Bus Type; Single-Acting; Multi-Bus; Non-Explosion Proof
Siemens Valve Positioner 6DR5320-0NN00-0AA0 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA/FOUNDATION Fieldbus) 4~20mA / Bus Feedback 0.3~0.7 MPa 1.6 MPa IP65/IP66/IP67 -40°C~+80°C High Performance Bus Type; Double-Acting; Multi-Bus; Non-Explosion Proof
Siemens Valve Positioner 6DR5320-0EN00-0AA0 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA/FOUNDATION Fieldbus) 4~20mA / Bus Feedback 0.3~0.7 MPa 1.6 MPa IP65/IP66/IP67 Ex ia IIC T6 Ga / -40°C~+80°C High Performance Bus Type; Single-Acting; Multi-Bus; Ex Certified
Key Product Features
  • High-performance bus communication with PROFIBUS PA and FOUNDATION Fieldbus support
  • Double-acting actuator configuration for robust valve control
  • Wide operating temperature range from -40°C to +80°C
  • High IP65/IP66/IP67 protection rating for harsh industrial environments
  • Advanced 4~20mA analog and digital bus feedback signals
  • Optimized air supply pressure range of 0.3~0.7 MPa
  • Enhanced maximum working pressure of 1.6 MPa
