Home /Products/Valve Positioners/Siemens Valve Positioner 6DR5310-0EN00-0AA0 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA

Siemens Valve Positioner 6DR5310-0EN00-0AA0 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA

1pcs
MOQ
Negotiable
Price
Siemens Valve Positioner 6DR5310-0EN00-0AA0 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA
Features Gallery Product Description Chat Now
Features
Specifications
Output Signal: Pneumatic Signal To Actuator
Function: Control Valve Actuator Position
Feedback: Position Feedback (potentiometer Or Digital)
Material: Aluminum Alloy / Stainless Steel
Mounting: Direct Mount / Remote Mount
Accuracy: ±1% Of Full Scale
Response Time: Less Than 1 Second
Protection Class: IP65 / IP67
Power Supply: 24 VDC / 110 VAC / 220 VAC
Supply Pressure: 3-7 Bar (45-100 Psi)
Operating Temperature: -40°C To 85°C (-40°F To 185°F)
Type: Electro-pneumatic / Pneumatic / Digital
Applications: Process Control, Flow Regulation, Pressure Control
Input Signal: 4-20 MA / 0-10 V / HART / Fieldbus
Highlight:

Siemens valve positioner 24V DC

,

valve positioner 4-20mA signal

,

industrial valve positioner with warranty
Basic Infomation
Place of Origin: China
Brand Name: Siemens
Model Number: 6DR5310-0EN00-0AA0
Document: A700000008510566.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20PCS 1WEEK
Product Description

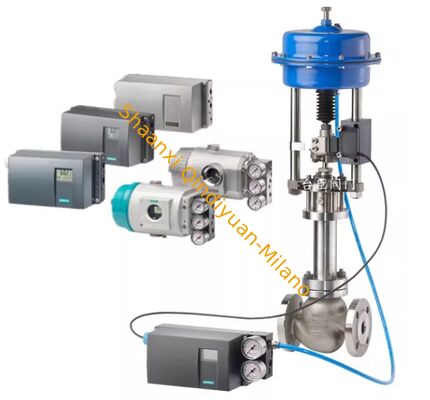

Siemens Valve Positioner 6DR5310-0EN00-0AA0
Key Specifications: 24V DC (19.2~30V DC) | 4~20mA / 0~10V DC Input | 4~20mA Output | High Performance | Explosion Proof
Product Overview

Siemens valve positioners are precision instruments designed for accurate control and positioning of industrial valves. The 6DR5310 series represents the high-performance category with enhanced precision and reliability for demanding applications.

Complete Product Series Specifications
Product Series Part Number Model Name Supply Voltage Input Signal Output Signal Air Supply Pressure Max Working Pressure Protection Class Ambient Temperature Key Features
Siemens Valve Positioner 6DR5010-0NG00-0AA0 6DR5010 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA 0.4~0.7 MPa 1.0 MPa IP65/IP66/IP67 -40°C~+70°C Basic Type; Single-Acting; Non-Explosion Proof; 2-wire/4-wire Optional
Siemens Valve Positioner 6DR5010-0NN00-0AA0 6DR5010 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA 0.4~0.7 MPa 1.0 MPa IP65/IP66/IP67 -40°C~+70°C Basic Type; Double-Acting; Non-Explosion Proof; 2-wire/4-wire Optional
Siemens Valve Positioner 6DR5010-0EN00-0AA0 6DR5010 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA 0.4~0.7 MPa 1.0 MPa IP65/IP66/IP67 Ex ia IIC T6 Ga / -40°C~+70°C Explosion Proof; Single-Acting; Ex Certified; 2-wire System
Siemens Valve Positioner 6DR5020-0NG00-0AA0 6DR5020 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA) 4~20mA / Bus Feedback 0.4~0.7 MPa 1.0 MPa IP65/IP66/IP67 -40°C~+70°C Bus Type; Single-Acting; PROFIBUS PA; Non-Explosion Proof
Siemens Valve Positioner 6DR5020-0NN00-0AA0 6DR5020 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA) 4~20mA / Bus Feedback 0.4~0.7 MPa 1.0 MPa IP65/IP66/IP67 -40°C~+70°C Bus Type; Double-Acting; PROFIBUS PA; Non-Explosion Proof
Siemens Valve Positioner 6DR5020-0EN00-0AA0 6DR5020 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA) 4~20mA / Bus Feedback 0.4~0.7 MPa 1.0 MPa IP65/IP66/IP67 Ex ia IIC T6 Ga / -40°C~+70°C Bus Type; Single-Acting; PROFIBUS PA; Ex Certified
Siemens Valve Positioner 6DR5310-0NG00-0AA0 6DR5310 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA 0.3~0.7 MPa 1.6 MPa IP65/IP66/IP67 -40°C~+80°C High Performance; Single-Acting; High Precision; Non-Explosion Proof
Siemens Valve Positioner 6DR5310-0NN00-0AA0 6DR5310 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA 0.3~0.7 MPa 1.6 MPa IP65/IP66/IP67 -40°C~+80°C High Performance; Double-Acting; High Precision; Non-Explosion Proof
Siemens Valve Positioner 6DR5310-0EN00-0AA0 6DR5310 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA 0.3~0.7 MPa 1.6 MPa IP65/IP66/IP67 Ex ia IIC T6 Ga / -40°C~+80°C High Performance; Single-Acting; Ex Certified; High Precision
Siemens Valve Positioner 6DR5320-0NG00-0AA0 6DR5320 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA/FOUNDATION Fieldbus) 4~20mA / Bus Feedback 0.3~0.7 MPa 1.6 MPa IP65/IP66/IP67 -40°C~+80°C High Performance Bus Type; Single-Acting; Multi-Bus; Non-Explosion Proof
Siemens Valve Positioner 6DR5320-0NN00-0AA0 6DR5320 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA/FOUNDATION Fieldbus) 4~20mA / Bus Feedback 0.3~0.7 MPa 1.6 MPa IP65/IP66/IP67 -40°C~+80°C High Performance Bus Type; Double-Acting; Multi-Bus; Non-Explosion Proof
Siemens Valve Positioner 6DR5320-0EN00-0AA0 6DR5320 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA/FOUNDATION Fieldbus) 4~20mA / Bus Feedback 0.3~0.7 MPa 1.6 MPa IP65/IP66/IP67 Ex ia IIC T6 Ga / -40°C~+80°C High Performance Bus Type; Single-Acting; Multi-Bus; Ex Certified
Key Applications
  • Process control systems in chemical and petrochemical industries
  • Power generation plants and utility systems
  • Oil and gas production and refining facilities
  • Water and wastewater treatment plants
  • Pharmaceutical and food processing industries
