Home /Products/Valve Positioners/Siemens Valve Positioner 6DR5020-0NN00-0AA0 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA) 4~20mA / Bus Feedback

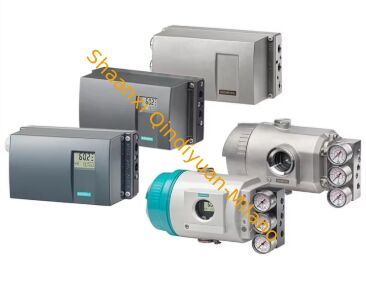

Siemens Valve Positioner 6DR5020-0NN00-0AA0 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA) 4~20mA / Bus Feedback

1pcs
MOQ
Negotiable
Price
Siemens Valve Positioner 6DR5020-0NN00-0AA0 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA) 4~20mA / Bus Feedback
Features Gallery Product Description Chat Now
Features
Specifications
Inputpressurerange: 1.4 To 7 Bar (20 To 100 Psi)
Responsetime: Less Than 1 Second
Outputpressurerange: 0.2 To 1.0 MPa
Ingressprotection: IP65 / IP67
Communicationprotocol: HART / Foundation Fieldbus / PROFIBUS
Material: Aluminum Alloy / Stainless Steel
Accuracy: ±1% Of Full Scale
Productname: Valve Positioners
Powersupply: 24 V DC / 110 V AC / 220 V AC
Feedbacktype: Potentiometer / LVDT / Digital Feedback
Mountingtype: Direct Mount / Remote Mount
Controlsignal: 4-20 MA / 0-10 V / HART / Fieldbus
Operatingtemperature: -40°C To +85°C
Application: Control Valve Position In Industrial Automation Systems
Type: Electro-pneumatic / Pneumatic / Digital
Highlight:

Siemens valve positioner 24V DC

,

PROFIBUS PA valve positioner

,

4~20mA feedback valve positioner
Basic Infomation
Place of Origin: China
Brand Name: Siemens
Model Number: 6DR5020-0NN00-0AA0
Document: A700000008510566.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20PCS 1WEEK
Product Description
Siemens Valve Positioner 6DR5020-0NN00-0AA0
Key Specifications: 24V DC (19.2~30V DC) power supply, 4~20mA / Bus (PROFIBUS PA) input signal, 4~20mA / Bus feedback output, double-acting configuration with PROFIBUS PA communication protocol.
Siemens Valve Positioner Product Series
Product Series Part Number Model Name Supply Voltage Input Signal Output Signal Air Supply Pressure Max Working Pressure Protection Class Ambient Temperature Key Features
Siemens Valve Positioner 6DR5010-0NG00-0AA0 6DR5010 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA 0.4~0.7 MPa 1.0 MPa IP65/IP66/IP67 -40°C~+70°C Basic Type; Single-Acting; Non-Explosion Proof; 2-wire/4-wire Optional
Siemens Valve Positioner 6DR5010-0NN00-0AA0 6DR5010 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA 0.4~0.7 MPa 1.0 MPa IP65/IP66/IP67 -40°C~+70°C Basic Type; Double-Acting; Non-Explosion Proof; 2-wire/4-wire Optional
Siemens Valve Positioner 6DR5010-0EN00-0AA0 6DR5010 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA 0.4~0.7 MPa 1.0 MPa IP65/IP66/IP67 Ex ia IIC T6 Ga / -40°C~+70°C Explosion Proof; Single-Acting; Ex Certified; 2-wire System
Siemens Valve Positioner 6DR5020-0NG00-0AA0 6DR5020 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA) 4~20mA / Bus Feedback 0.4~0.7 MPa 1.0 MPa IP65/IP66/IP67 -40°C~+70°C Bus Type; Single-Acting; PROFIBUS PA; Non-Explosion Proof
Siemens Valve Positioner 6DR5020-0NN00-0AA0 6DR5020 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA) 4~20mA / Bus Feedback 0.4~0.7 MPa 1.0 MPa IP65/IP66/IP67 -40°C~+70°C Bus Type; Double-Acting; PROFIBUS PA; Non-Explosion Proof
Siemens Valve Positioner 6DR5020-0EN00-0AA0 6DR5020 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA) 4~20mA / Bus Feedback 0.4~0.7 MPa 1.0 MPa IP65/IP66/IP67 Ex ia IIC T6 Ga / -40°C~+70°C Bus Type; Single-Acting; PROFIBUS PA; Ex Certified
Siemens Valve Positioner 6DR5310-0NG00-0AA0 6DR5310 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA 0.3~0.7 MPa 1.6 MPa IP65/IP66/IP67 -40°C~+80°C High Performance; Single-Acting; High Precision; Non-Explosion Proof
Siemens Valve Positioner 6DR5310-0NN00-0AA0 6DR5310 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA 0.3~0.7 MPa 1.6 MPa IP65/IP66/IP67 -40°C~+80°C High Performance; Double-Acting; High Precision; Non-Explosion Proof
Siemens Valve Positioner 6DR5310-0EN00-0AA0 6DR5310 24V DC (19.2~30V DC) 4~20mA / 0~10V DC 4~20mA 0.3~0.7 MPa 1.6 MPa IP65/IP66/IP67 Ex ia IIC T6 Ga / -40°C~+80°C High Performance; Single-Acting; Ex Certified; High Precision
Siemens Valve Positioner 6DR5320-0NG00-0AA0 6DR5320 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA/FOUNDATION Fieldbus) 4~20mA / Bus Feedback 0.3~0.7 MPa 1.6 MPa IP65/IP66/IP67 -40°C~+80°C High Performance Bus Type; Single-Acting; Multi-Bus; Non-Explosion Proof
Siemens Valve Positioner 6DR5320-0NN00-0AA0 6DR5320 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA/FOUNDATION Fieldbus) 4~20mA / Bus Feedback 0.3~0.7 MPa 1.6 MPa IP65/IP66/IP67 -40°C~+80°C High Performance Bus Type; Double-Acting; Multi-Bus; Non-Explosion Proof
Siemens Valve Positioner 6DR5320-0EN00-0AA0 6DR5320 24V DC (19.2~30V DC) 4~20mA / Bus (PROFIBUS PA/FOUNDATION Fieldbus) 4~20mA / Bus Feedback 0.3~0.7 MPa 1.6 MPa IP65/IP66/IP67 Ex ia IIC T6 Ga / -40°C~+80°C High Performance Bus Type; Single-Acting; Multi-Bus; Ex Certified
