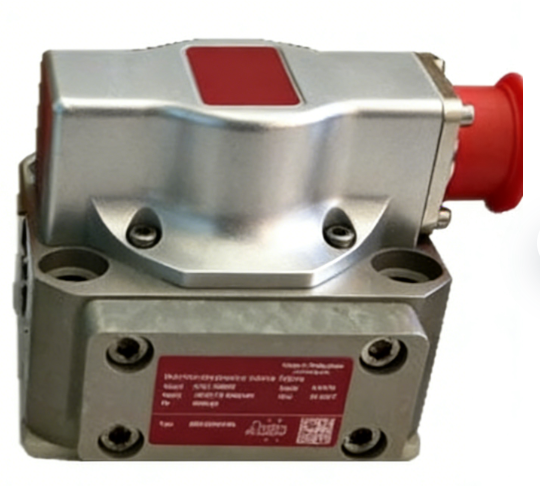

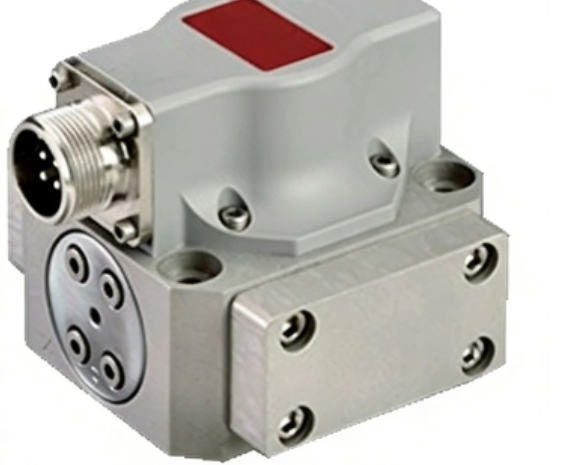

MOOG D661-4651 Industrial Servo Valve Electro pneumatic 40 L/min

1 pcs
MOQ
Negotiable
Price
MOOG D661-4651 Industrial Servo Valve Electro pneumatic 40 L/min
Features Gallery Product Description Chat Now
Features
Specifications
Operatingtemperature: -20°C To 70°C
Function: Control Valve Actuator Position
Response Time: Less Than 1 Second
Supply Pressure: 20-30 Psi / 1.4-2.0 Bar
Feedback Signal: Potentiometer / LVDT / Digital Feedback
Input Signal: 4-20 MA / 0-10 V / HART / Fieldbus
Application: Control Of Industrial Control Valves In Process Industries
Power Supply: 24 V DC / 110 V AC / 220 V AC
Mounting Type: Direct Mount / Remote Mount
Output Pressurerange: 3-15 Psi / 0.2-1.0 Bar
Product Name: Valve Positioners
Type: Electro-pneumatic / Pneumatic / Digital
Protectionclass: IP65 / NEMA 4
Material: Aluminum Alloy / Stainless Steel
Accuracy: ±1% Of Full Scale
Highlight:

MOOG D661-4651

,

Industrial Servo Valve Electro pneumatic
Basic Infomation
Brand Name: MOOG
Certification: Brand new original
Model Number: D661-4651
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description
I. Core Specifications (Essential for Foreign Trade/Quotation)
1. Hydraulic Parameters
Parameters Indicators Description
Model D661-4651 Complete Model: D661-4651/G35J0AA6VSX2HA
Type Two-stage servo valve (jet pilot + spool power stage) With spool position feedback (LVDT)
Maximum working pressure 350 bar (35 MPa) P/A/B port; T port ≤350 bar
Rated flow rate 40 L/min @70 bar valve pressure drop (typical)
Maximum flow rate Approx. 200 L/min (depending on spool specification)
Step response ≤14 ms 100% signal, at 210 bar
Frequency response 30–50 Hz ±100% input signal
Control accuracy Hysteresis < 0.8%, Linearity < 1% Minimum controllable flow deviation ≤0.5%
Working medium Petroleum-based hydraulic oil (DIN 51524), water glycol, phosphate ester
Oil viscosity Recommended 15–45 mm²/s; Permissible 5–400 mm²/s
Cleanliness ISO 4406 <15/12 (standard); <14/11 (long life)
2. Electrical parameters
Parameters Specifications Description
Supply voltage 24 VDC (18–32 VDC)
Control signal ±10 V, ±10 mA, 4–20 mA (optional)
Coil resistance 20 Ω (single coil) / 40 Ω (series)
Protection rating IP65 (with matching plug)
Ambient temperature -20°C ～ +60°C; Oil: -20°C ~ +80°C
Vibration 30g, Triaxial
3. Mechanical and Installation
Parameters Indicators Description
Installation Standard ISO 4401 Dimension 05 (CETOP 05)
Installation Method 35mm DIN rail or flange mounting Any installation position
Valve Body Material Aluminum alloy / Precipitation hardened stainless steel
Sealing Nitrile rubber (NBR), Fluororubber (FKM) optional
4. Supply and Warranty
  • Delivery Time: Regularly 8–12 weeks, some in stock
  • Warranty: 12 months from the manufacturer
  • Origin: USA / Europe
II. Core Advantages
  1. ServoJet® Jet Tube Pilot: Highly resistant to contamination, no pilot oil source required, simple maintenance.
  2. Integrated Electronics + LVDT Feedback: In-valve closed-loop control, high precision, good stability, and strong anti-interference.
  3. Fast Response + High Pressure and High Flow: Suitable for high-speed, heavy-duty closed-loop systems (such as rolling mills, injection molding machines, and testing benches).
  4. Wide Media Compatibility: Adaptable to various hydraulic oils to meet different operating conditions.
  5. High Reliability: Low hysteresis and high repeatability, suitable for continuous production environments.
III. Typical Applications
  • Metallurgical Equipment: Roll gap control, tension control in rolling mills
  • Plastics Machinery: Servo control for injection molding machines and extruders
  • Testing Equipment: Material testing machines, hydraulic servo testing benches
  • Industrial Automation: Pressure/Position/Force closed-loop control systems
  • Construction Machinery: Precision control of heavy-duty hydraulic actuators
