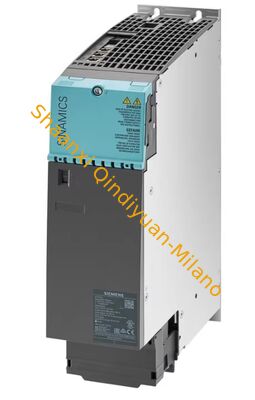

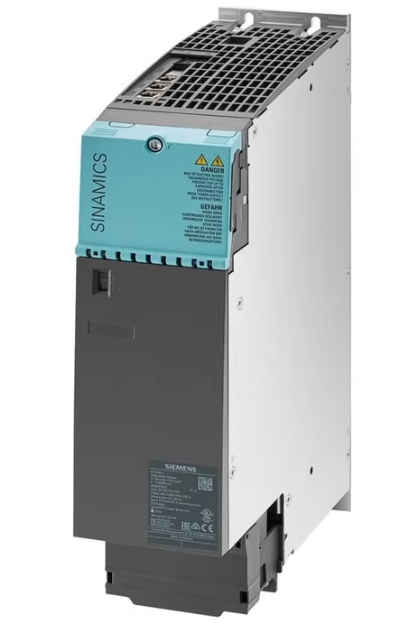

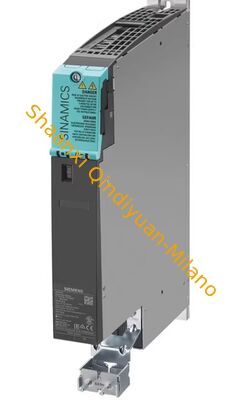

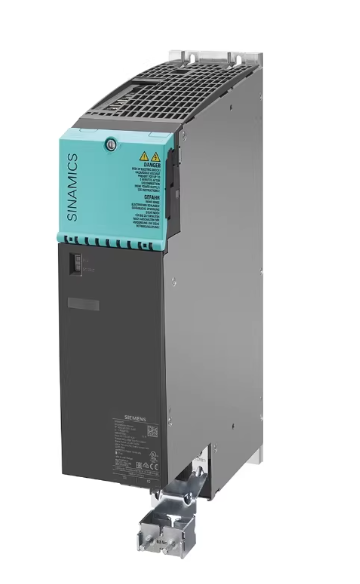

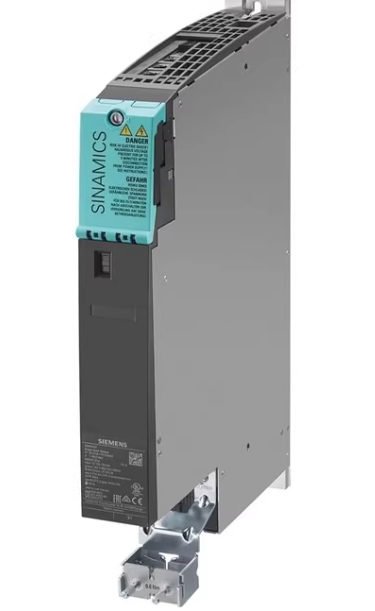

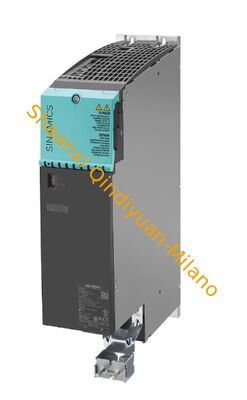

Siemens 6SL3120‑1TE21‑0AD0 Single Motor Module

1. Product Overview

The 6SL3120‑1TE21‑0AD0 is an active SINAMICS S120 single‑axis motor module in Booksize D‑format. It accepts 600 V DC bus input and converts to 3‑phase 400 V AC output for driving synchronous / asynchronous servo motors, rated output current 9 A. Adopts internal air cooling, DRIVE‑CLiQ communication cable is included in delivery. Designed for high‑dynamic multi‑axis motion control for machine tools, packaging, printing and automation production lines.

2. Core Features

• Single‑axis motor module for SINAMICS S120 drive system
• DC‑bus input: 600 V DC; 3‑phase AC output: 400 V AC, rated 9 A
• Booksize D‑format, internal air cooling
• Built‑in DRIVE‑CLiQ interface, DRIVE‑CLiQ cable included within scope of delivery
• Supports Extended Safety‑Integrated safety functions, optimized pulse patterns
• High‑dynamic speed, torque and position servo control
• Compact modular structure, convenient for multi‑axis cabinet layout

3. Technical Specifications

• Model: 6SL3120‑1TE21‑0AD0
• Type: Single Motor Module
• DC‑link Input: 600 V DC
• Output: 3‑phase 400 V AC, Rated current: 9 A
• Frame size: Booksize D‑format
• Cooling method: Internal air cooling
• Communication: DRIVE‑CLiQ (cable included)
• Product status: Active production status
• Protection class: IP20
• Net weight: 4.6 kg

4. Application Fields

Machine tools, packaging equipment, printing machinery, textile machines, automated assembly lines, test benches and other high‑performance multi‑axis motion‑control equipment.
