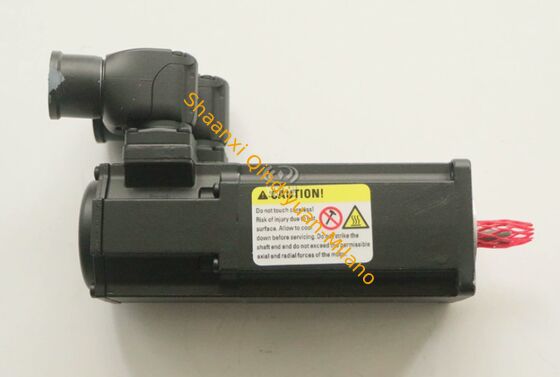

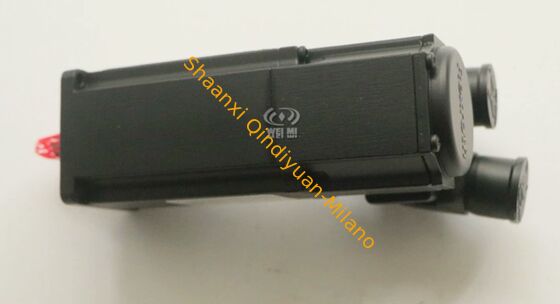

Rexroth QSK100B-0200-NN-M5-BG0-NNNN Servo Motor with 21.5 Nm Rated Torque 2000 RPM Rated Speed and IP65 Protection

1 pcs
MOQ
Negotiable
Price
Rexroth QSK100B-0200-NN-M5-BG0-NNNN Servo Motor with 21.5 Nm Rated Torque 2000 RPM Rated Speed and IP65 Protection
Features Gallery Product Description Chat Now
Features
Specifications
Rated Torque: 2.5 Nm
Application: Robotics, CNC Machines
Lead Time: Approx 7 Days Normally
Working Viscosity: 16 ~ 25 Mm²/s
Payment: TT\Paypal\Western Union
Construction: PM
Factory Outlet: Factory Outlet
Model: MLS070S-3A-0450-NNNN
Output Power: 0.18KW-315KW
Product Type: Motor
Pressure: Low Pressure
Rated Speed: 3000 RPM
Chip: Pwm Dc Motor Speed Controller
Feedback Type: Resolver Or Encoder
Maximum Speed: 6000 RPM
Highlight:

21.5 Nm Rated Torque Servo Motor

,

2000 RPM Rated Speed Synchronous Servo Motor

,

IP65 Protection Industrial Servo Motor
Basic Infomation
Brand Name: Rexroth
Certification: Brand new original
Model Number: QSK100B-0200-NN-M5-BG0-NNNN
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description
Rexroth QSK100B-0200-NN-M5-BG0-NNNN Servo Motor
Model Number Breakdown
QSK - High Dynamic Synchronous Servo Motor Series
100 - Flange Size 100 mm
B - Motor Design Version (Type B, Standard Length)
0200 - Rated Speed 2000 rpm
NN - No Holding Brake, No Oil Seal
M5 - Encoder Type (Multi-Turn Absolute Encoder, EnDat 2.2)
BG0 - Shaft End Specification (Keyway Shaft, Standard Key)
NNNN - No Additional Options
Electrical Specifications
Rated Power 4.5 kW
Rated Torque 21.5 Nm
Maximum Torque 64.5 Nm (3 times rated)
Rated Current 14.5 A
Maximum Current 43.5 A
Rated Voltage 400 V AC (Three-phase)
Rotor Inertia 1.2 kg·cm²
Protection Class IP65 (Stator) / IP54 (Shaft End)
Cooling Method Natural Air Cooling
Encoder and Interface
Encoder Type M5 Multi-Turn Absolute Encoder (EnDat 2.2)
Resolution 20 bit per turn, 12 bit per multi-turn
Communication Protocol EnDat 2.2, compatible with IndraDrive series drives
Interface Standard power plug + encoder plug
Mechanical and Environmental Specifications
Shaft Diameter 19 mm (with keyway)
Flange 100 mm square flange (ISO 9409)
Weight Approx. 10.5 kg
Operating Temperature 0°C – 40°C
Storage Temperature -20°C – 85°C
Altitude ≤ 1000 m
Vibration 5.9 m/s² (10–2000 Hz)
Compatibility and Applications
Compatible Drives

IndraDrive HCS, MHD, DKC series

Typical Applications
  • Machine tool spindles/feed axes, heavy-duty automation equipment
  • Packaging machinery, printing equipment, material handling systems
  • Robot joints, injection molding machines, textile machinery
  • High torque, medium-to-high speed precision positioning scenarios
