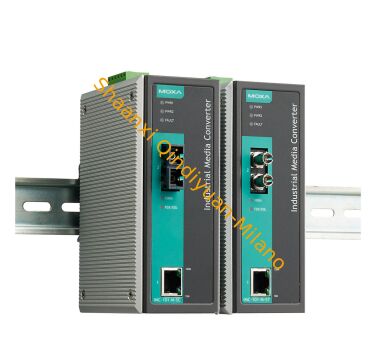

MOXA IMC-101-M-ST IMC-101 Series Industrial Ethernet To Fiber Media Converter

1PCS
MOQ
Negotiable
Price
MOXA IMC-101-M-ST IMC-101 Series Industrial Ethernet To Fiber Media Converter
Features Gallery Product Description Chat Now
Features
Specifications
Part No: SST-PB3-104
Manufacturer: Siemens
Supply Voltage Type: AC
Operating_Temperature_Range: -20°C To 60°C
Power_Consumption: 6 W
Input Points: 28
Dimensions: 100mm X 75mm X 60mm
Actual Price: Based On Offer
Condition: New Original With Sealed
Application: Oil And Gas Factory
Memory_Size: 50 KB
Mounting_Type: DIN Rail
CPU_Type: CPU 1214C
Power Supply Voltage: 100 – 240VAC.
Weight: 0.82 KG
Highlight:

MOXA IMC-101-M-ST

,

Industrial Ethernet To Fiber Media Converter

,

MOXA Ethernet To Fiber Media Converter
Basic Infomation
Place of Origin: Taiwan
Brand Name: MOXA
Model Number: IMC-101-M-ST
Document: MOXA IMC-101-M-ST.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 20PCS 1WEEK
Product Description
General Information
Parameter Name Value
Product Series IMC-101 Series Industrial Ethernet-to-Fiber Media Converter
Order Number IMC-101-M-ST
Product Description 10/100BaseT(X) to 100BaseFX multi-mode fiber converter with ST connector, 0 to 60°C operating temperature, non-hazardous location model
Product Status Current Product
Conversion Type Ethernet Copper to Fiber Optic
Ethernet Interface (Copper)
Parameter Name Value
Port Type 1 x 10/100BaseT(X) (RJ45 connector)
Auto-negotiation Yes (supports 10/100 Mbps, half/full duplex)
Auto-MDI/MDI-X Yes
Cable Type Category 5e or better UTP cable (max 100 m)
Ethernet Interface (Fiber)
Parameter Name Value
Port Type 1 x 100BaseFX (ST connector)
Fiber Type Multi-mode (MM)
Wavelength 850 nm
Transmission Distance Up to 5 km
Cable Type 62.5/125 μm or 50/125 μm multi-mode fiber optic cable
Key Features
Parameter Name Value
Link Fault Pass-Through (LFPT) Yes
Alarm Function Power failure and port break alarm via relay output
Redundant Power Inputs Yes (dual DC inputs)
Operating Mode Store-and-forward and pass-through mode
DIP Switch Settings Link Fault Pass-Through (enable/disable), Port Status Alarm (enable/disable)
Power Specifications
Parameter Name Value
Input Voltage Range 12 to 45 VDC
Input Current 200 mA @ 12-45 VDC (0.16 A @ 24 VDC typical)
Power Connector Removable terminal block (2-pin for each power input)
Overload Protection 1.1 A current limit
Reverse Polarity Protection Yes
Power Consumption Approx. 4.8 W (24 VDC @ 0.2 A)
Physical Characteristics
Parameter Name Value
Housing Material Aluminum case
Protection Class IP30
Dimensions (W x H x D) 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Net Weight 0.63 kg (1.39 lb)
Installation Options DIN rail mounting (TS-35/7.5 or TS-35/15), Wall mounting
Environmental Conditions
Parameter Name Value
Operating Temperature Range 0 to 60°C (32 to 140°F)
Storage Temperature Range -40 to 85°C (-40 to 185°F)
Relative Humidity 5 to 95% RH (non-condensing)
Altitude Up to 2000 m above sea level
EMI/EMC Compliance
Parameter Name Value
IEC 61000-4-2 (ESD) Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 (RS) 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 (EFT) Power lines: 2 kV; Signal lines: 1 kV
IEC 61000-4-5 (Surge) Power lines: 2 kV (line to line), 4 kV (line to ground); Signal lines: 1 kV
FCC Part 15 Class A
CE Mark Yes
Safety Certifications
Parameter Name Value
UL Certification Yes (UL 61010-1)
CSA Certification Yes (CSA C22.2 No. 61010-1)
ATEX/IECEx Certification No (standard model, non-hazardous location)
Mechanical Data
Parameter Name
