MOOG D634-341C Valve Protection and Control Components Built In LVDT Displacement Sensor

1 pcs
MOQ
Negotiable
Price
MOOG D634-341C Valve Protection and Control Components Built In LVDT Displacement Sensor
Features Gallery Product Description Chat Now
Features
Specifications
Function: Protection And Control Of Electrical Systems
Controlfunctions: Remote Switching, Auto-reclosing, Load Shedding
Componenttypes: Relays, Circuit Breakers, Sensors, Controllers
Currentrating: Up To 6300 A
Voltagerating: Up To 36 KV
Product Name: Protection And Control Components
Communicationprotocols: IEC 61850, Modbus, DNP3
Standardscompliance: IEC 60255, IEEE C37 Series
Diagnosticfeatures: Self-test, Event Recording, Fault Analysis
Inputsupplyvoltage: 110 V AC/DC, 220 V AC/DC
Mountingtype: Panel-mounted, DIN Rail-mounted
Protectionfunctions: Overcurrent, Earth Fault, Differential, Distance Protection
Responsetime: Less Than 10 Ms
Application: Power Distribution And Transmission Networks
Operatingtemperaturerange: -40°C To +70°C
Highlight:

MOOG Protection and Control Components

,

D634-341C Protection and Control Components
Basic Infomation
Brand Name: MOOG
Certification: Brand new original
Model Number: D634-341C
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description

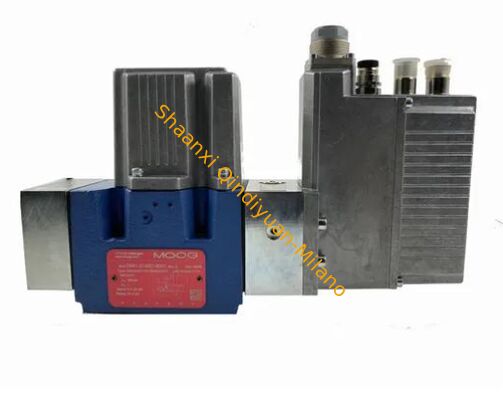

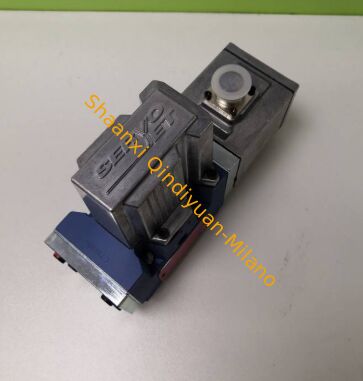

MOOG D634-341C Proportional Valve
Core Specifications
Flow & Pressure
Rated Flow 60/100 L/min (ΔP=35 bar, single throttling side)
Maximum Flow 185 L/min
Maximum Operating Pressure P/A/B port: 350 bar (5000 psi); T port: 50 bar; Y drain port: 350 bar
Performance Characteristics
Response Time Valve spool 0-100% fully open ≤20 ms
Frequency Response 40-60 Hz (-3dB)
Hysteresis < 0.2%
Resolution < 0.1%
Electrical & Control
Drive System Direct drive permanent magnet linear force motor
Feedback Built-in LVDT displacement sensor, valve spool position closed loop
Control Signal ±10V / 4-20mA (optional)
Power Supply 24 VDC (built-in electronics)
Protection Reverse polarity, overvoltage, overcurrent protection
Installation & Physical
Installation Standard ISO 4401-05-05-0-94 (NG10)
Valve Port Diameter 11.5 mm
Weight 6.3 kg (13.9 lb)
Seal Material Standard FPM (fluororubber), NBR optional
Media Compatibility Mineral oil (DIN 51524)
Viscosity Range 5-400 mm²/s (Recommended 15-100)
Environmental Conditions
Ambient Temperature -20℃ to +60℃
Oil Temperature -20℃ to +80℃
Cleanliness Requirement Recommended ISO 4406 < 15/12; Long service life < 14/11
Product Features
Direct-Acting DDV Design
No pilot stage, no pilot leakage, strong anti-contamination capability, dynamic response independent of oil supply pressure.
High-Precision Closed Loop
LVDT + built-in electronic amplifier provides low hysteresis, high repeatability, suitable for precision position/pressure/force control.
High Dynamics
Fast response and high frequency response, suitable for high dynamic systems.
Low Power Consumption
Extremely low current near zero position for energy saving operation.
Fail-Safe Operation
In case of power failure/signal loss, the valve core returns to spring neutral position, enhancing system safety.
Compact Structure
Single-stage, integrated electronics simplifies system design and installation.
Typical Applications
Injection Molding Machines
Die Casting Machines
Rubber Machinery
Material Testing Machines
High-Frequency Vibration Tables
Aviation Simulation
Flight Simulators
Metallurgical Equipment
Heavy-Duty Presses
Multi-Axis Synchronous Hydraulic Systems
