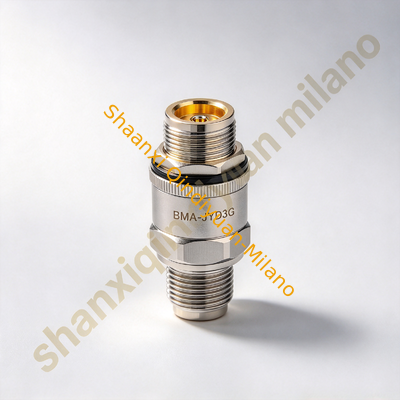

BMA-JYD3G High Frequency Microwave Connectors BMA K Series Extended Screw In Microstrip

1PCS
MOQ
$20.70‑31.60
Price
BMA-JYD3G High Frequency Microwave Connectors BMA K Series Extended Screw In Microstrip
Features Gallery Product Description Chat Now
Features
Specifications
Operating Force: /
Ethernet Ports: 8 To 24 Ports
Shutter Type: Rolling Shutter
Style: Standard Industrial Cylindrical Sensor
Operatingvoltage: Up To 36 KV
Highlight:

BMA-JYD3G Microwave Coaxial Connector

,

BMA-JYD3G Extended Microwave Coaxial Connector

,

Extended Screw-In Microstrip Microwave Coaxial Connector
Basic Infomation
Place of Origin: China
Certification: CE
Model Number: BMA-JYD3G
Payment & Shipping Terms
Payment Terms: T/T
Supply Ability: 20PCS 1week
Product Description

BMA-JYD3G Extended Threaded Screw-In Microstrip Plug RF Coaxial Connector 0‑18GHz 50Ohm for Microwave Test

1. Product Overview & Key Features

The BMA-JYD3G is extended threaded screw-in microstrip plug of BMA K series high frequency microwave coaxial connector. It is 50Ohm impedance and supports DC~18GHz wide frequency range. Extended body design,1/4-36UNS-2A thread,body length 20.2mm,low VSWR and excellent repeatability, it ensures stable high-frequency signal transmission for test and measurement equipment.

2. Technical Specifications
  • Core Specification/Series: BMA K Series
  • Model: BMA-JYD3G
  • Impedance: 50Ω
  • Frequency Range: DC - 18GHz
  • Connector Gender: Male
  • Mounting Type: Extended threaded screw-in mount
  • Interface Type: Straight
  • Thread:1/4-36UNS-2A
  • Body Length:20.2 mm
  • Application: Extended threaded screw-in microstrip plug
3. Application Scenarios

Microwave test instruments,RF measurement systems,communication base station equipment,radar modules,industrial RF testing modules,high frequency signal distribution systems.
