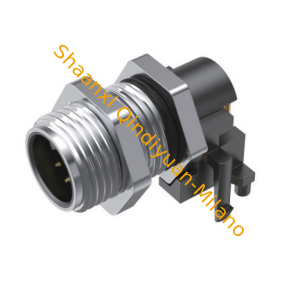

M12-A04-WM Front Mounted Male Right Angle M12 Circular Connectors PCB Receptacle

1 pcs
MOQ
Negotiable
Price
M12-A04-WM Front Mounted Male Right Angle M12 Circular Connectors PCB Receptacle
Features Gallery Product Description Chat Now
Features
Specifications
Industry: Manufacturing
Communication Protocol: Modbus, Ethernet/IP, Profibus
Power Supply Voltage: 100 – 240VAC.
Highlight:

Front Mounted M12 Circular Connector

,

Right Angle PCB M12 Circular Connector

,

IP67 Sealed M12 Circular Connector
Basic Infomation
Model Number: M12-A04-WM
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 1000 pcs
Product Description

M12 Circular Connector Waterproof Overmolded Cable Assembly M12-A04-WM

Product Image

Key Features

  • Standard M12 threaded coupling mechanism, compliant with IEC 61076-2-101
  • Available in unshielded versions, high-strength all-plastic or metal housing, lightweight and durable
  • High-grade flame-retardant PA66 Insulator material, rated UL 94 V-0
  • Heavy gold plating on contact surfaces, ensures low Contact resistance (≤3mΩ) and extended mating life

Product Overview

The M12 circular sealed connector uses A-coding for mating-error prevention. This configuration is a male front-mounted right-angle receptacle, providing excellent mechanical stability and electrical continuity for durable, reliable connections in harsh industrial environments.

Key Technical Specifications

Contact Gender male
Wiring Method PCB pins
Mounting Method panel/PCB mounting
Shielding shielded / unshielded
Rated voltage 250V / 60V / 30V
Rated current 4A / 2A / 1.5A
Degree of protection IP67, when mated
Operating temperature Connector: -45℃ ~ +115℃
Contact resistance ≤ 3 mΩ
Insulation resistance ≥ 100 MΩ
Mechanical endurance ≥ 500 mating cycles
Rated impulse voltage 500V / 800V / 1500V / 2500V
Shell material nickel-plated brass / nickel-plated zinc alloy
Insulator material PA66 (UL 94-V0)
Contact material gold-plated brass

Dimensional drawing

Product Part-number Designation Breakdown

M12

Product type: M12 circular connector

A04

A Coding / 04 contacts (Number of contacts)

WM

front-mounted right-angle receptacle

Ordering Information

Model Product type Coding Number of contacts Wiring Method
M12-A04-WM front-mounted right-angle receptacle, male contacts, unshielded, PCB termination rear-mounted flange receptacle, male contacts, unshielded, solder termination A 04 contacts PCB pins
M12-B04-WM Same as above A 04 contacts PCB pins
M12-D04-WM Same as above A 04 contacts PCB pins
M12-A05-WM Same as above A 05 contacts PCB pins
M12-B05-WM Same as above A 05 contacts PCB pins
M12-D05-WM Same as above A 05 contacts PCB pins
M12-A08-WM Same as above A 08 contacts PCB pins
M12-A12-WM Same as above A 12 contacts PCB pins

Technical specifications are subject to final engineering confirmation.
