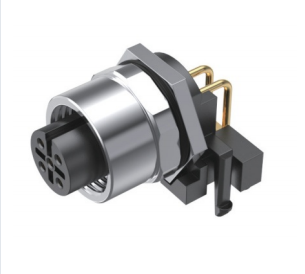

M12 Circular Connector Waterproof Overmolded Cable Assembly M12-A4-RP

Product Image

Contact Gender female
Wiring Method PCB pins
Mounting Method panel/PCB mounting
Shielded unshielded

Key Features

  • Standard M12 threaded coupling mechanism, compliant with IEC 61076-2-101
  • Available in unshielded versions, high-strength all-plastic or metal housing, lightweight and durable
  • High-grade flame-retardant PA66 Insulator material, rated UL 94 V-0
  • Heavy gold plating on contact surfaces, ensures low Contact resistance (≤3mΩ) and extended mating life

Product Overview

The M12 circular sealed connector uses A-coding for mating-error prevention. This configuration is a femaleright-angle plug with male contactsfield-field-wireable plug, providing excellent mechanical stability and electrical continuity for durable, reliable connections in harsh industrial environments.

Key Technical specifications

Specification Value
Rated voltage 250V / 60V / 30V
Rated current 4A / 2A / 1.5A
Degree of protection IP67, when mated
Operating temperature Connector: -45℃ ~ +115℃
Contact resistance ≤ 3 mΩ
Insulation resistance ≥ 100 MΩ
Mechanical endurance ≥ 500 mating cycles
Rated impulse voltage 500V / 800V / 1500V / 2500V
Shell material nickel-plated brass / nickel-plated zinc alloy
Insulator material PA66 (UL 94-V0)
Contact material gold-plated brass

Dimensional drawing

Product Part-number designationBreakdown

M12 Product type: M12 circular connector
A4 A Coding / 4 contacts (Number of contacts)
RP right-angle plug with male contactsfield-field-wireable plug

Ordering information

Model Product type Coding Number of contacts Wiring Method
M12-A4-RP front-mounted right-angle receptacle, female contacts, unshielded, PCB termination rear-mounted flange receptacle, female contacts, unshielded, PCB termination A 04 contacts PCB pins
M12-B4-RP Same as above A 04 contacts PCB pins
M12-D4-RP Same as above A 04 contacts PCB pins
M12-A5-RP Same as above A 05 contacts PCB pins
M12-B5-RP Same as above A 05 contacts PCB pins
M12-D5-RP Same as above A 05 contacts PCB pins
M12-A8-RP Same as above A 08 contacts PCB pins
M12-A12-RP Same as above A 12 contacts PCB pins

Technical specifications are subject to final engineering confirmation.
