M12-D4-KP-L D-Coding 4 Pin Female Long Body Right Angle M12 Circular Connectors

1 pcs
MOQ
Negotiable
Price
M12-D4-KP-L D-Coding 4 Pin Female Long Body Right Angle M12 Circular Connectors
Features Gallery Product Description Chat Now
Features
Specifications
Powerconsumption: Varies By Model, Typically 10W To 100W
Mountingtype: DIN Rail / Panel Mount
Operating Voltage: 220 V
Highlight:

Long Body M12 Circular Connector

,

Panel PCB M12 Circular Connector

,

D-Coding Female M12 Circular Connector
Basic Infomation
Model Number: M12-D4-KP-L
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description

M12 Circular Connector Waterproof Overmolded Cable Assembly M12-D4-KP-L

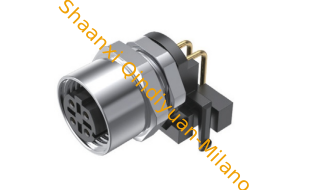

Product Image

Contact Genderfemale
Wiring MethodPCB pins
Mounting Methodpanel/PCB mounting
Shieldedunshielded

Key Features

  • Standard M12 threaded coupling mechanism, compliant with IEC 61076-2-101
  • Available in unshielded versions, high-strength all-plastic or metal housing, lightweight and durable
  • High-grade flame-retardant PA66 Insulator material, rated UL 94 V-0
  • Heavy gold plating on contact surfaces, ensures low Contact resistance (≤3mΩ) and extended mating life

Product Overview

The M12 circular sealed connector uses D-coding for mating-error prevention. This configuration is a female long-body right-angle male connector, providing excellent mechanical stability and electrical continuity for durable, reliable connections in harsh industrial environments.

Key Technical specifications

Rated voltage250V
Rated current4A
Degree of protectionIP67, when mated
Operating temperatureConnector: -45℃ ~ +115℃
Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Mechanical endurance≥ 500 mating cycles
Rated impulse voltage500V / 800V / 1500V / 2500V
Shell materialnickel-plated brass / nickel-plated zinc alloy
Insulator materialPA66 (UL 94-V0)
Contact materialgold-plated brass

Dimensional drawing

Product Part-number designation Breakdown

M12Product type: M12 circular connector
D4D Coding / 4 contacts (Number of contacts)
KP-Llong-body right-angle male connector

Ordering information

Model Product type Coding Number of contacts Wiring Method
M12-D4-KP-L front-mounted right-angle receptacle, female contacts, unshielded, PCB termination D 04 contacts PCB pins
M12-D5-KP-L Same as above D 05 contacts PCB pins
