1. Product Overview & Key Features

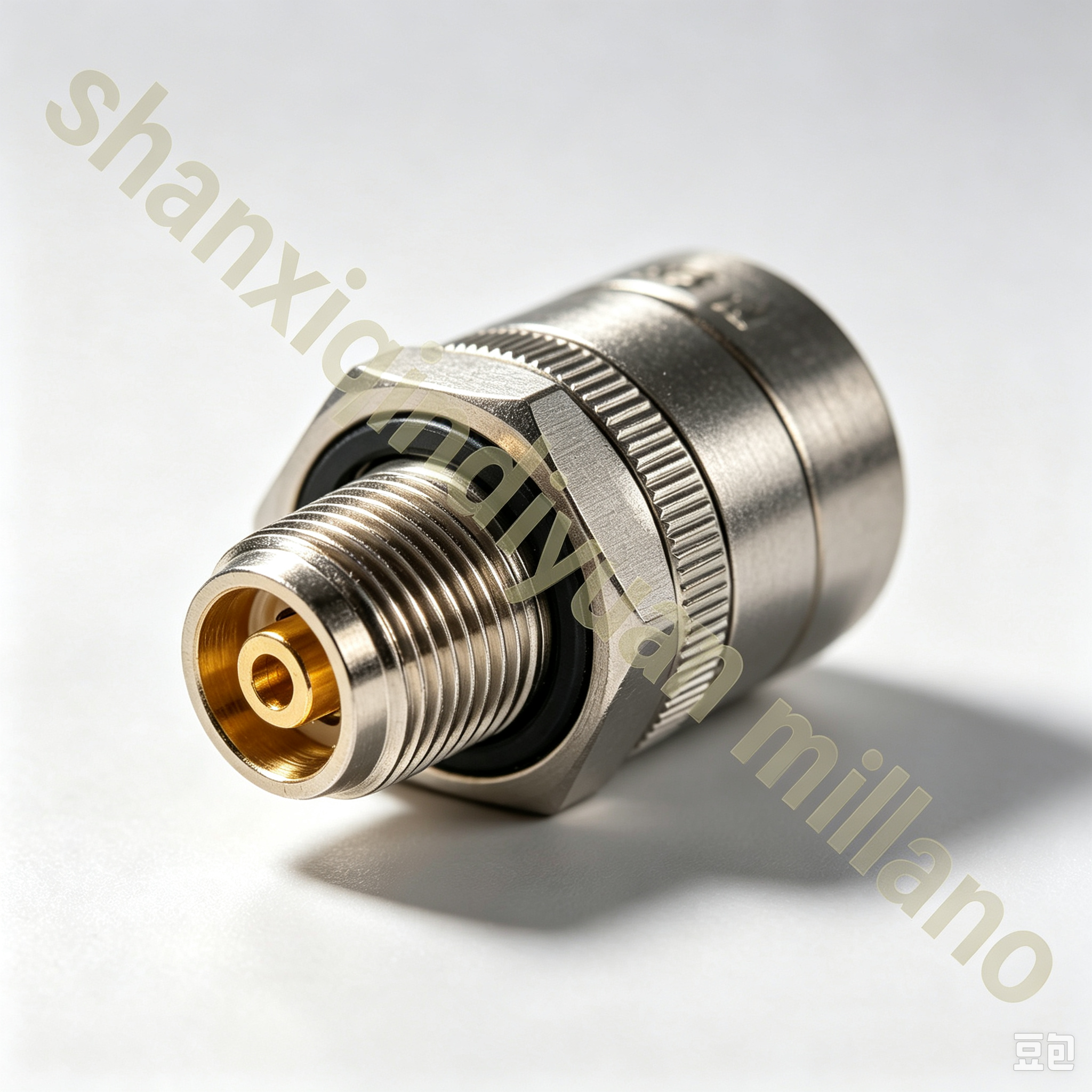

Fully compliant with premium international engineering standards, the Shaanxi Qindiyuan BMA-KY3Y RF coaxial connector is a high-density push-on microwave RF interconnection component. It is bulkhead straight female crimp type for semi-rigid cable. With gold-plated contact surfaces, it guarantees excellent electrical performance and long mating life. The shell adopts high-grade stainless steel or ternary-alloy-plated brass, offering great mechanical stability and stable RF signal transmission, widely used in microwave test equipment and radio frequency systems.

2. Technical Specifications

• Model: BMA-KY3Y
• Series: BMA Series Bulkhead RF Coaxial Connector
• Connector Type: Bulkhead Straight Female Crimp Type
• Characteristic Impedance: 50Ω
• Working Frequency: 0-18GHz
• VSWR: ≤1.10+0.1f
• Rated Voltage: 1500V
• Operating Temperature: -65℃ to +125℃
• Mechanical Endurance: ≥ 500 mating cycles
• Contact Plating: Gold plated
• Shell Material: Stainless Steel / Ternary-alloy-plated Brass
• Applicable Cable: Semi-rigid cable, RG-58 type equivalent cables

3. Part-Number Cross-Reference & Ordering Database

Model: BMA-KY3Y. If you need equivalent replacement for other famous brands, please send original part numbers to us for quotation.
