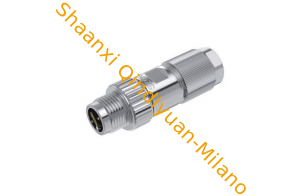

Shielded M12-A04-FP 4 Pin Male Panel Mount M12 Circular Connectors Solder Plug

1 pcs
MOQ
Negotiable
Price
Shielded M12-A04-FP 4 Pin Male Panel Mount M12 Circular Connectors Solder Plug
Features Gallery Product Description Chat Now
Features
Specifications
Compatibility: SCADA Systems, HMI Panels
Technology: Industrial Grade
Highlight:

Shielded M12 Circular Connector

,

Panel Mount M12 Circular Connector

,

Solder Cup M12 Circular Connector
Basic Infomation
Model Number: M12-A04-FP
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description

M12 Circular Connector Waterproof Overmolded Cable Assembly M12-A04-FP

M12 Circular Connector Waterproof Overmolded Cable Assembly M12-A04-FP
Product Image

Contact Gender male
Wiring Method Solder
Mounting Method cable-mounted
Shielded shielded

Key Features

  • Standard M12 threaded coupling mechanism, compliant with IEC 61076-2-101
  • Available in shielded versions, 360° all-metal shielded housing, excellent electromagnetic-interference immunity (EMI) performance
  • High-grade flame-retardant PA66 Insulator material, rated UL 94 V-0
  • Heavy gold plating on contact surfaces, ensures low Contact resistance (≤3mΩ) and extended mating life

Product Overview

The M12 circular sealed connector uses A-coding for mating-error prevention. This configuration is a malepanel-mount plug (solder termination), providing excellent mechanical stability and electrical continuity for durable, reliable connections in harsh industrial environments.

Key Technical specifications

Rated voltage 250V / 60V / 30V
Rated current 4A / 2A / 1.5A
Degree of protection IP67, when mated
Operating temperature Connector: -45℃ ~ +115℃
Contact resistance ≤ 3 mΩ
Insulation resistance ≥ 100 MΩ
Mechanical endurance ≥ 500 mating cycles
Rated impulse voltage 500V / 800V / 1500V / 2500V
Shell material nickel-plated brass / nickel-plated zinc alloy
Insulator material PA66 (UL 94-V0)
Contact material gold-plated brass

Dimensional drawing

Product Part-number designation Breakdown

M12 Product type: M12 circular connector
A04 A Coding / 04 contacts (Number of contacts)
FP panel-mount plug (solder termination)

Ordering information

Model Product type Coding Number of contacts Wiring Method
M12-A04-FP all-metal field-wireable plug, male contacts, shielded, solder termination, straight A 04 contacts Solder
M12-A05-FP Same as above A 05 contacts Solder
M12-A08-FP Same as above A 08 contacts Solder
M12-A12-FP Same as above A 12 contacts Solder
M12-A17-FP Same as above A 17 contacts Solder

Technical specifications are subject to final engineering confirmation.
