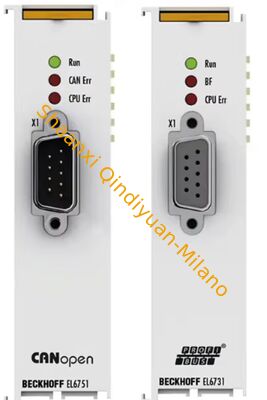

Beckhoff EL6751 Digital Input Module with CANopen Communication Interface 500V Electrical Isolation and Up to 127 CANopen Slaves

1 pcs
MOQ
Negotiable
Price
Beckhoff EL6751 Digital Input Module with CANopen Communication Interface 500V Electrical Isolation and Up to 127 CANopen Slaves
Features Gallery Product Description Chat Now
Features
Specifications
Productname: Programmable Logic Controller
Color: Normal
Supply Voltage Type: AC
Power_Supply: 24 V DC
Number_of_Outputs: 10
Communicationprotocol: Modbus, Ethernet/IP, Profibus
Output Method: Relay
Display: Optional LCD Or LED Indicators
Part Type: Sysmac CPM2A
Processortype: Microprocessor-based
Output Points: 20
Actual Value: Negotiabled Price
Responsetime: Less Than 10 Ms
Power Supply Voltage: AC240-360V.
Dimensions: 90 X 100 X 75 Mm
Highlight:

CANopen Communication Interface Digital Input Module

,

500V Electrical Isolation PLC Input Module

,

Up to 127 CANopen Slaves Beckhoff EL6751
Basic Infomation
Brand Name: Beckhoff
Model Number: EL6751
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description
Beckhoff EL6751 Digital Input Module
Technical Specifications
Parameter Specification
Number of Channels 1 CANopen Communication Interface
Communication Role Master (EL6751) / Slave (EL6751-0010), CANopen Manager
Transmission Rate 10/20/50/100/125/250/500/800/1000 kbaud
Maximum Number of Slaves Up to 127 CANopen slaves in master mode
Interface 9-pin D-Sub connector (CANopen compliant), 500V electrical isolation
Power Supply E-Bus power supply, typical current 230 mA
Physical Characteristics Dimensions: 26×100×52 mm; Weight: approx. 70 g; IP20; 35 mm DIN Rail Mount
Temperature Range Operating: -25℃ to +60℃; Storage: -40℃ to +85℃
Certifications CE, CCC, UL, ATEX, IECEx, DNV GL
Key Functions and Features
Flexible Dual Role Switching
  • Master Mode: Manages CANopen network with PDO/SDO communication, emergency messages, heartbeat/node protection
  • Slave Mode (EL6751-0010): Connects to third-party master network as CANopen slave
  • Supports direct connection to 127 slave stations in master mode
Powerful CANopen Protocol Support
  • All PDO Types: Event-driven, Time-driven, Synchronous, Polling
  • SDO parameter configuration and emergency message support
  • Online bus load monitoring and zero-cumulative jitter synchronization
  • RAW-CAN support for sending/receiving general CAN messages
Industrial-Grade Reliability
  • 500V electrical isolation for strong anti-interference capability
  • Status LEDs display real-time communication and fault status
  • Compatible with TwinCAT system manager configuration
  • Seamless integration with EtherCAT networks
Typical Application Scenarios
  • EtherCAT control systems integrating CANopen devices (servos, sensors, I/O modules)
  • Interoperability between new and old bus systems for EtherCAT-CANopen data exchange
  • Multi-protocol hybrid networking for distributed motion control and process automation
  • Robotics and non-standard equipment requiring flexible bus communication
